2690 (31AM73Q3766) - Troy-Bilt Storm Tracker 26" Track Drive Snow Thrower (2008) Drive System Parts Diagram

Storm Tracker 26" Track Drive Snow Thrower

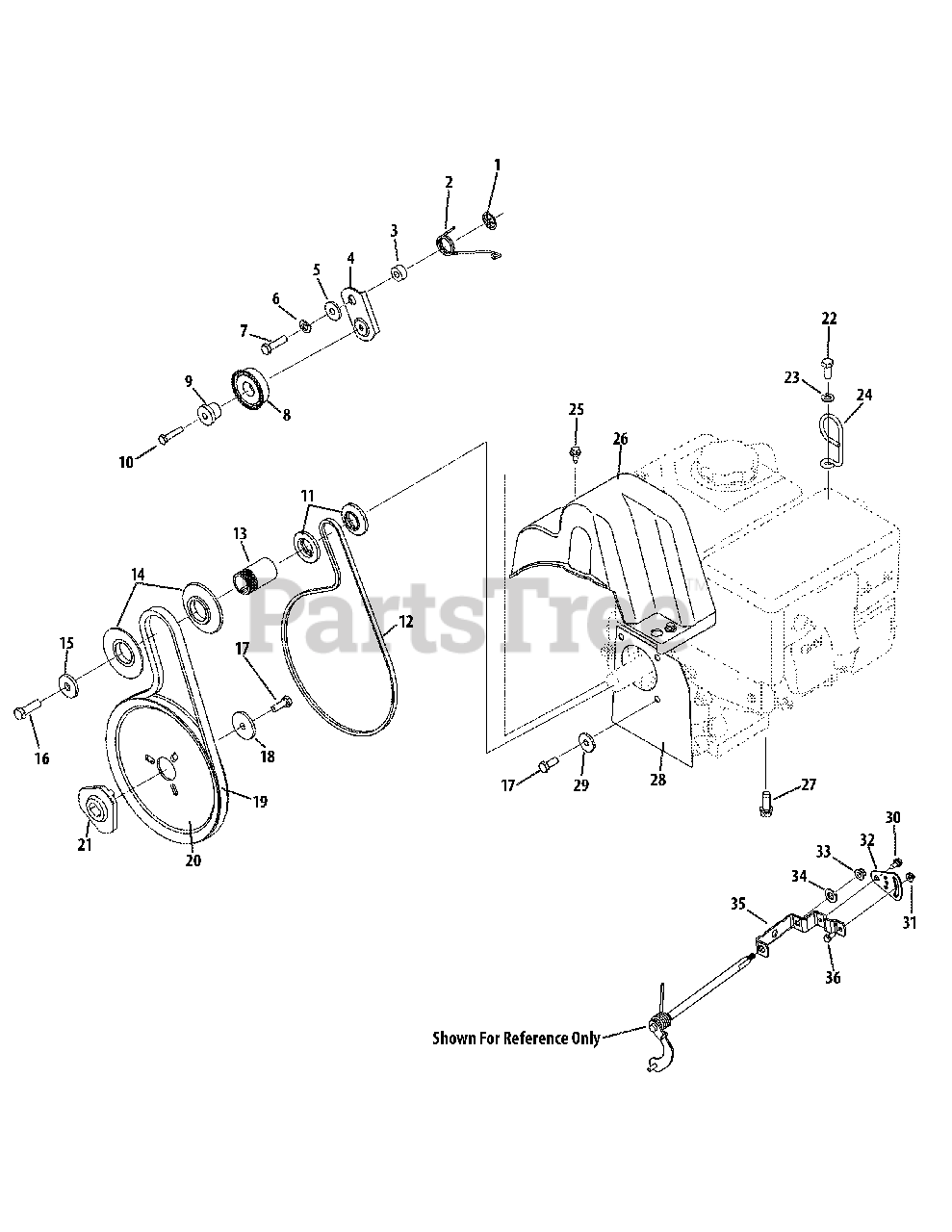

Drive System Parts Diagram

  • Title

1

Troy-Bilt 726-04012

Push-On Nut

$7.49

$

In Stock, Qty 11

0

2

Troy-Bilt 732-04308A

Torsion Spring, .850 ID x .333
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 750-04477A

Spacer, .340 x .750 x .330

$5.49

$

In Stock, only 4 left!

0

4

Troy-Bilt 790-00208C

Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 12

0

5

Troy-Bilt 748-04112B

Shldr. Spacer, .3175 ID x .500 x .0975

$4.49

$

In Stock, Qty 11

0

6

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 18

0

8

Troy-Bilt 684-04169

Idler Pulley

$34.99

$

In Stock, Qty 13

0

9

Troy-Bilt 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-0809

Hex Washer Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

11

Troy-Bilt 756-04252

Pulley Half, 3/8 -V x 1.7160 OD

$6.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, Qty 5

0

14

Troy-Bilt 756-04113

Pulley Half, 4L-V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

15

Troy-Bilt 736-0247

Flat Washer, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 14

0

16

Troy-Bilt 710-0191

Hex Screw, 3/8 -24 x 1.25

$4.99

$

In Stock, Qty 9

0

17

Troy-Bilt 710-1245B

Hex Lock Screw, 5/16-24 x .875

$8.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 736-0505

Flat Washer, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

19

Troy-Bilt 754-04050

Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 756-04109

Auger Pulley

$54.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 748-04053A

Adapter Pulley

$22.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 710-04022

Hex Screw, M8-1.25 x 20
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 736-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

26

Troy-Bilt 731-05353

Belt Cover
(Superseded to 731-05353B)

$

$

Not available

27

Troy-Bilt 710-0502A

Hex Washer Screw, 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 790-00289A

Cover Plate
(Superseded to 790-00289B-0637)

Variations

Troy-Bilt 790-00289A-0637

PLATE-COVER EXPORT - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-04184A

Shoulder Screw, .368 x .113 x 1/4-20

$6.99

$

In Stock, Qty 11

0

31

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 790-00217A

Speed Selector Pivot Bracket

Variations

Troy-Bilt 790-00217A-0637

Pivot Bracket - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

$9.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-3015

Flat Washer, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 790-00218A

Speed Selector Shift Bracket

Variations

Troy-Bilt 790-00218A-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 4 left!

0

$47.99

$

In Stock, only 4 left!

0

36

Troy-Bilt 710-0751

Hex Screw,1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0
