2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 400000001 - 499999999) (1974) Handle Control Parts List Parts Diagram

26" Snow Thrower

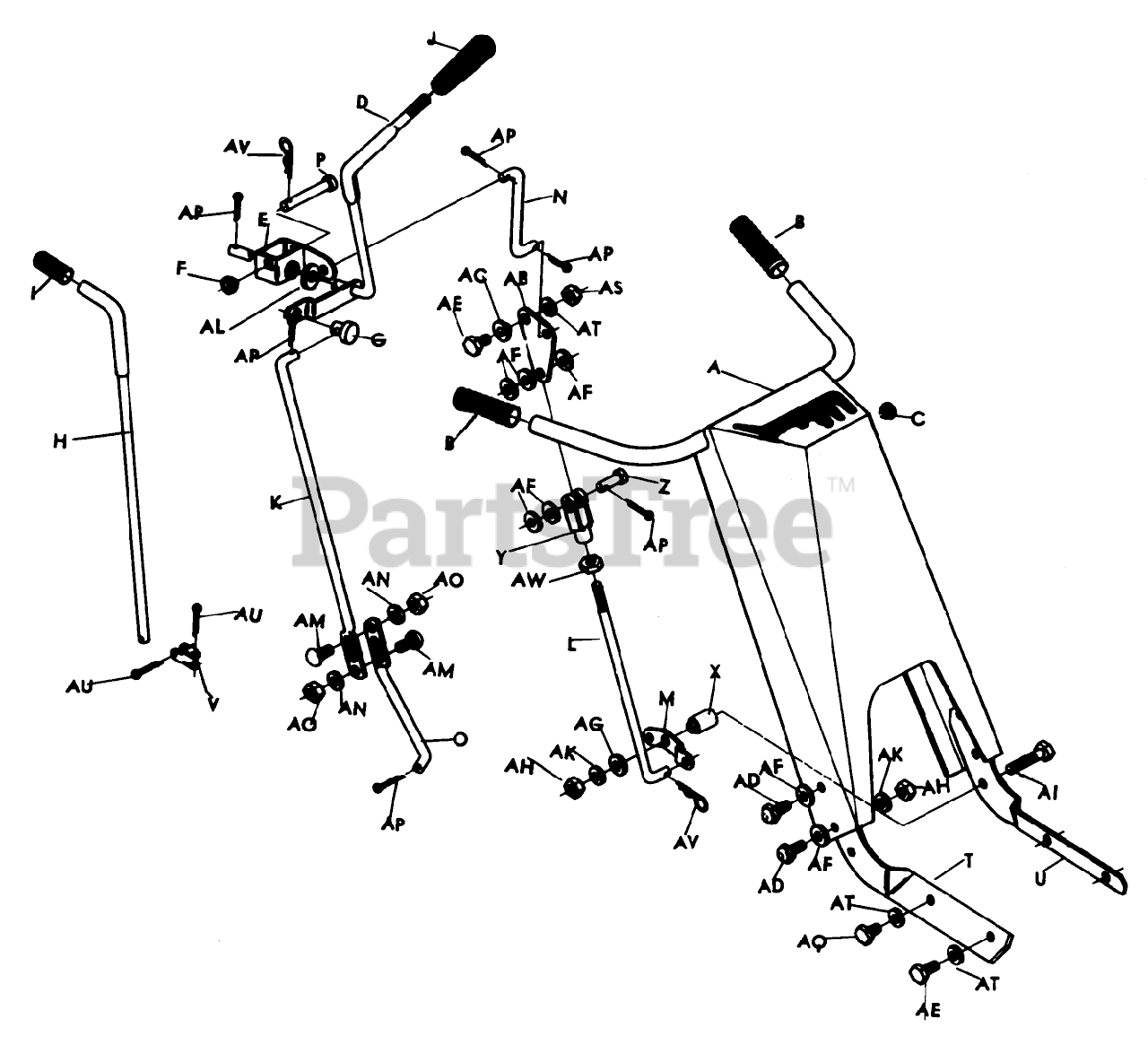

Handle Control Parts List Parts Diagram

  • Title

A

Lawn-Boy 18748

Handle Bar Assembly

$

$

Currently unavailable

B

Lawn-Boy 1183

See Supercession: 701446
(Superseded to 701446)

$

$

Not available

C

Lawn-Boy 12275

DISCONTINUED

$

$

Not available

D

Lawn-Boy 14755

DISCONTINUED

$

$

Not available

E

Lawn-Boy 14785

DISCONTINUED

$

$

Not available

F

Lawn-Boy 16066

See Supercession: 702547
(Superseded to 702547)

$

$

Not available

G

Lawn-Boy 17744

See Supercession: 742165
(Superseded to 742165)

$

$

Not available

H

Lawn-Boy 18741

See Supercession: 742176
(Superseded to 742176)

$

$

Not available

I

Lawn-Boy 18182

See Supercession: 704443
(Superseded to 704443)

$

$

Not available

J

Lawn-Boy 16002

See Supercession: 703625
(Superseded to 703625)

$

$

Not available

K

Lawn-Boy 14759

DISCONTINUED

$

$

Not available

L

Lawn-Boy 14758

DISCONTINUED

$

$

Not available

M

Lawn-Boy 14750

See Supercession: 704376
(Superseded to 704376)

$

$

Not available

N

Lawn-Boy 14757

Link

$

$

Currently unavailable

O

Lawn-Boy 14965

See Supercession: 704395
(Superseded to 704395)

$

$

Not available

P

Lawn-Boy 16057

DISCONTINUED

$

$

Not available

T

Lawn-Boy 14761

See Supercession: 704381
(Superseded to 704381)

$

$

Not available

U

Lawn-Boy 14762

See Supercession: 704382
(Superseded to 704382)

$87.99

$

Usually ships in 3-6 days

0

V

Lawn-Boy 13000

See Supercession: 700061
(Superseded to 700061)

$

$

Not available

X

Lawn-Boy 2044

DUP PART SEE $BOOK

$

$

Not available

Y

Lawn-Boy 2490

See Supercession: 704038
(Superseded to 704038)

$

$

Not available

Z

Lawn-Boy 3441

See Supercession: 702012
(Superseded to 702012)

$

$

Not available

AB

Lawn-Boy 14955

See Supercession: 704394
(Superseded to 704394)

$

$

Not available

AC

Lawn-Boy 14273

See Supercession: 702546
(Superseded to 702546)

$

$

Not available

AD

Lawn-Boy 1144

See Supercession: 703213
(Superseded to 703213)

$

$

Not available

AE

5/16-18 x 1 Hex. Hd. Cap Screw, Pl.

$

$

Not available

AF

3/8 Flat Washer, Pl.

$

$

Not available

AG

5/16 Flat Washer, Pl.

$

$

Not available

AH

3/8-16 Hex. Nut, Pl.

$

$

Not available

AI

3/8-16 x 2 1/4 Hex. Hd. Cap Screw, Pl.

$

$

Not available

AK

3/8 Lock Washer, Pl.

$

$

Not available

AL

7/16 S.A.E. Flat Washer, Pl.

$

$

Not available

AM

1/4-20 x 3/4 Carriage Bolt, Pl.

$

$

Not available

AN

1/4 Lock Washer, Pl.

$

$

Not available

AO

1/4-20 Hex. Nut, Pl.

$

$

Not available

AP

1/8 x 3/4 Cotter Pin, Pl.

$

$

Not available

AQ

5/16-18 x 3/4 Hex. Hd. Cap Screw, Pl.

$

$

Not available

AS

5/16-18 Cone Lock Nut, Pl.

$

$

Not available

AT

5/16 Lock Washer, Pl.

$

$

Not available

AU

Lawn-Boy 14895

See Supercession: 700170
(Superseded to 700170)

$3.49

$

Usually ships in 3-6 days

0

AV

Lawn-Boy 9678

See Supercession: 700257
(Superseded to 700257)

$

$

Not available

AW

3/8-16 Hex. Jam Nut, Pl.

$

$

Not available
