2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 300000001 - 399999999) (1973) LAWN-BOY SNOW THROWERS GEAR CASE ASSEMBLY PARTS & PARTS LIST MODEL 2680B Parts Diagram

26" Snow Thrower

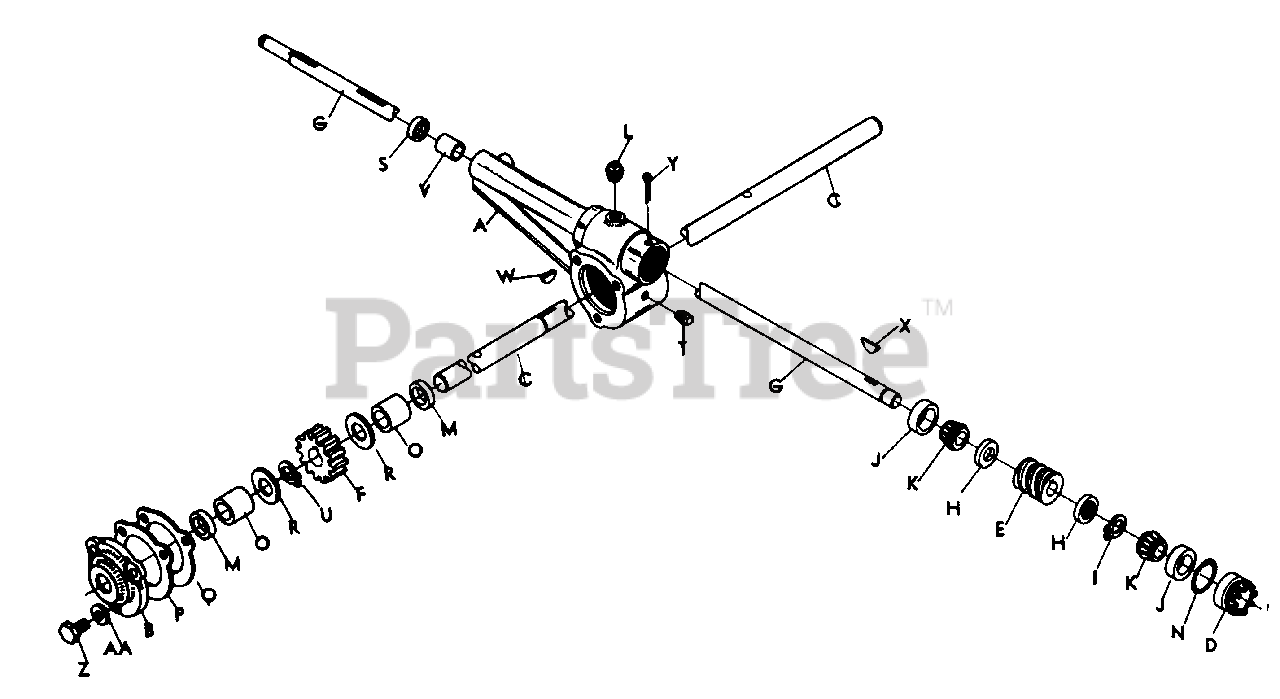

LAWN-BOY SNOW THROWERS GEAR CASE ASSEMBLY PARTS & PARTS LIST MODEL 2680B Parts Diagram

  • Title
A

Lawn-Boy 10394

Gear Case

$

$

Currently unavailable

B

Lawn-Boy 10395

Gear Case Cover

$

$

Not available

C

Lawn-Boy 10396

Output Shaft
(Superseded to 700431)

$

$

Not available

D

Lawn-Boy 1014

Adjustment Plug

$

$

Not available

E

Lawn-Boy 10397

Worm
(Superseded to 700420)

$

$

Not available

F

Lawn-Boy 10398

Worm Wheel
(Superseded to 700421)

$

$

Not available

G

Lawn-Boy 18725

Input Shaft

$

$

Not available

H

Lawn-Boy 6824

Spacer
(Superseded to 700416)

$

$

Not available

I

Lawn-Boy 1042

Retaining Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

J

Lawn-Boy 1044

Bearing Cup
(Superseded to 254-79)

$6.99

$

In Stock, Qty 12

0

K

Lawn-Boy 1140

Bearing Cone
(Superseded to 254-78)

$13.99

$

In Stock, Qty 7

0

L

Lawn-Boy 1034

Vent Plug Assembly
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

M

Lawn-Boy 1054

Seal
(Superseded to 700414)

$11.99

$

In Stock, only 3 left!

0

N

Lawn-Boy 1057

O-Ring

$

$

Not available

O

Lawn-Boy 3452

Bearing
(Superseded to 704691)

$36.99

$

Usually ships in 3-6 days

0

P

Lawn-Boy 6113

Gasket

$

$

Not available

Q

Lawn-Boy 6112

Gasket

$

$

Not available

R

Lawn-Boy 3453

Washer
(Superseded to 700415)

$5.49

$

Usually ships in 3-6 days

0

S

Lawn-Boy 1117

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

T

Lawn-Boy 1104

Pipe Plug
(Superseded to 700412)

$

$

Not available

U

Lawn-Boy 1043

Retaining Ring
(Superseded to 700410)

$

$

Not available

V

Lawn-Boy 1024

Bearing
(Superseded to 703207)

$

$

Not available

W

1/4 x 7/8 Woodruff Key-Alloy H.T.

$

$

Not available

X

3/16 x 5/8 Hypro Key

$

$

Not available

Y

1/8 x 3/4 Cotter Pin-Pl.

$

$

Not available

Z

5/16-18 x 1 Hex Hd. Capscrew-Pl.

$

$

Not available

AA

5/16 Lockwasher-Pl.

$

$

Not available
