2680 B (826) - Lawn-Boy 26" Snow Thrower (SN: 300000001 - 399999999) (1973) LAWN-BOY SNOW THROWERS AXLE & TRACTION DRIVE PARTS LIST MODEL 2680B Parts Diagram

26" Snow Thrower

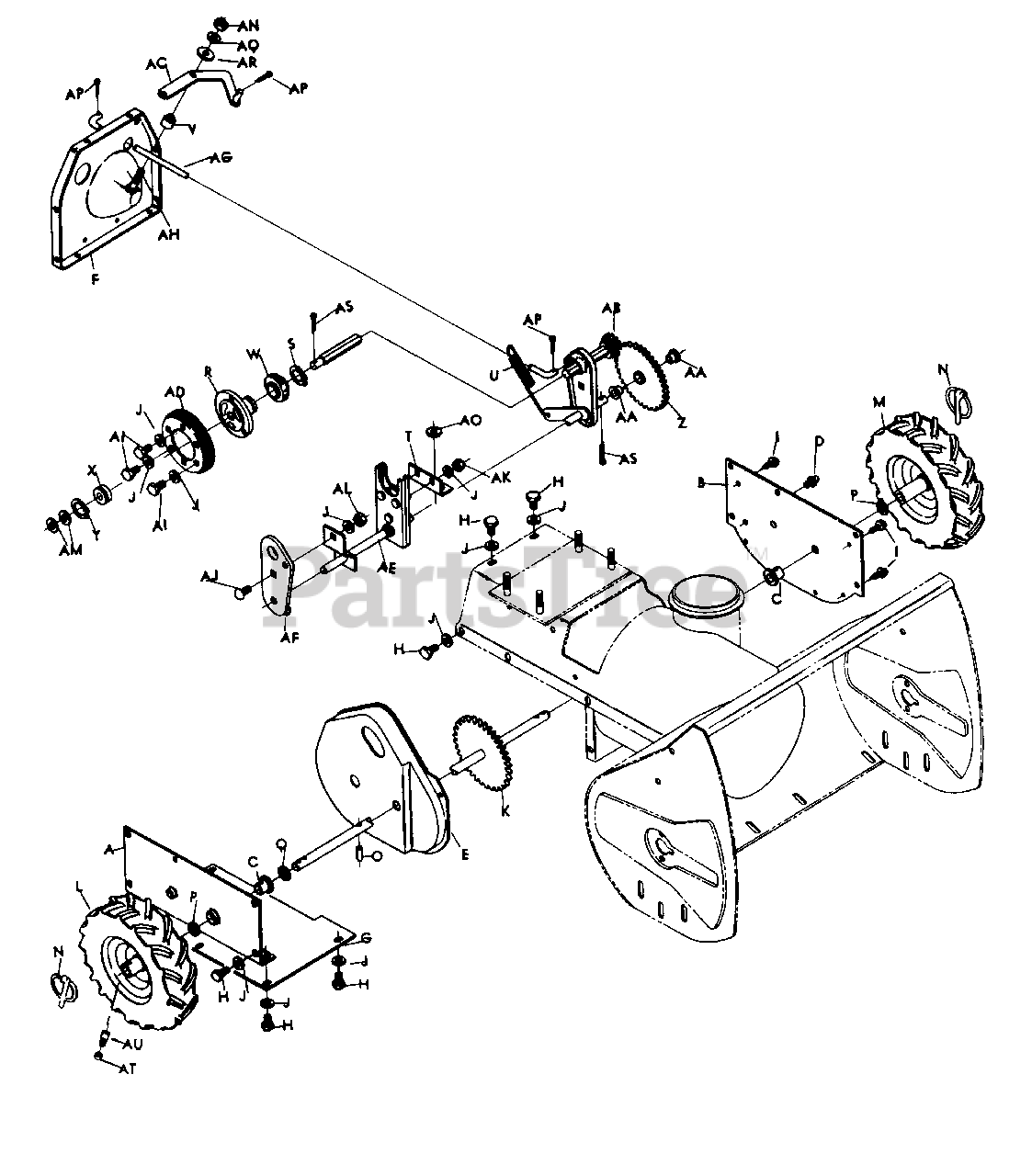

LAWN-BOY SNOW THROWERS AXLE & TRACTION DRIVE PARTS LIST MODEL 2680B Parts Diagram

  • Title

A

Lawn-Boy 14716

Main Frame Ass'y-Lower w/Bearing

$

$

Not available

B

Lawn-Boy 14714

Main Frame Ass'y-Lower w/Bearing
(Superseded to 742122)

$

$

Not available

C

Lawn-Boy 14725

Axle Bearing
(Superseded to 703613)

$

$

Not available

D

Lawn-Boy 1102

Grease Fitting
(Superseded to 700119)

$

$

Not available

E

Lawn-Boy 14899

Gear Case Cover
(Superseded to 704390)

$

$

Not available

F

Lawn-Boy 14779

Backing Plate Assembly

$

$

Not available

G

Lawn-Boy 14916

Inspection Cover
(Superseded to 704391)

$

$

Not available

H

5/16-18 x 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

I

Lawn-Boy 10531

No. 10 x 1/2 Hex Hd. Type "A" Sheet Metal Scr
(Superseded to 146278)

$

$

Not available

J

5/16 Lockwasher-Pl.

$

$

Not available

K

Lawn-Boy 18729

Axle Assembly

$

$

Not available

Lawn-Boy 18946

Tire & Wheel Assembly-R.H.
(Superseded to 742187)

$

$

Not available

Lawn-Boy 18947

Tire & Wheel Assembly-L.H.

$

$

Not available

N

Lawn-Boy 18909

Klik Pin
(Superseded to 740889)

$

$

Not available

O

1/8 x 1 1/4 Roll Pin

$

$

Not available

P

Lawn-Boy 1230

Washer

$

$

Not available

Q

Lawn-Boy 1020

Washer
(Superseded to 700495)

$

$

Not available

R

Lawn-Boy 14730

Friction Wheel Hub

$

$

Not available

S

Lawn-Boy 11143

Retaining Ring

$

$

Not available

T

Lawn-Boy 14752

Shifter Slide
(Superseded to 704377)

$

$

Not available

U

Lawn-Boy 11707

Spring
(Superseded to 703377)

$31.99

$

In Stock, only 1 left!

0

V

Lawn-Boy 6190

Pivot Bushing
(Superseded to 703312)

$

$

Not available

W

Lawn-Boy 11081

Bearing
(Superseded to 703372)

$

$

Not available

X

Lawn-Boy 17320

Bearing
(Superseded to 741022)

$

$

Not available

Y

Lawn-Boy 1764

Retaining Ring
(Superseded to 32120-84)

$0.99

$

Usually ships in 3-6 days

0

Z

Lawn-Boy 14741

Countershaft Gear Assembly
(Superseded to 704375)

$

$

Not available

AA

Lawn-Boy 11547

Bushing
(Superseded to 703373)

$14.99

$

Usually ships in 3-6 days

0

AB

Lawn-Boy 14807

Traction Drive Shaft Assembly
(Superseded to 742127)

$

$

Not available

AC

Lawn-Boy 14747

Bellcrank Assembly
(Superseded to 741268)

$

$

Not available

AD

Lawn-Boy 18915

Friction Wheel Roller
(Superseded to 741316)

$

$

Not available

AE

Lawn-Boy 23186

Traction Drive Support Arm Ass'y
(Superseded to 742655)

$

$

Not available

AF

Lawn-Boy 24180

Traction Drive Support Arm
(Superseded to 742655)

$

$

Not available

AG

Lawn-Boy 14756

Link

$

$

Not available

AH

3/8-16 x 1 3/4 Hex Hd. Capscrew-Pl.

$

$

Not available

AI

5/16-18 x 1/2 Hex Hd. Capscrew-Pl.

$

$

Not available

AJ

5/16-18 x 1/2 Carriage Bolt-Pl.

$

$

Not available

AK

5/16-18 Hex Cone Locknut-Pl.

$

$

Not available

AL

5/16-18 Hex Nut-Pl.

$

$

Not available

AM

Lawn-Boy 11412

Washer
(Superseded to 700317)

$6.49

$

In Stock, only 1 left!

0

AN

3/8-16 Cone Locknut-Pl.

$

$

Not available

AO

5/16 SAE Flat Washer

$

$

Not available

AP

1/8 x 3/4 Cotter Pin-Pl.

$

$

Not available

AQ

3/8 Lockwasher-Pl.

$

$

Not available

AR

Lawn-Boy 6694

Washer
(Superseded to 700852)

$

$

Not available

AS

1/8 x 1 Cotter Pin-Pl.

$

$

Not available

AT

Lawn-Boy 3823

Valve Cap
(Superseded to 704061)

$

$

Not available

AU

Lawn-Boy 10631

Valve Stem
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0
