268 K - Husqvarna Cut-Off Saw (1997-01) Carburetor Assembly Parts Diagram

Cut-Off Saw

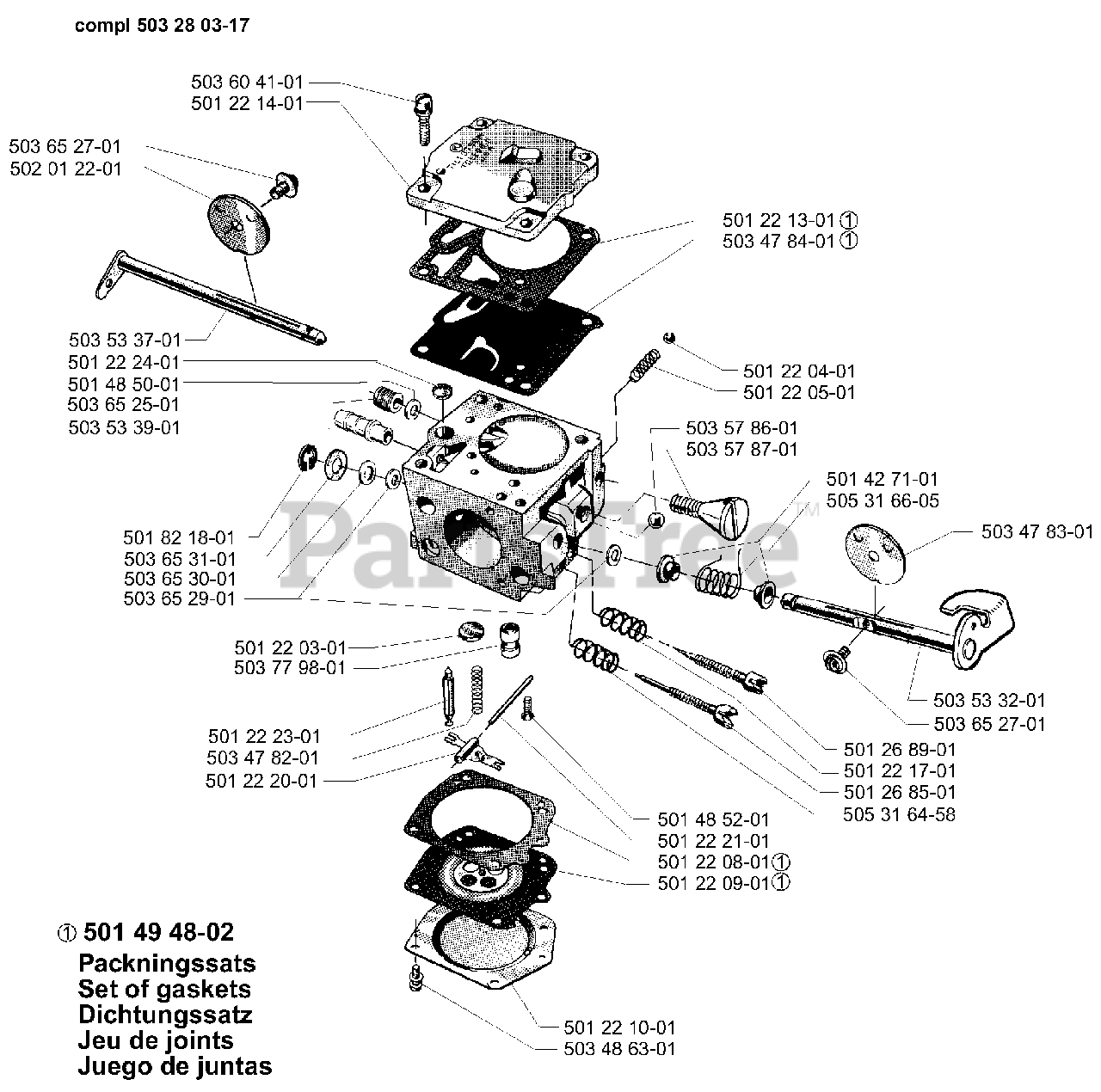

Carburetor Assembly Parts Diagram

  • Title
503280317

Husqvarna 503280317

CARBURETOR

$

$

Not available

503604101

Husqvarna 503604101

SCREW
(Superseded to 501221501)

$4.99

$

In Stock, Qty 7

0

501221401

$34.99

$

Usually ships in 3-10 days

0

503652701

$5.99

$

In Stock, Qty 8

0

502012201

Husqvarna 502012201

CHOKE FLAP

$

$

Not available

503533701

Husqvarna 503533701

CHOKE SHAFT

$26.99

$

Usually ships in 3-10 days

0

501222401

Husqvarna 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

501485001

Husqvarna 501485001

NO LONGER AVAILABLE

$3.49

$

Usually ships in 3-10 days

0

503652501

$

$

Not available

503533901

$11.99

$

Usually ships in 3-10 days

0

501821801

Husqvarna 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

503653101

Husqvarna 503653101

USE 506291001
(Superseded to 506 29 10-01)

$

$

Not available

503653001

$2.23

$

Usually ships in 3-10 days

0

503652901

$

$

Not available

501220301

Husqvarna 501220301

PLUG WELCHA, F

$

$

Not available

503779801

$26.99

$

Usually ships in 3-10 days

0

501222301

$10.99

$

In Stock, only 1 left!

0

503478201

$

$

Not available

501222001

$5.99

$

Usually ships in 3-10 days

0

501494802

Husqvarna 501494802

DIAPHRAGM SET

$20.99

$

In Stock, only 4 left!

0

501427101

Husqvarna 501427101

Choke Shaft

$

$

Not available

505316605

$6.99

$

Usually ships in 3-10 days

0

503478301

Husqvarna 503478301

SHUTTER
(Superseded to 505316114)

$

$

Not available

503533201

Husqvarna 503533201

THROTTLE SHAFT & LEVER

$34.99

$

Usually ships in 3-10 days

0

503652701

$5.99

$

In Stock, Qty 8

0

501268901

$

$

Not available

501221701

$3.49

$

In Stock, Qty 8

0

501268501

Husqvarna 501268501

IDLE ADJ. SCREW

$20.99

$

Usually ships in 3-10 days

0

505316458

Husqvarna 505316458

PRESSURE SPRING

$

$

Not available

501485201

$3.49

$

Usually ships in 3-10 days

0

501222101

$7.99

$

In Stock, only 1 left!

0

501220801

Husqvarna 501220801

GASKET, METERING SIDE

$24.99

$

Usually ships in 3-10 days

0

501220901

Husqvarna 501220901

METERING DIAPHRAGM

$17.99

$

In Stock, Qty 7

0

501221301

Husqvarna 501221301

GASKET, PUMP SIDE

$4.99

$

In Stock, only 2 left!

0

503478401

$

$

Not available

501220401

$10.37

$

Usually ships in 3-10 days

0

501220501

$4.99

$

Usually ships in 3-10 days

0

503578601

$4.99

$

Usually ships in 3-10 days

0

503578701

$7.49

$

Usually ships in 3-10 days

0

501221001

$4.99

$

In Stock, Qty 5

0

503486301

Husqvarna 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0
