268 - International Harvester Snow Blower (1977 - 1983) Electric Start Parts Diagram

Snow Blower

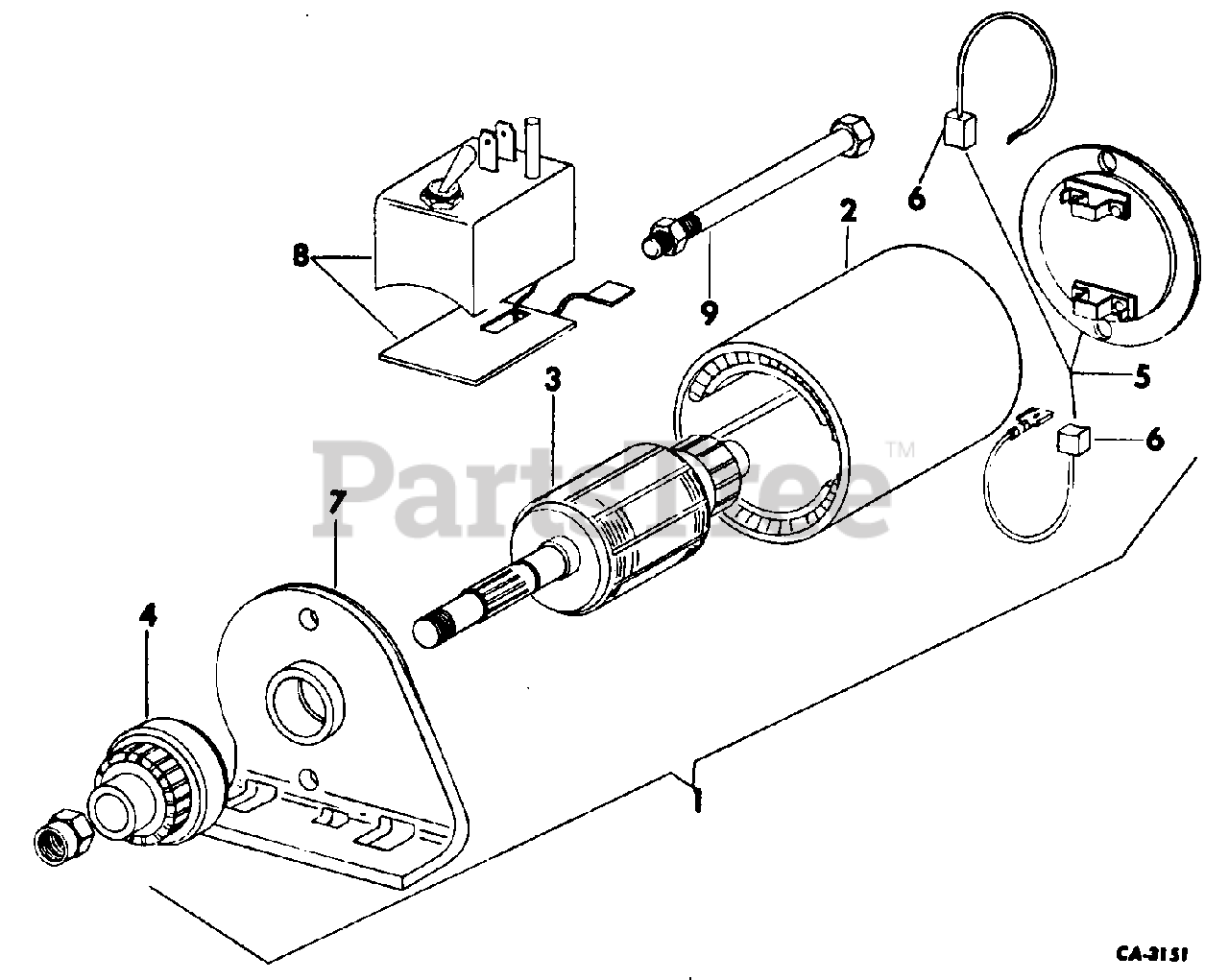

Electric Start Parts Diagram

  • Title

Cub Cadet IH-144616-C91

PARTS ACCESSORY, ELECTRIC START 110V

Note: (FOR ENGINES W/ALUMINUM GEAR S/N 9301 & ABOVE)

$

$

Not available

Cub Cadet IH-548985-R91

PARTS ACCESSORY, ELECTRIC START 110V

Note: (FOR ENGINES W/STEEL GEAR S/N 9300 & BELOW)

$

$

Not available

1

Cub Cadet IH-56838-C91

START MOTOR ASSY

Note: (USED W/IH-548985-R91)

$

$

Not available

1

Cub Cadet IH-107034-C91

MOTOR & DRIVE ASSY

Note: (USED W/IH-144616-C91)

$

$

Not available

2

Cub Cadet IH-56840-C1

HOUSING, STARTER

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

2

Cub Cadet IH-107044-C1

HOUSING, STARTER

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

3

Cub Cadet IH-56841-C1

ARMATURE

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

3

Cub Cadet IH-107043-C1

ARMATURE

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

4

Cub Cadet IH-56842-C1

DRIVE, STARTER

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

4

Cub Cadet IH-61857-C1

DRIVE ASSY
(Superseded to BS-696535)

Note: (USED W/IH-144616-C91)

$36.99

$

Usually ships in 2-12 days

0

5

Cub Cadet IH-56843-C91

CAP ASSY, COMMUTATOR END

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

5

Cub Cadet IH-107041-C1

CAP ASSY, COMMUTATOR END

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

6

Cub Cadet IH-56844-C1

BRUSH, KIT

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

6

Cub Cadet IH-107042-C1

BRUSH, KIT

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

7

Cub Cadet IH-56845-C1

CAP DRIVE END

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

7

Cub Cadet IH-56217-C1

SCREW, 5/16-18 X 11/16 HEX SEM

$

$

Currently unavailable

Cub Cadet IH-107046-C1

CAP ASSY, DRIVE END

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

8

Cub Cadet IH-56846-C1

RECTIFIER & BRUSH

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

Cub Cadet IH-56847-C1

CORD, EXTENSION

Note: (USED W/IH-548985-R91)

$

$

Not available

9

Cub Cadet IH-56839-C1

SCREW, WASHER & NUT

Note: (USED W/IH-548985-R91)

$

$

Currently unavailable

9

Cub Cadet IH-107045-C1

BOLT. THRU

Note: (USED W/IH-144616-C91)

$

$

Currently unavailable

Cub Cadet IH-539859-R1

GUARD, RING GEAR
(Superseded to BS-395405)

Note: (USED W/IH-144616-C91)

$

$

Not available

Cub Cadet IH-539929-R1

SCREW, HEX-HD

Note: (USED W/IH-144616-C91)

$

$

Not available

Cub Cadet IH-107047-C1

CORD, LINE

$

$

Currently unavailable

Cub Cadet IH-28591-R1

SCREW, 8-18 X 3/4 HWH TAP

$

$

Currently unavailable
