268 - International Harvester Snow Blower (1977 - 1983) Chute Control & Connections (Up to 1972 W/Product ID No. 268U1111) Parts Diagram

Snow Blower

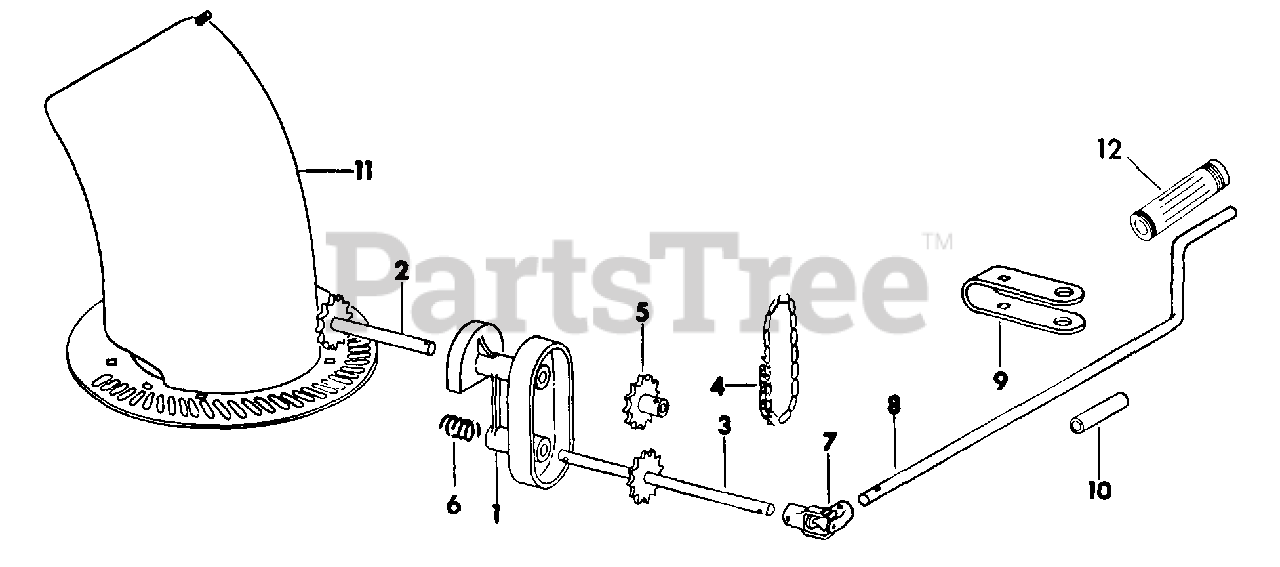

Chute Control & Connections (Up to 1972 W/Product ID No. 268U1111) Parts Diagram

  • Title
1

Cub Cadet IH-548987R1

SUPPORT, BEARING

$

$

Currently unavailable

Cub Cadet IH-14994-R1

BOLT, 5/16 X 3/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-62415-C2

SPROCKET - 12 TEETH

Note: (REPLACES IH-397041-R1)

$

$

Not available

3

Cub Cadet IH-548989-R1

SPROCKET AND SHAFT - 12 TEETH

$

$

Currently unavailable

4

CHAIN, DRIVE

$

$

Not available

5

Cub Cadet IH-548990-R1

SPROCKET - 12 TEETH

$

$

Currently unavailable

$

$

Not available

7

Cub Cadet IH-397043-R1

UNIVERSAL JOINT
(Superseded to 684-04350)

$29.99

$

In Stock, Qty 5

0

Cub Cadet IH-103396

PIN, 5/32 X 1 COT.

$

$

Currently unavailable

8

Cub Cadet IH-548988-R1

HANDLE, CHUTE CONTROL

$

$

Currently unavailable

9

Cub Cadet IH-549057-R1

BRACKET, CHUTE CONTROL

$

$

Currently unavailable

Cub Cadet IH-15038-R1

BOLT, 5/16-18 X 1-1/2 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-592639-R1

NUT, 5/16-18 HEX LOCK

$

$

Not available

10

Cub Cadet IH-549653-R1

SLEEVE, CONTROL HANDLE

$

$

Currently unavailable

11

CHUTE, CONTROL

Note: (REFER TO BLOWER HOUSING & ROTORS LISTING)

$

$

Not available

12

Cub Cadet IH-386295-R1

GRIP, CHUTE CONTROL HANDLE

$

$

Not available

$

$

Currently unavailable

Cub Cadet IH-1306D

CONNECTING LINK
(Superseded to 913-0723)

$

$

Not available

$

$

Not available
