268 - International Harvester Snow Blower (1977 - 1983) Belts, Idler & Related Parts (W/ID No. 3080002U008001 & Up) Parts Diagram

Snow Blower

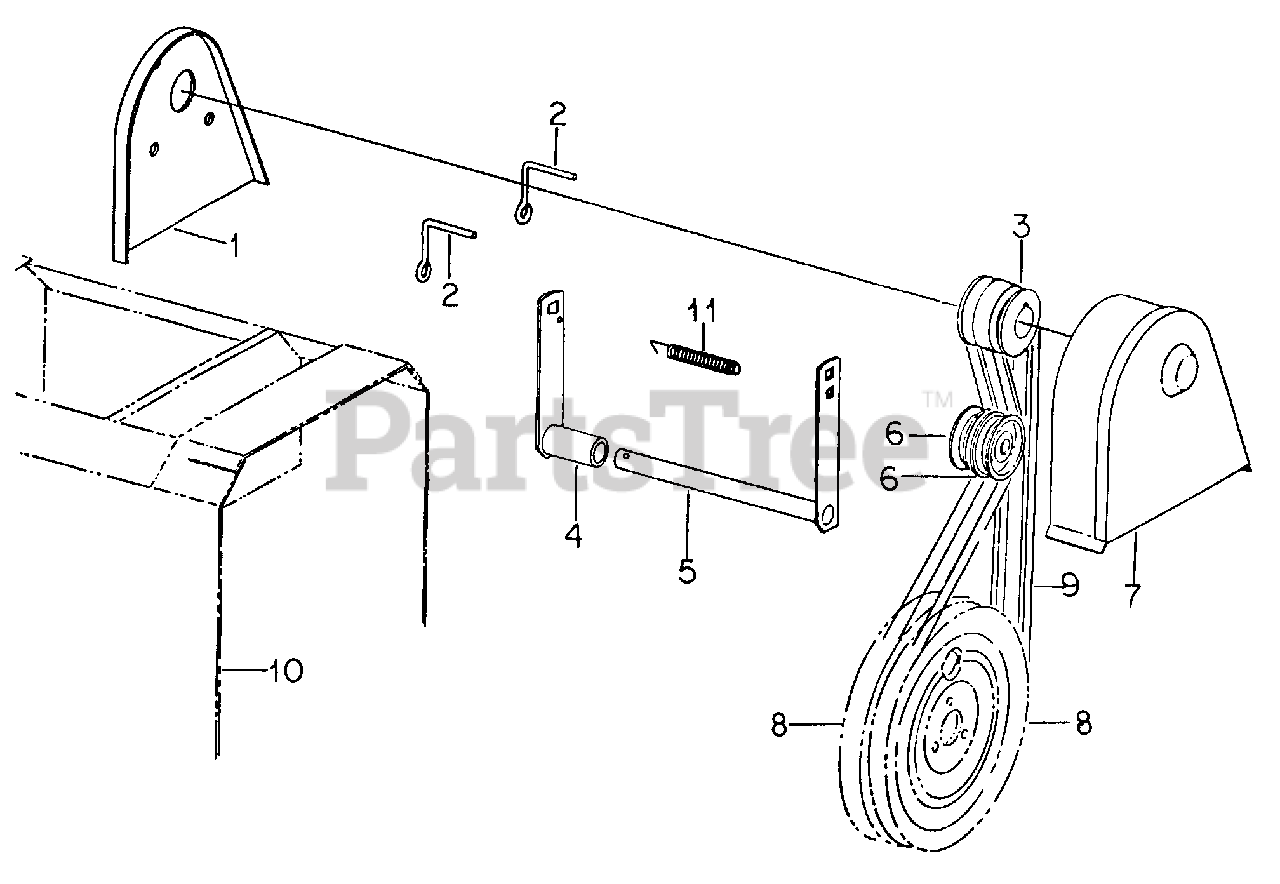

Belts, Idler & Related Parts (W/ID No. 3080002U008001 & Up) Parts Diagram

  • Title

1

Cub Cadet IH-549063-R1

PLATE, BELT GUARD BACK

$

$

Currently unavailable

2

Cub Cadet IH-61762-C1

GUIDE, BELT

$

$

Currently unavailable

Cub Cadet IH-181336

SCREW, 5/16-24 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q399

WASHER, 11/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

3

Cub Cadet IH-61761-C1

SHEAVE, ENGINE DRIVEN

$

$

Currently unavailable

Cub Cadet IH-131046

WASHER, 3/4 ZND REG LOCK

$

$

Currently unavailable

Cub Cadet IH-219758

NUT, 3/4-16 ZND HEX. LOCK

$

$

Currently unavailable

Cub Cadet IH-2390N

KEY, 1/4 X 1-3/4 SQ PARALLEL

$

$

Currently unavailable

Cub Cadet IH-102570

SCREW, 1/4-20 X 3/8 HEX-SOC-HD CUP POINT SET

$

$

Not available

4

Cub Cadet IH-61774-C1

ARM, IDLER - SHORT

$

$

Currently unavailable

5

Cub Cadet IH-61773-C1

ARM, IDLER - LONG

$

$

Currently unavailable

Cub Cadet IH-103395

PIN, 5/32 X 3/4 COT.

$

$

Currently unavailable

6

Cub Cadet IH-386317-R1

PULLEY, IDLER

$

$

Not available

Cub Cadet IH-550796-R1

BOLT, 3/8-16 X 1-1/4 ZND SQ-NK CRG
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

Cub Cadet IH-124829

NUT, 3/8-16 ZND HEX. JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

7

Cub Cadet IH-61751-C1

PLATE, BELT GUARD FRONT

$

$

Currently unavailable

Cub Cadet IH-189324

SCREW, 5/16-24 X 4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 1 X 16 GA ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

8

SHEAVE

Note: (REFER TO MAIN DRIVE HOUSING, AXLE, DRIVE GEARS & RELATED PARTS LIST)

$

$

Not available

9

Cub Cadet IH-549714-R1

BELT, DRIVE

$

$

Not available

10

HOUSING, WELDED

Note: (REFER TO MAIN DRIVE HOUSING, AXLE, DRIVE GEARS & RELATED PARTS LISTING)

$

$

Not available

11

Cub Cadet IH-549035-R1

SPRING

$

$

Not available
