268 - International Harvester Snow Blower (1977 - 1983) Belt Control Lever, Idler (W/ID No. 268U1111 & 3080002U1111) Parts Diagram

Snow Blower

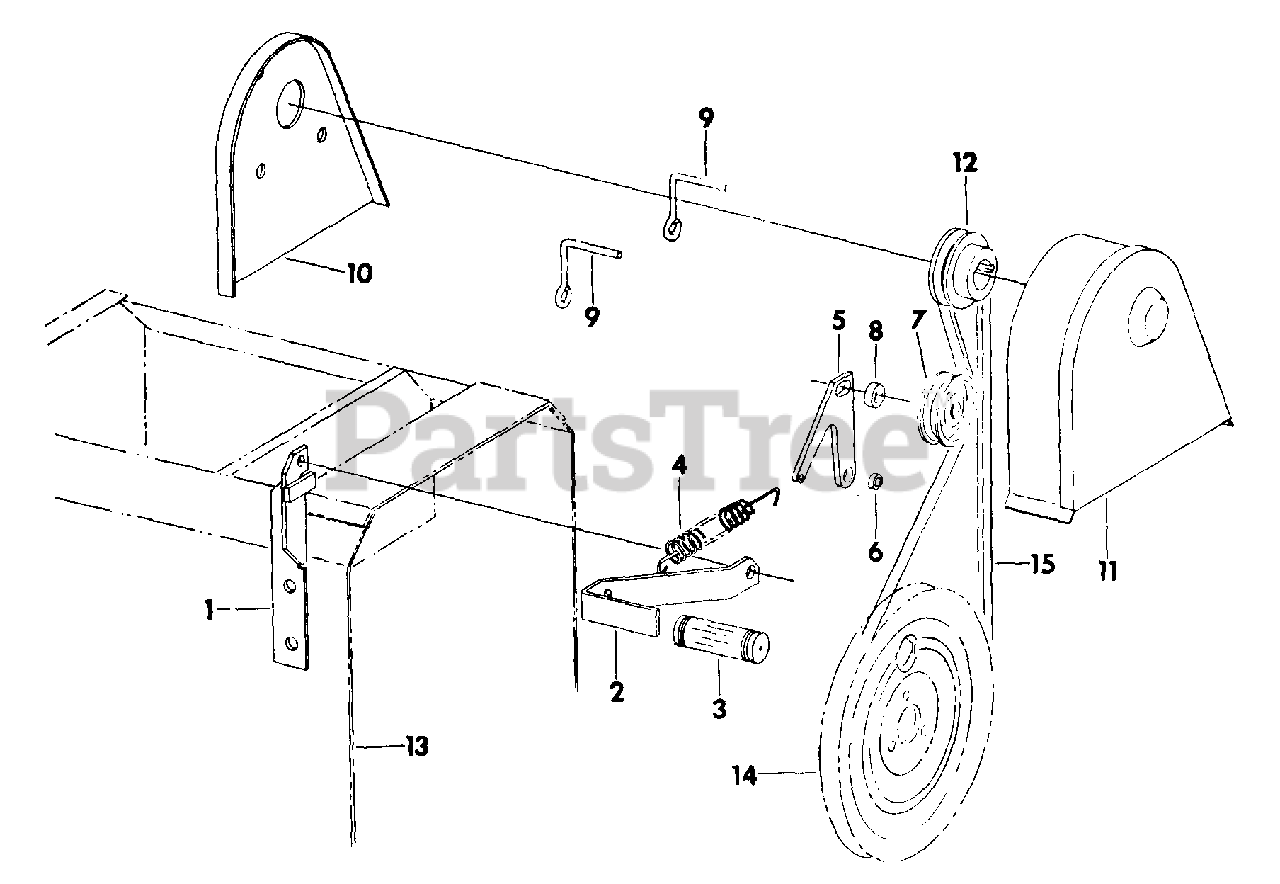

Belt Control Lever, Idler (W/ID No. 268U1111 & 3080002U1111) Parts Diagram

  • Title

1

Cub Cadet IH-549033-R1

BRACKET, BELT CONTROL

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

2

Cub Cadet IH-549034-R1

LEVER, BELT CONTROL

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 HEX. LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet IH-549657-R1

GRIP, RUBBER HANDLE

$

$

Currently unavailable

4

Cub Cadet IH-549035-R1

SPRING, BELT TENSION

$

$

Not available

5

Cub Cadet IH-549036-R1

BRACKET, IDLER

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

6

Cub Cadet IH-549037-R1

SPACER

$

$

Currently unavailable

7

Cub Cadet IH-386317-R1

PULLEY, IDLER

$

$

Not available

Cub Cadet IH-179847

SCREW, 3/8-16 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

8

Cub Cadet IH-549038-R1

SPACER, IDLER MOUNTING

$

$

Not available

9

Cub Cadet IH-549062-R1

GUIDE, BELT

$

$

Currently unavailable

Cub Cadet IH-181336

SCREW, 5/16-24 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q399

WASHER, 11/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

10

Cub Cadet IH-549063-R1

PLATE, BELT GUARD BACK

$

$

Currently unavailable

11

Cub Cadet IH-549064-R1

PLATE, BELT GUARD FRONT

$

$

Currently unavailable

Cub Cadet IH-181351

SCREW, 5/16-24 X 3 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q399

WASHER, 11/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

12

Cub Cadet IH-549065-R1

SHEAVE, ENGINE DRIVE

$

$

Currently unavailable

Cub Cadet IH-Q26

KEY, 1/4 X 1-1/4 SQ PARALLEL

$

$

Currently unavailable

Cub Cadet IH-102570

SCREW, 1/4-20 X 3/8 HDLS HEX-SOC-HD CUP-PT SET

$

$

Not available

13

HOUSING, WELDED

Note: (REFER TO BLOWER, HOUSING, & ROTOR LISTING)

$

$

Not available

14

SHEAVE

Note: (REFER TO MAIN DRIVE HOUSING, AXLE, DRIVE GEARS PARTS LIST)

$

$

Not available

15

Cub Cadet IH-549714-R1

BELT, DRIVE

$

$

Not available
