268 - International Harvester Snow Blower (1971 - 1976) Gear Case, Shafts & Connections (W/ID No. 3080002U008001 & Up) Parts Diagram

Snow Blower

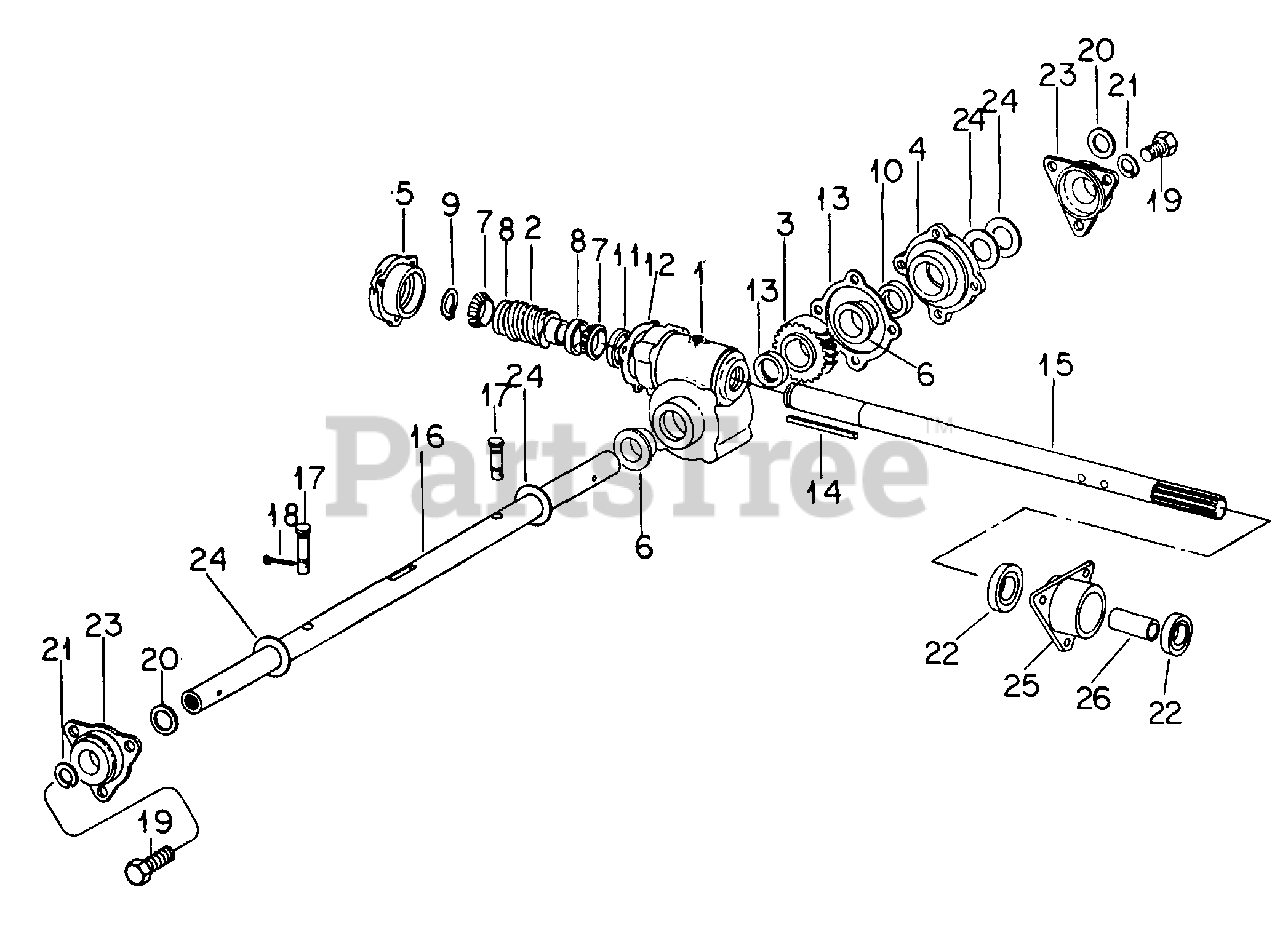

Gear Case, Shafts & Connections (W/ID No. 3080002U008001 & Up) Parts Diagram

  • Title

1

Cub Cadet IH-548966-R1

CASE, GEAR

$

$

Not available

Cub Cadet IH-445684

PLUG, 1/8-27 NPT SQ-HD AUTO. PIPE

$

$

Currently unavailable

Cub Cadet IH-444576

PLUG, 1/4-18 NPT SQ-HD AUTO. PIPE
(Superseded to 751-3001)

$

$

Not available

2

Cub Cadet IH-548967-R1

WORM, DOUBLE THREAD

$

$

Not available

3

Cub Cadet IH-548968-R1

GEAR, LH - 20 TEETH

$

$

Currently unavailable

4

Cub Cadet IH-548969-R1

CAP, BEARING

$

$

Currently unavailable

Cub Cadet IH-179795

SCREW, 1/4-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 REG LOCK

$

$

Currently unavailable

5

Cub Cadet IH-548970-R1

CAP, BEARING

$

$

Not available

Cub Cadet IH-179791

SCREW, 1/4-20 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 REG LOCK

$

$

Currently unavailable

6

Cub Cadet IH-386573-R1

BUSHING, BRONZE

$

$

Not available

7

Cub Cadet IH-675728-R91

BEARING ASSY, ROLLER CONE

$

$

Not available

Cub Cadet IH-548972-R1

WASHER, THRUST

$

$

Not available

8

Cub Cadet IH-675729-R1

BEARING, ROLLER CUP

$

$

Not available

9

Cub Cadet IH-21332-R1

RING, RETAINING

$

$

Not available

10

Cub Cadet IH-697494-R91

SEAL, OIL

$

$

Currently unavailable

11

Cub Cadet IH-549712-R1

SEAL, OIL

$

$

Not available

12

Cub Cadet IH-548973-R1

SHIM, GASKET - .010

$

$

Not available

12

Cub Cadet IH-57958-C1

SHIM, GASKET - .020

$

$

Not available

13

Cub Cadet IH-548974-R1

SHIM, GASKET - .010

$

$

Currently unavailable

13

Cub Cadet IH-548975-R1

SHIM, GASKET - .020

$

$

Not available

14

Cub Cadet IH-549734-R1

KEY, 3/16 X 1-15/16 SQ PARALLEL

$

$

Not available

15

Cub Cadet IH-61740-C1

SHAFT, BLOWER

$

$

Not available

Cub Cadet IH-124553

KEY, 1/4 X 1 SAE 15 WOODRUFF
(Superseded to 714-3013)

$

$

Not available

16

Cub Cadet IH-548979-R1

SHAFT, BLOWER

$

$

Not available

17

Cub Cadet IH-548983-R1

PIN, SHEAR

$

$

Not available

18

Cub Cadet IH-103395

PIN, 5/32 X 3/4 COT.

$

$

Currently unavailable

Cub Cadet IH-20555-R1

PIN, 3/16 X 1-1/2 LT COILED SPRING

$

$

Currently unavailable

19

Cub Cadet IH-179881

SCREW, 1/2-13 X 1 HEX-HD CAP

$

$

Currently unavailable

20

Cub Cadet IH-12026-R1

WASHER, 17/32 X 1-1/4 X 16 GA

$

$

Currently unavailable

21

Cub Cadet IH-103323

WASHER, 1/2 REG LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet IH-475627-R91

BEARING, BALL

$

$

Not available

23

Cub Cadet IH-56632-C1

BEARING, FLANGE

$

$

Currently unavailable

Cub Cadet IH-14994-R1

BOLT, 5/16 X 3/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet IH-548982-R1

WASHER, THRUST

$

$

Currently unavailable

25

Cub Cadet IH-61741-C1

SUPPORT, BLOWER SHAFT

$

$

Not available

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

26

Cub Cadet IH-61775-C1

SPACER, BEARING

$

$

Not available
