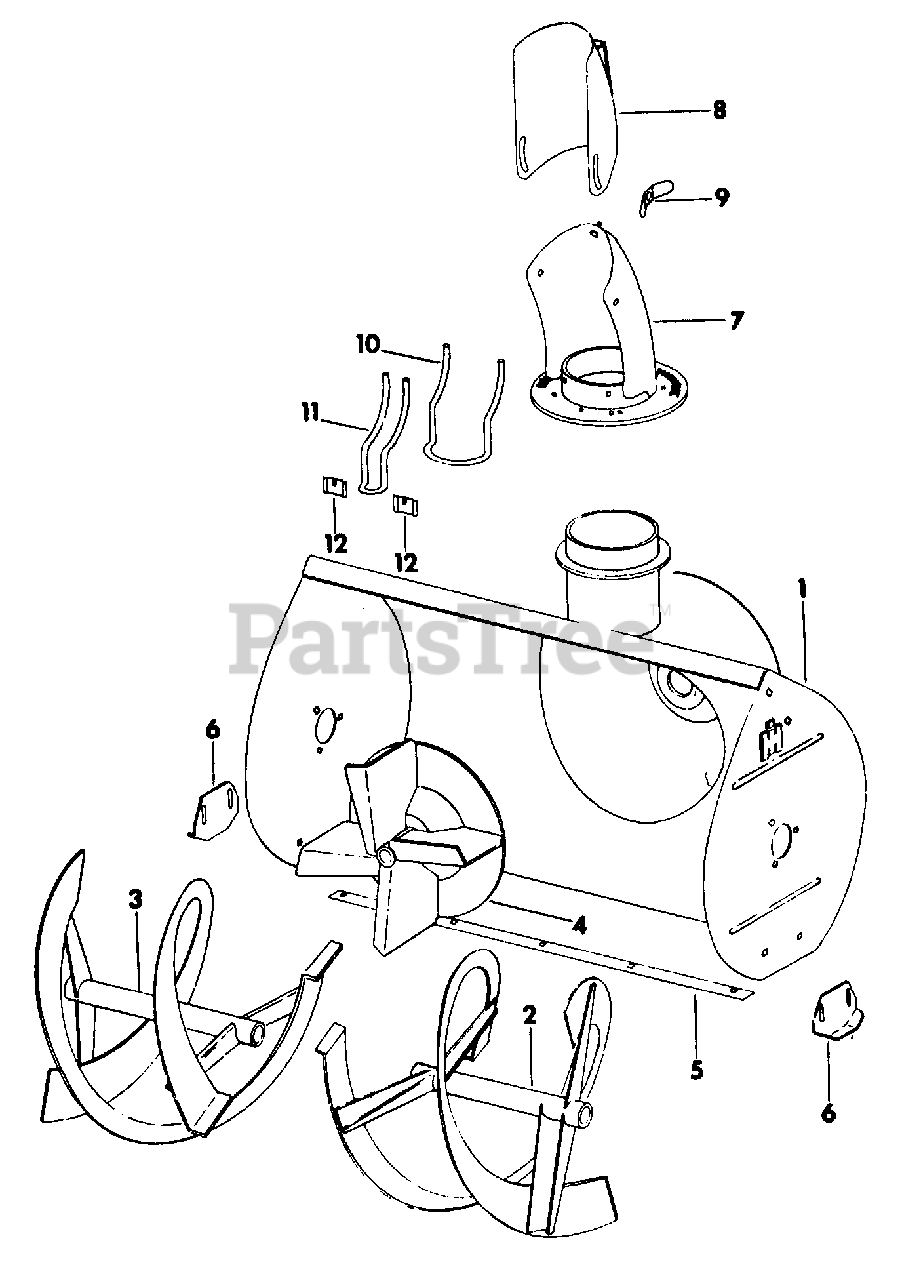

268 - International Harvester Snow Blower (1971 - 1976) Blower, Housing & Rotors (W/ID No. 268U1111 & 3080002U1111) Parts Diagram

Snow Blower

Blower, Housing & Rotors (W/ID No. 268U1111 & 3080002U1111) Parts Diagram

  • Title
1

Cub Cadet IH-58480-C1

HOUSING, WELDED

Note: (1972 & SINCE W/PRODUCT ID NO. 3080002U1111)

$

$

Currently unavailable

1

Cub Cadet IH-548965-R1

HOUSING

Note: (UP TO 1972 W/PRODUCT ID NO. 268U1111)

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-271432

FITTING, 1/8 STR DRIVE TYPE LUB

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-271432

FITTING, 1/8 STR DRIVE TYPE LUB

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-20122-R1

PIN, 1/4 X 1-1/2 MED COILED SPRING

$

$

Currently unavailable

5

Cub Cadet IH-548984-R1

BLADE, SCRAPER

$

$

Not available

Cub Cadet IH-14990-R1

BOLT 5/16 X 5/6 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-472146-R1

NUT, 5/16-18 CDP HEX. LOCK

$

$

Not available

$

$

Not available

Cub Cadet IH-14995-R1

BOLT, 3/8 X 3/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

7

$

$

Currently unavailable

Cub Cadet IH-15022-R1

BOLT, 5/16 X 1-1/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-Q399

WASHER, 11/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-173127

WASHER, 5/16 INT-EXT TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-472146-R1

NUT, 5/16-18 CDP HEX. LOCK

$

$

Not available

8

Cub Cadet IH-546196-R2

CAP W/CAUTION PRODUCT GRAPHIC, IH-73235-C2, DEFLECTOR

$

$

Currently unavailable

$

$

Currently unavailable

10

Cub Cadet IH-542845-R1

ROD, DEFLECTOR SIDE

$

$

Currently unavailable

11

Cub Cadet IH-543154-R1

ROD, DEFLECTOR CENTER

$

$

Not available

12

Cub Cadet IH-542842-R1

CLAMP, DEFLECTOR

$

$

Currently unavailable

Cub Cadet IH-14985-R1

BOLT, 1/4 X 1/2 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-397040-R1

CLIP, RETAINING - SNOW CHUTE

$

$

Currently unavailable

Cub Cadet IH-14985-R1

BOLT, 1/4 X 1/2 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX.

$

$

Currently unavailable
