268 - Husqvarna Chainsaw (SN: 19994500001 - 20014000000) CARBURETOR DETAILS Parts Diagram

Chainsaw

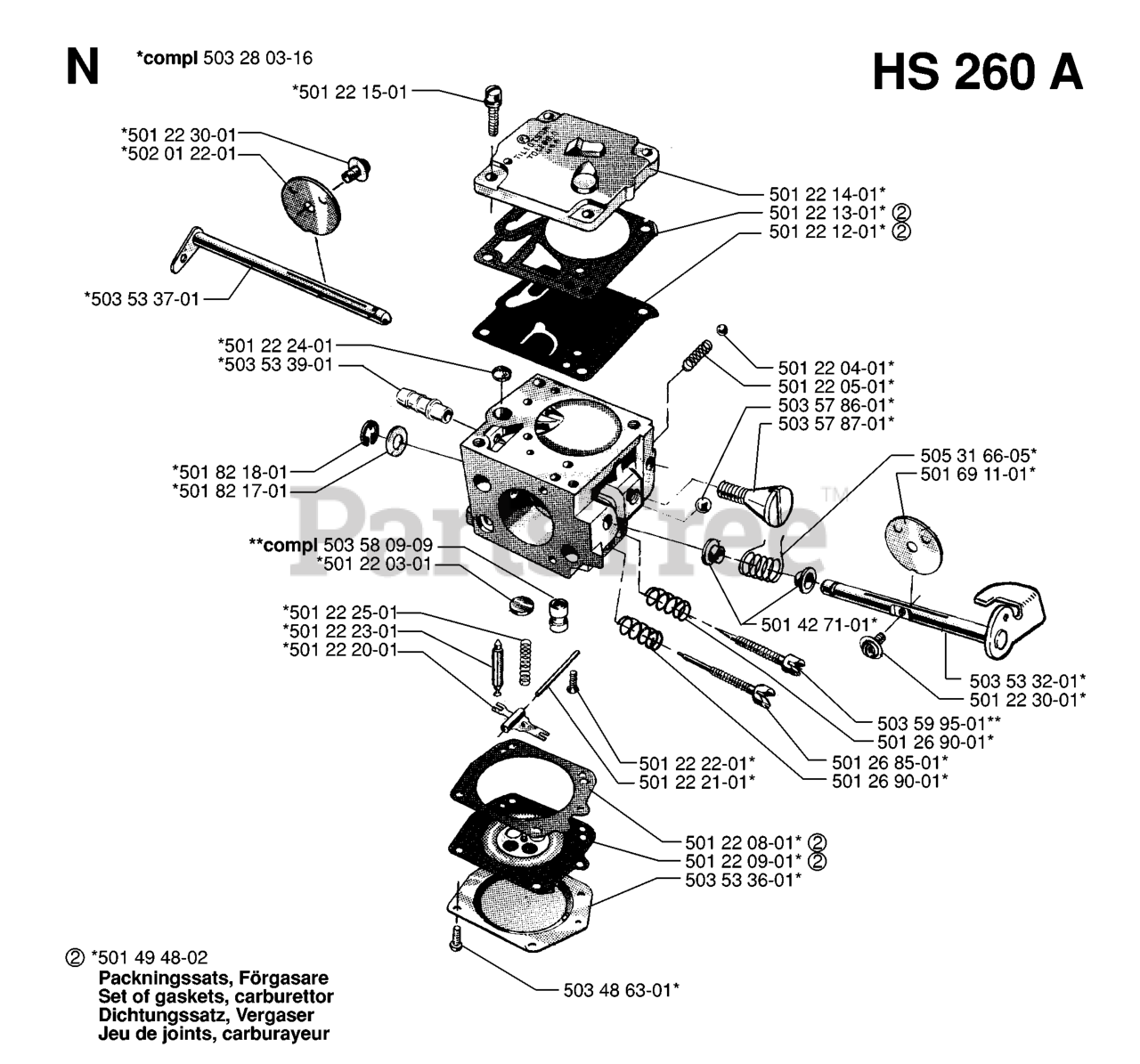

CARBURETOR DETAILS Parts Diagram

  • Title
501 22 04-01

$10.37

$

In Stock, only 1 left!

0

501 22 25-01

$4.99

$

In Stock, only 1 left!

0

503 53 36-01

Husqvarna 503533601

COVER
(Superseded to 501821901)

$

$

Not available

501 82 17-01

$3.49

$

In Stock, only 1 left!

0

503 53 39-01

$11.99

$

Usually ships in 3-10 days

0

503 28 03-16

Husqvarna 503280316

CARBURETOR HS260S TILLOTSON
(Superseded to 574331601)

$117.99

$

Usually ships in 3-10 days

0

501 22 05-01

$4.99

$

In Stock, only 1 left!

0

503 59 95-01

Husqvarna 503599501

HIGH SPEED NEEDLE
(Superseded to 501268901)

$

$

Not available

503 48 63-01

Husqvarna 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0

502 01 22-01

Husqvarna 502012201

CHOKE FLAP

$

$

Not available

501 69 11-01

Husqvarna 501691101

THROTTLE FLAP

$7.99

$

In Stock, Qty 7

0

501 22 14-01

$34.99

$

Usually ships in 3-10 days

0

501 82 18-01

Husqvarna 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

501 22 08-01

Husqvarna 501220801

GASKET, METERING SIDE

Note: 501 49 48-02 SET OF GASKETS

$4.99

$

Usually ships in 3-10 days

0

501 22 13-01

Husqvarna 501221301

GASKET, PUMP SIDE

Note: 501 49 48-02 SET OF GASKETS

$4.99

$

In Stock, only 3 left!

0

505 31 66-05

$6.99

$

Usually ships in 3-10 days

0

501 26 85-01

Husqvarna 501268501

IDLE ADJ. SCREW

$20.99

$

Usually ships in 3-10 days

0

501 42 71-01

$

$

Not available

503 53 32-01

Husqvarna 503533201

THROTTLE SHAFT & LEVER

$34.99

$

Usually ships in 3-10 days

0

501 26 90-01

$5.99

$

Usually ships in 3-10 days

0

501 22 24-01

Husqvarna 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

503 53 37-01

Husqvarna 503533701

CHOKE SHAFT

$26.99

$

Usually ships in 3-10 days

0

501 22 12-01

Husqvarna 501221201

FUEL PUMP DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$9.49

$

Usually ships in 3-10 days

0

501 22 09-01

Husqvarna 501220901

METERING DIAPHRAGM

Note: 501 49 48-02 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

501 22 22-01

$

$

Not available

501 22 21-01

$7.99

$

In Stock, only 1 left!

0

503 58 09-09

Husqvarna 503580909

CHECK VALVE KIT

$

$

Not available

501 22 20-01

$5.99

$

Usually ships in 3-10 days

0

501 22 03-01

$

$

Not available

501 22 23-01

$10.99

$

In Stock, only 1 left!

0

503 57 87-01

$7.49

$

Usually ships in 3-10 days

0

501 22 15-01

$4.99

$

In Stock, Qty 7

0

503 57 86-01

$4.99

$

Usually ships in 3-10 days

0

501 22 30-01

Husqvarna 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0
