268 - Husqvarna Chainsaw (SN: 19901800001 - 19910500000) ELECTRICAL Parts Diagram

Chainsaw

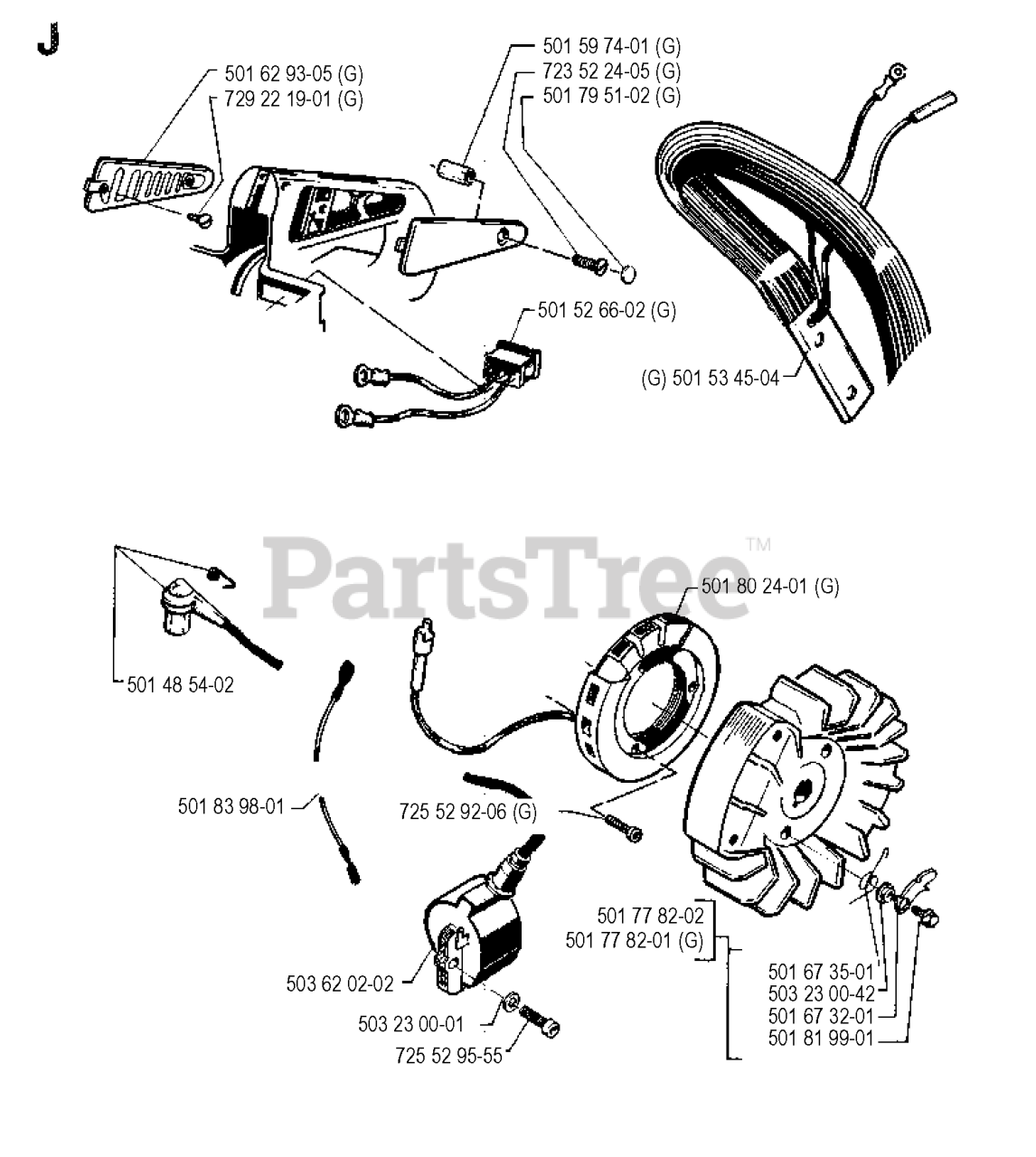

ELECTRICAL Parts Diagram

  • Title

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

Note: G

$5.99

$

In Stock, only 2 left!

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

Note: G

$

$

Not available

501 52 66-02

Husqvarna 501526602

SWITCH HEATING

Note: G

$

$

Not available

501 53 45-04

Husqvarna 501534504

FRONT HANDLE/G

Note: G

$

$

Not available

501 67 35-01

Husqvarna 501673501

SPRING

$7.49

$

In Stock, Qty 9

0

501 79 51-02

Husqvarna 501795102

WASHER

Note: G

$3.49

$

In Stock, only 1 left!

0

501 77 82-01

Husqvarna 501778201

FLYWHEEL F. GENERATOR NLA

Note: G

$

$

Not available

723 52 24-05

Husqvarna 723522405

SCREW
(Superseded to 724322405)

Note: G

$4.99

$

In Stock, only 3 left!

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, only 2 left!

0

503 62 02-02

Husqvarna 503620202

IGNITION MODULE
(Superseded to 503620203)

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 5

0

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$4.99

$

Usually ships in 3-10 days

0

725 52 95-55

Husqvarna 725529555

SCREW MC6S 4X20
(Superseded to 725529556)

$3.49

$

Usually ships in 3-10 days

0

501 59 74-01

Husqvarna 501597401

SPACER

Note: G

$

$

Not available

501 80 24-01

Husqvarna 501802401

GENERATOR

Note: G

$

$

Not available

729 22 19-01

Husqvarna 729221901

SCREW CSK B4X5

Note: G

$

$

Not available

501 77 82-02

Husqvarna 501778202

FLYWHEEL CPL

$

$

Not available

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0
