268 - Husqvarna Chainsaw (SN: 19901800001 - 19910500000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

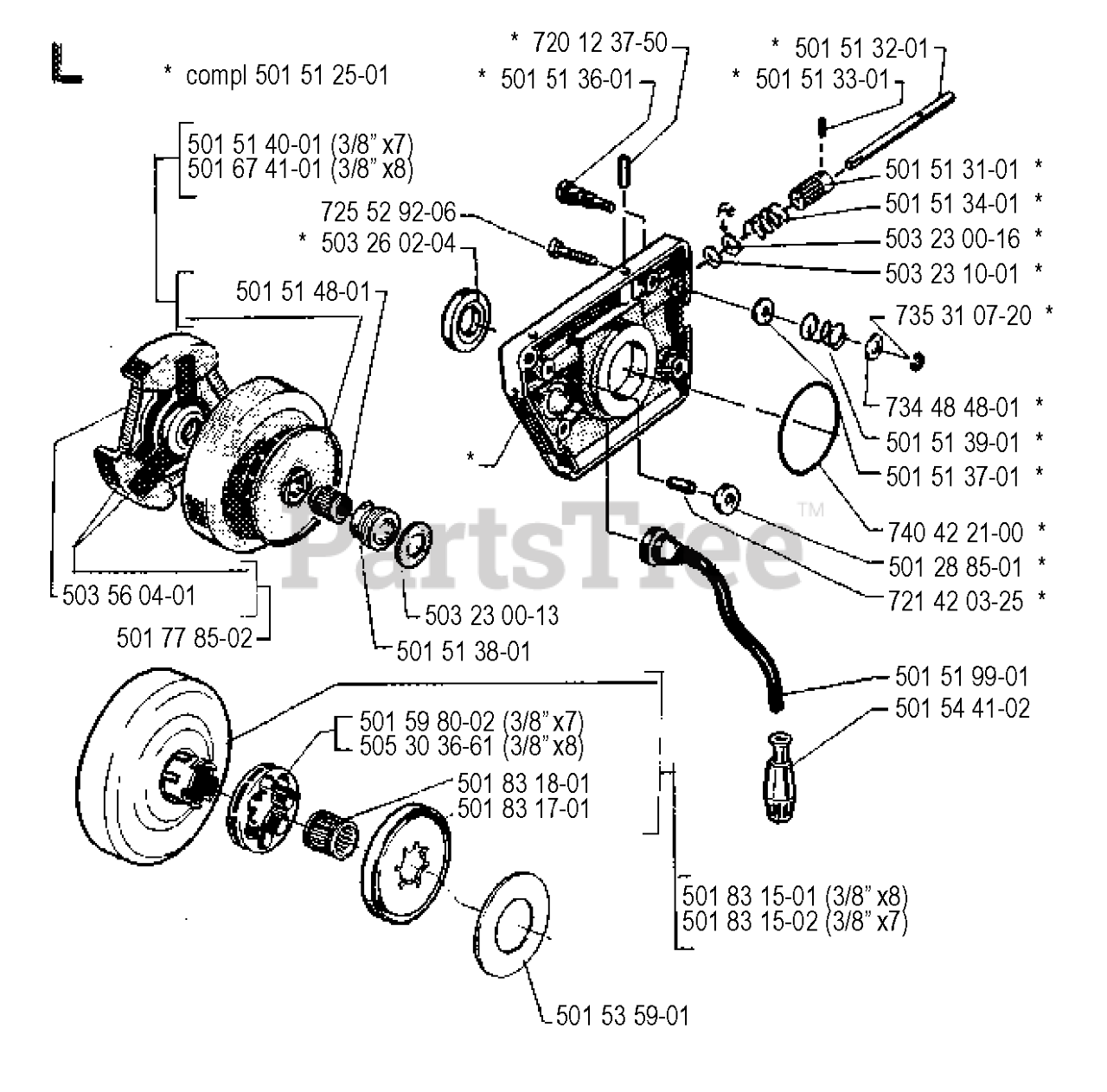

CLUTCH & OIL PUMP Parts Diagram

  • Title
501 51 39-01

$5.99

$

Usually ships in 3-10 days

0

501 77 85-02

Husqvarna 501778502

CLUTCH CPL.
(Superseded to 503744402)

$60.99

$

Usually ships in 3-10 days

0

501 51 31-01

Husqvarna 501513101

GEAR WHEEL

$33.99

$

In Stock, only 1 left!

0

501 51 32-01

$9.49

$

Usually ships in 3-10 days

0

503 23 00-13

Husqvarna 503230013

WASHER 13.1X20

$4.99

$

In Stock, only 1 left!

0

501 28 85-01

$8.99

$

In Stock, only 1 left!

0

501 83 17-01

Husqvarna 501831701

DUST PROTECTION

$7.99

$

In Stock, only 4 left!

0

501 51 25-01

$113.99

$

In Stock, only 1 left!

0

721 42 03-25

Husqvarna 721420325

SPRING PIN 3X6

$3.49

$

Usually ships in 3-10 days

0

501 51 38-01

Husqvarna 501513801

WORM WHEEL

$7.99

$

In Stock, Qty 5

0

501 83 15-01

Husqvarna 501831501

SPROCKET DRUM 3/8 X 8T
(Superseded to 501831503)

Note: 3/8 X8

$62.99

$

Usually ships in 3-10 days

0

501 51 37-01

$4.99

$

Usually ships in 3-10 days

0

734 48 48-01

$4.99

$

Usually ships in 3-10 days

0

740 42 21-00

$4.99

$

In Stock, only 2 left!

0

503 23 00-16

Husqvarna 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

501 51 34-01

$5.99

$

Usually ships in 3-10 days

0

720 12 37-50

Husqvarna 720123750

PARALLEL PIN 3X18

$4.99

$

Usually ships in 3-10 days

0

501 83 18-01

Husqvarna 501831801

NEEDLE BEARING
(Superseded to 640200011)

$

$

Not available

503 26 02-04

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, only 2 left!

0

501 51 33-01

$3.49

$

Usually ships in 3-10 days

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0

505 30 36-61

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: 3/8 X8

$7.99

$

Usually ships in 3-10 days

0

501 51 99-01

$11.99

$

Usually ships in 3-10 days

0

501 51 36-01

Husqvarna 501513601

CONTROL SCREW

$3.49

$

In Stock, only 2 left!

0

725 52 92-06

Husqvarna 725529206

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, only 2 left!

0

501 51 40-01

Husqvarna 501514001

CLUTCH DRUM 3/8 X 7
(Superseded to 503650901)

Note: 3/8 X7

$

$

Not available

501 53 59-01

$5.99

$

In Stock, Qty 7

0

503 23 10-01

Husqvarna 503231001

WASHER 5.1X8.5

$

$

Not available

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8 X7

$8.49

$

In Stock, Qty 9

0

735 31 07-20

Husqvarna 735310720

E-RING 3.2

$3.49

$

Usually ships in 3-10 days

0

503 56 04-01

$

$

Not available

501 51 48-01

Husqvarna 501514801

SUPPORT BUSHING

$34.99

$

Usually ships in 3-10 days

0

501 83 15-02

Husqvarna 501831502

SPROCKET DRUM 3/8 X 7
(Superseded to 640300032)

Note: 3/8 X7

$

$

Not available

501 67 41-01

Husqvarna 501674101

CLUTCH DRUM 3/8 X 8
(Superseded to 503650901)

Note: 3/8 X8

$

$

Not available
