26682 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

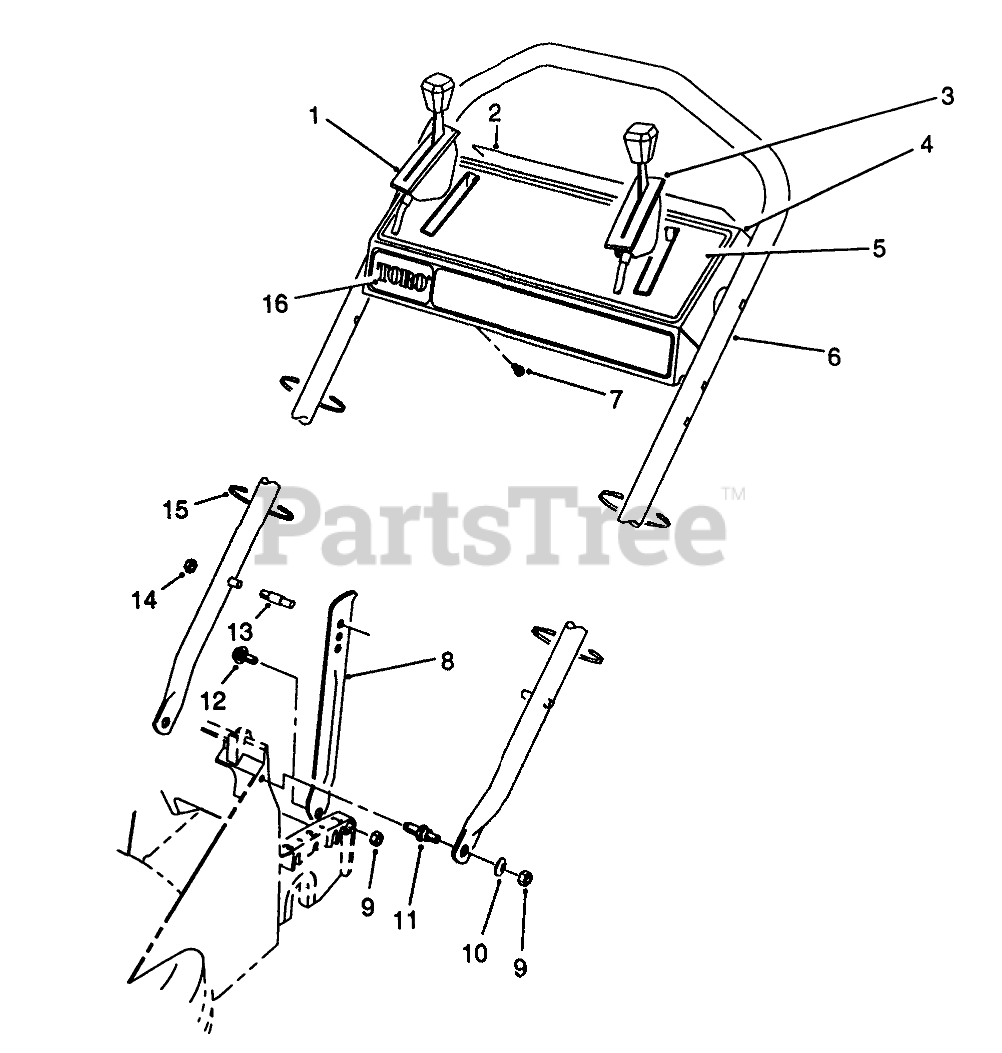

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5530

Control-Ground Speed Bend Type #3 Sheath Lg. 51-1/4" Wire Lg. 2-1/8"
(Superseded to 74-3560)

$67.99

$

Usually ships in 3-6 days

0

2

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

3

Toro 66-0231

Control-Throttle Bend Type #1 Sheath Lg. 43-3/4" Wire Lg. 2-5/8"
(Superseded to 66-0236)

$138.99

$

Usually ships in 3-6 days

0

4

Toro 13-6269

Panel-Control (Incl. Ref. #2, 5 & 16)

$

$

Not available

5

Toro 63-9030

DECAL - INSTRUCTION

$

$

Not available

6

Toro 66-0320

HANDLE

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 65-5730

HANDLE LATCH

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

12

Toro 66-0440

SCREW - SHOULDER

$

$

Not available

13

Toro 49-2750

HANDLE PIN

$38.99

$

Usually ships in 3-6 days

0

14

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

16

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available
