26680 WG - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) RECOIL ASSEMBLY (ENGINE MODEL NO. 47PK9) Parts Diagram

Walk-Behind Mower

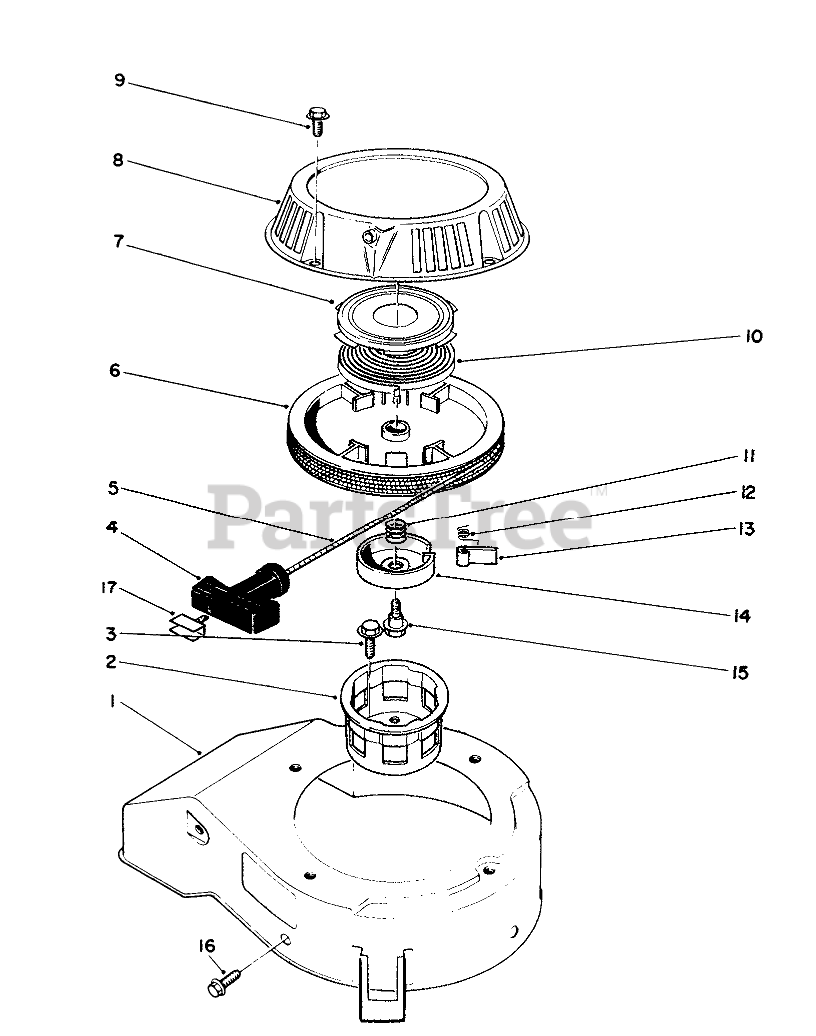

RECOIL ASSEMBLY (ENGINE MODEL NO. 47PK9) Parts Diagram

  • Title

1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$

$

Not available

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

In Stock, only 2 left!

0

6

Toro 81-1210

REEL

$54.99

$

In Stock, only 2 left!

0

7

Retainer-Recoil Spring

$

$

Not available

8

Toro 81-2090

CASE

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

10

Spring-Recoil

$

$

Not available

11

Toro 81-1240

SPRING

$

$

Not available

12

Toro 81-1220

SPRING

$

$

Not available

13

Toro 81-1230

DOG

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 81-1170

BOLT

$

$

Not available

17

Toro 81-5760

Insert Handle

$

$

Not available

Toro 81-2041

Recoil Starter Assembly (Incl. Ref. #4-8 & 10-17)
(Superseded to 81-5480)

$

$

Not available

Toro 81-2300

Spring & Retainer Assembly (Incl. Ref. #7 & 10)

$43.99

$

In Stock, only 2 left!

0

Toro 81-5480

Starter Assembly (Incl. Ref . #4-8 & 10-15)

$

$

Not available
