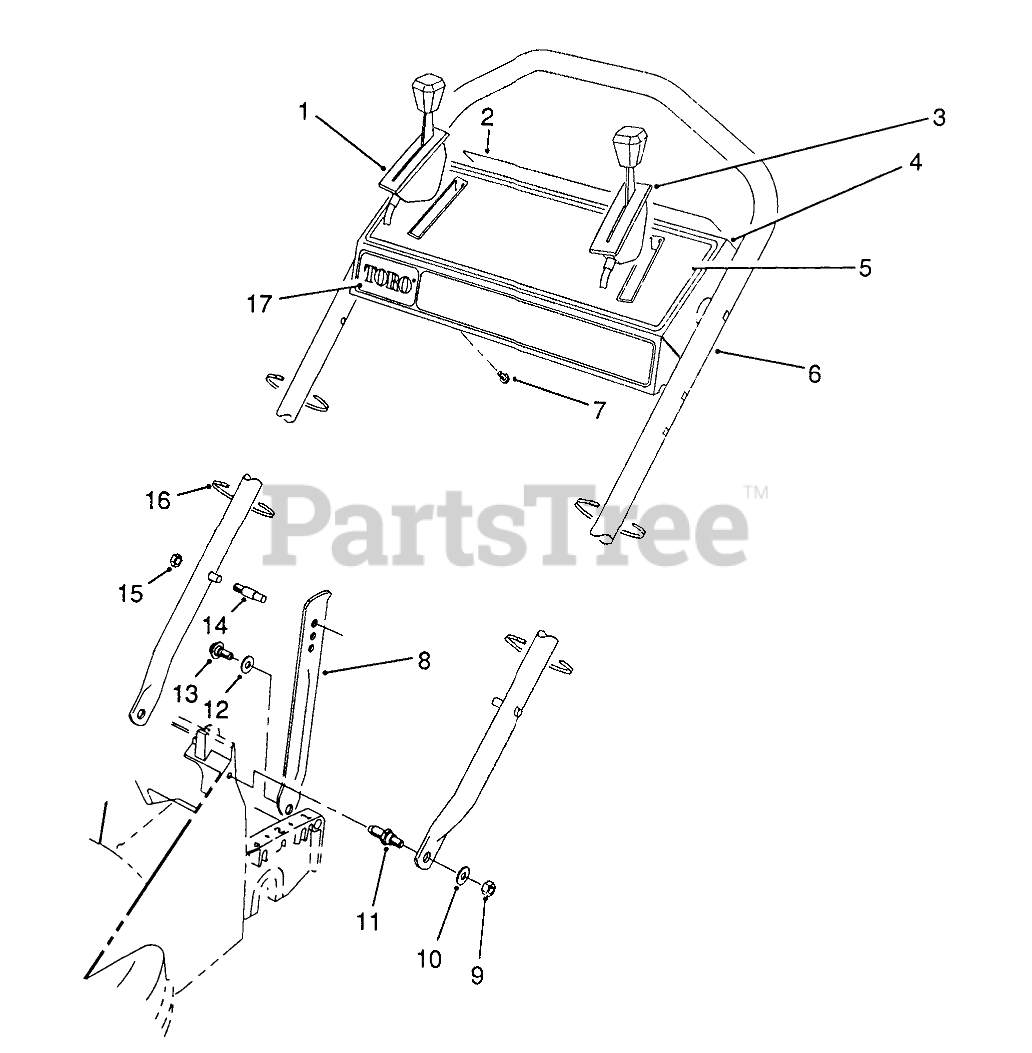

26680 WG - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2710

Control-Ground Speed
(Superseded to 76-2713)

$106.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$10.99

$

Usually ships in 3-6 days

0

Toro 72-8030

DECAL - REAR PANEL/GER

$

$

Not available

3

Toro 66-0231

Control-Throttle Bend Type #1 Sheath Lg. 43-3/4" Wire Lg. 2-5/8"
(Superseded to 66-0236)

$131.99

$

Usually ships in 3-6 days

0

4

Toro 13-6019

Panel-Control (Model 26680 Only)(Incl. Ref. #2 & 5)

$

$

Not available

Toro 13-9799

Control Panel Assembly (Model 26680WG Only)

$

$

Not available

5

Toro 66-0290

DECAL - INSTRUCTION

$

$

Not available

6

Toro 66-0320

HANDLE

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 65-5730

HANDLE LATCH

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

12

Toro 256-313

NYLON WASHER

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

17

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available
