26680 WG - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower

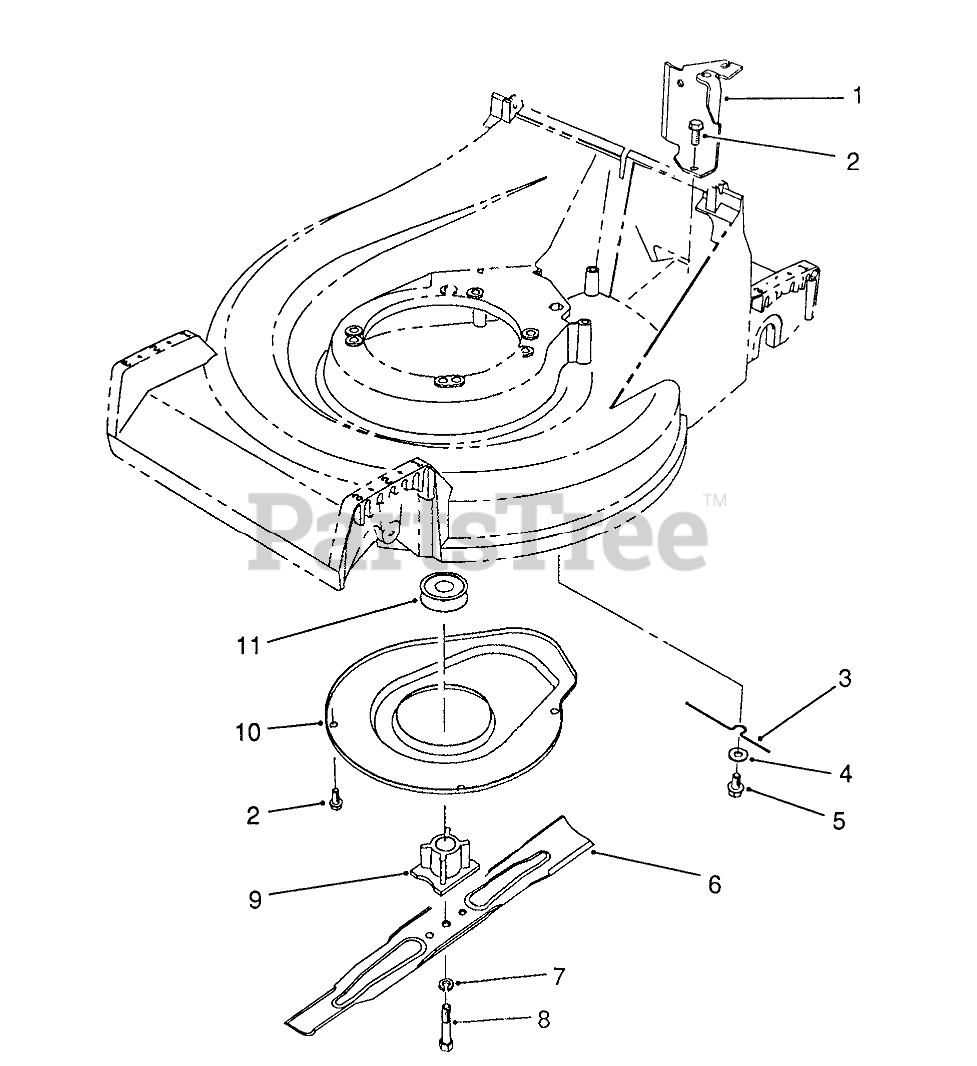

BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 66-0620

RETAINER-BELT

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

6

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 26-0670

SCREW-BLADE

$

$

Not available

9

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

10

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

11

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available
