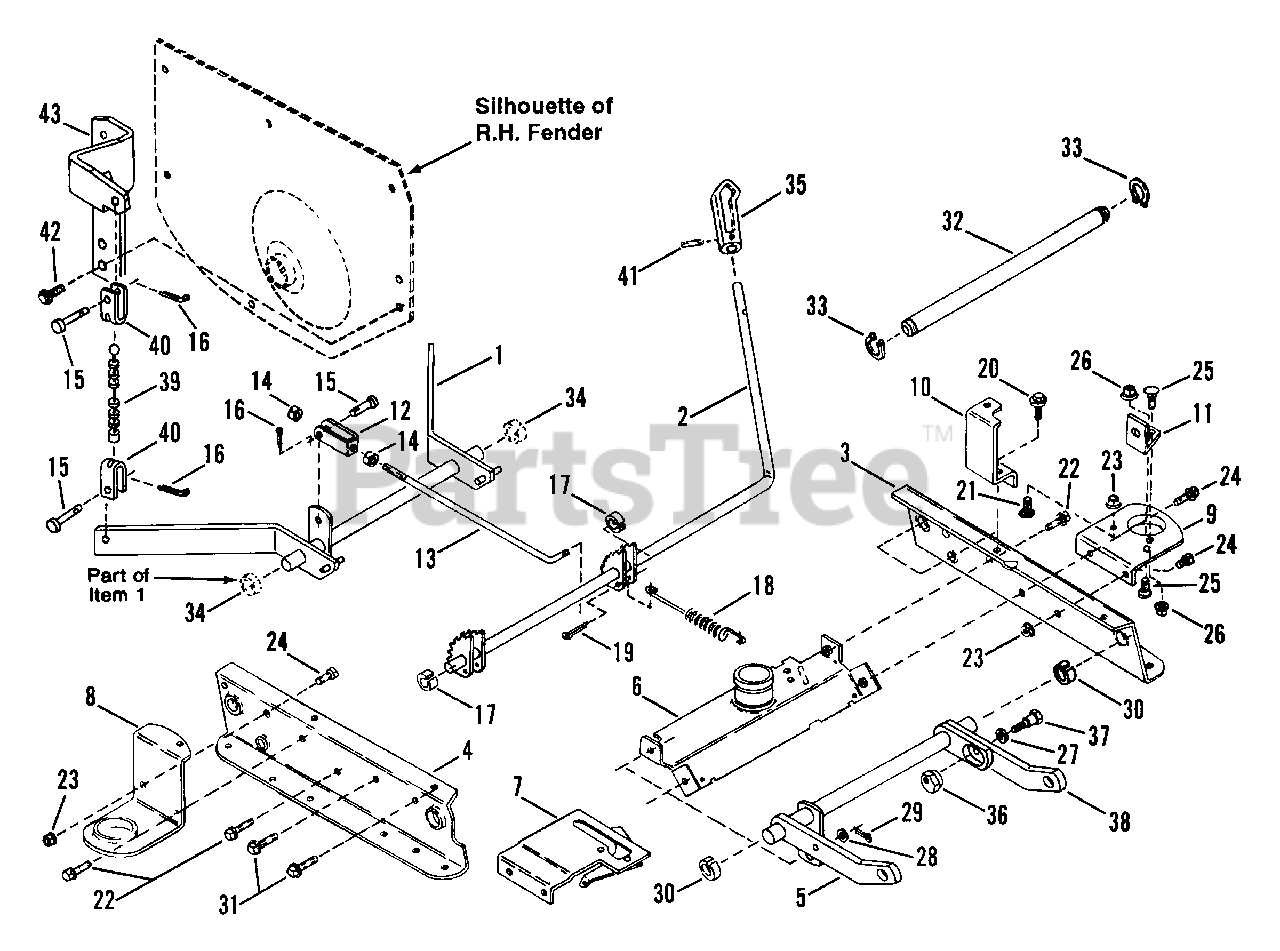

26659BE (80104) - Snapper 26" Rear-Engine Riding Mower, 6.5hp Rails, Lift Arms, Cam Lift - 41" - Series 8 Parts Diagram

26" Rear-Engine Riding Mower, 6.5hp

Rails, Lift Arms, Cam Lift - 41" - Series 8 Parts Diagram

  • Title

1

Snapper 7052394

ASSEMBLY, Rear Lift Arm
(Superseded to 7052394YP)

$250.99

$

Usually ships in 2-12 days

0

2

Snapper 7047835

LIFT LEVER, Height Adjustment
(Superseded to 7047835YP)

$95.99

$

Usually ships in 2-12 days

0

3

Snapper 7033036

RAIL, Left Half
(Superseded to 7033036YP)

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 7033037

RAIL, Right Half
(Superseded to 7033037YP)

$47.99

$

Usually ships in 2-12 days

0

5

Snapper 7040685

STRUCTURE, Front Lift Arm

$

$

Not available

6

Snapper 7040502

BRACE, Weldment
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper 7058969

ASSEMBLY, Clutch P
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

8

Snapper 7036090

SPINDLE, Brace, Right

$

$

Not available

9

Snapper 7038096

SPINDLE, Brace, Left Half
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7038104

BRACKET, Cover

$

$

Not available

11

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7031837

CLEVIS, Timing Rod
(Superseded to 7031837YP)

$27.99

$

Usually ships in 2-12 days

0

13

Snapper 7012030

ROD, Timing

$2.99

$

In Stock, Qty 7

0

14

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

16

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7023791

RING, Black
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7011074

SPRING, Cam-Lift

$

$

Not available

19

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

20

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

21

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

22

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

23

Snapper 7090289

NUT, 3/8-24 Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

24

Snapper 7090292

SCREW, 3/8-24 x 3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

25

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7090122

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

30

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Head Washer, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

32

Snapper 7017848

SUPPORT, Rod
(Superseded to 7017848YP)

$31.99

$

Usually ships in 2-12 days

0

33

Snapper 7017847

RING, Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

Usually ships in 2-12 days

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7015495

BOLT, Shoulder
(Superseded to 7015495YP)

$

$

Not available

38

Snapper 7032997

ARM, Front Lift, Left Side
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

39

Snapper 7017153

CABLE, 41" Deck
(Superseded to 7017153YP)

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 7032276

BRACKET, Cable
(Superseded to 7032276YP)

Note: Was 33313

$12.99

$

In Stock, only 4 left!

0

41

Snapper 7090844

ROLL-PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7090369

SCREW, 5/16-18 x 1" H.W.H., Self-Tapping
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7033224

DECK WING, Rear

Note: (R. H. Shown)

$

$

Not available

43

Snapper 7033223

DECK WING, Rear
(Superseded to 7033223YP)

Note: (L. H., Not Shown)

$67.99

$

Usually ships in 2-12 days

0
