26657 (81830) - Snapper 26" Rear-Engine Riding Mower, 6.5hp Wheels - Rear Parts Diagram

26" Rear-Engine Riding Mower, 6.5hp

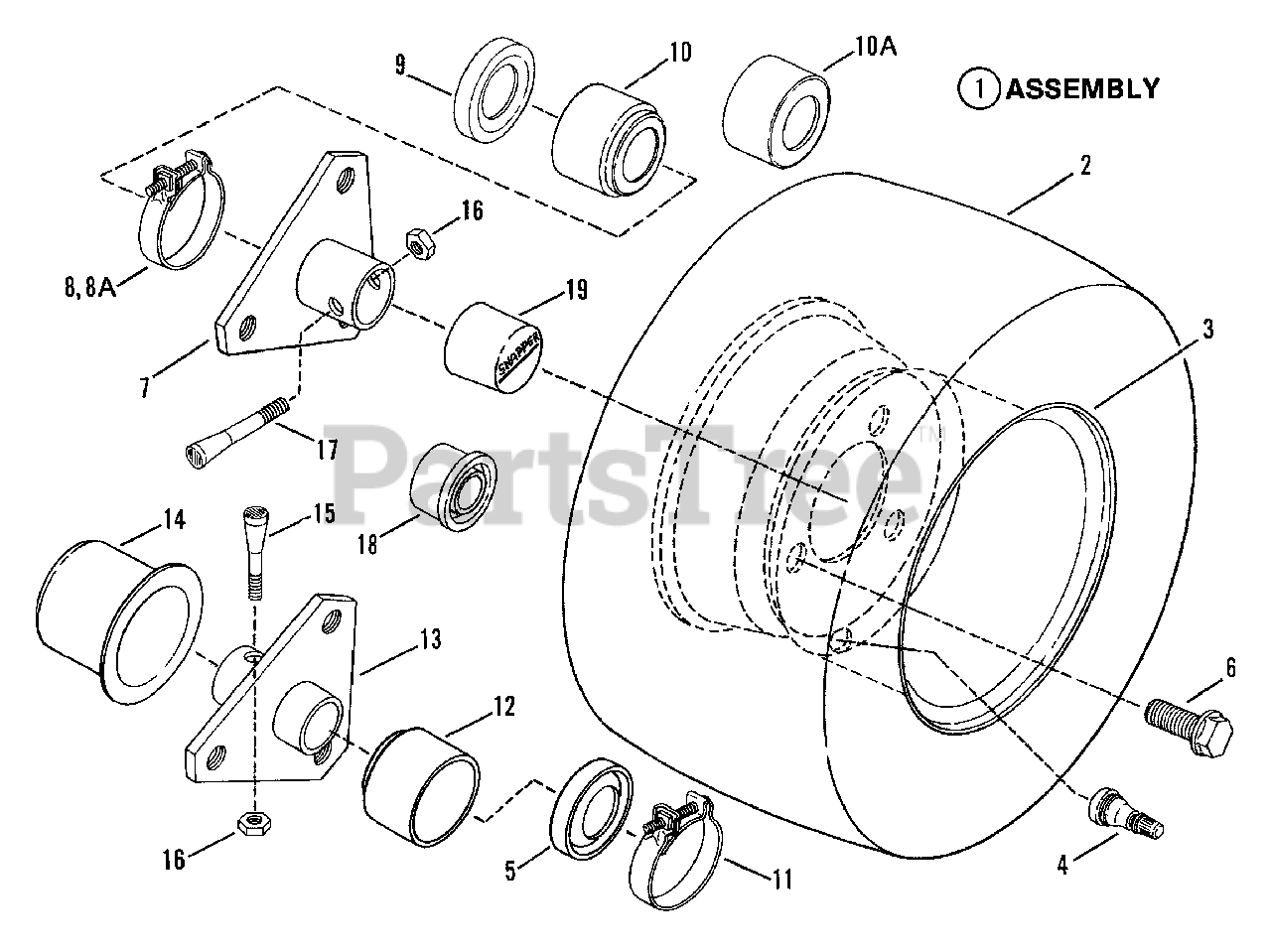

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7051953

ASSEMBLY, Rear Tire & Rim (25 & 26" Models)
(Superseded to 7051953YP)

Note: (Includes items 2,3,&4)

$165.99

$

Usually ships in 2-12 days

0

Snapper 7052270

ASSEMBLY, Rear Tire & Rim (28,30, & 33"Models)
(Superseded to 7052270YP)

Note: (Includes items 2,3,&4) Was 51718

$207.99

$

In Stock, only 1 left!

0

2

Snapper 7046245

TIRE, Wide, 16/6.50x8(28,30, & 33" Models)
(Superseded to 7073584YP)

Note: Was 15968

$170.99

$

Usually ships in 2-12 days

0

Snapper 7023889

TIRE, Std.,16/4.80x8(25 & 26" Models)
(Superseded to 7023889YP)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM, Wide (For 16/6.50x8 Tire)(28,30 & 33" Models)
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

Snapper 7017145

RIM, Std.,(For 16/4.80x8 Tire)(25 & 26" Models)
(Superseded to 7017145YP)

Note: Was 12162

$134.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014662

SEAL, Oil Left Hand
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

6

Snapper 7091502

BOLT, 1/2-20x3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7040433

HUB, Rear Wheel, Right Hand
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

8

Snapper 7014542

CLAMP, Right Hand (12 & 14 HP Models)

$

$

Not available

8A

Snapper 7011037

CLAMP, Right Hand (6.5 & 8 HP Models)
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

9

Snapper 7011817

SEAL, Oil, Right Hand
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7014541

BOOT, Right Hand(12 & 14 HP Models)
(Superseded to 7014541YP)

$

$

Not available

10A

Snapper 7031732

BOOT, Right Hand (6.5 & 8 HP Models)
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

11

Snapper 7012332

CLAMP, Left Hand(12 & 14 HP Models)
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

12

Snapper 7014658

BOOT, Left Hand(12 & 14 HP Models)
(Superseded to 7014658YP)

$7.99

$

In Stock, Qty 20+

0

13

Snapper 7040434

HUB, Rear Wheel, Left Hand
(Superseded to 7040434YP)

$

$

Not available

14

Snapper 7023522

HUB-CAP, Left Hand
(Superseded to 7023522YP)

$6.49

$

In Stock, only 1 left!

0

15

Snapper 7011035

BOLT, 5/16-24x1-518" Tapered, Left Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7092062

NUT, 5/16-24 Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7011013

BOLT, 5/16-24x2" Tapered, Right Hand
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

18

Snapper 7014658

CAP, Dust, Left Hand (6.5 & 8 HP Models)
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

19

Snapper 7023895

HUB, CAP, Right Hand
(Superseded to 7023895YP)

$6.99

$

In Stock, Qty 5

0
