2665 (31AM5CP3766) - Troy-Bilt Storm 26" Snow Thrower (2021) Panel Parts Diagram

Storm 26" Snow Thrower

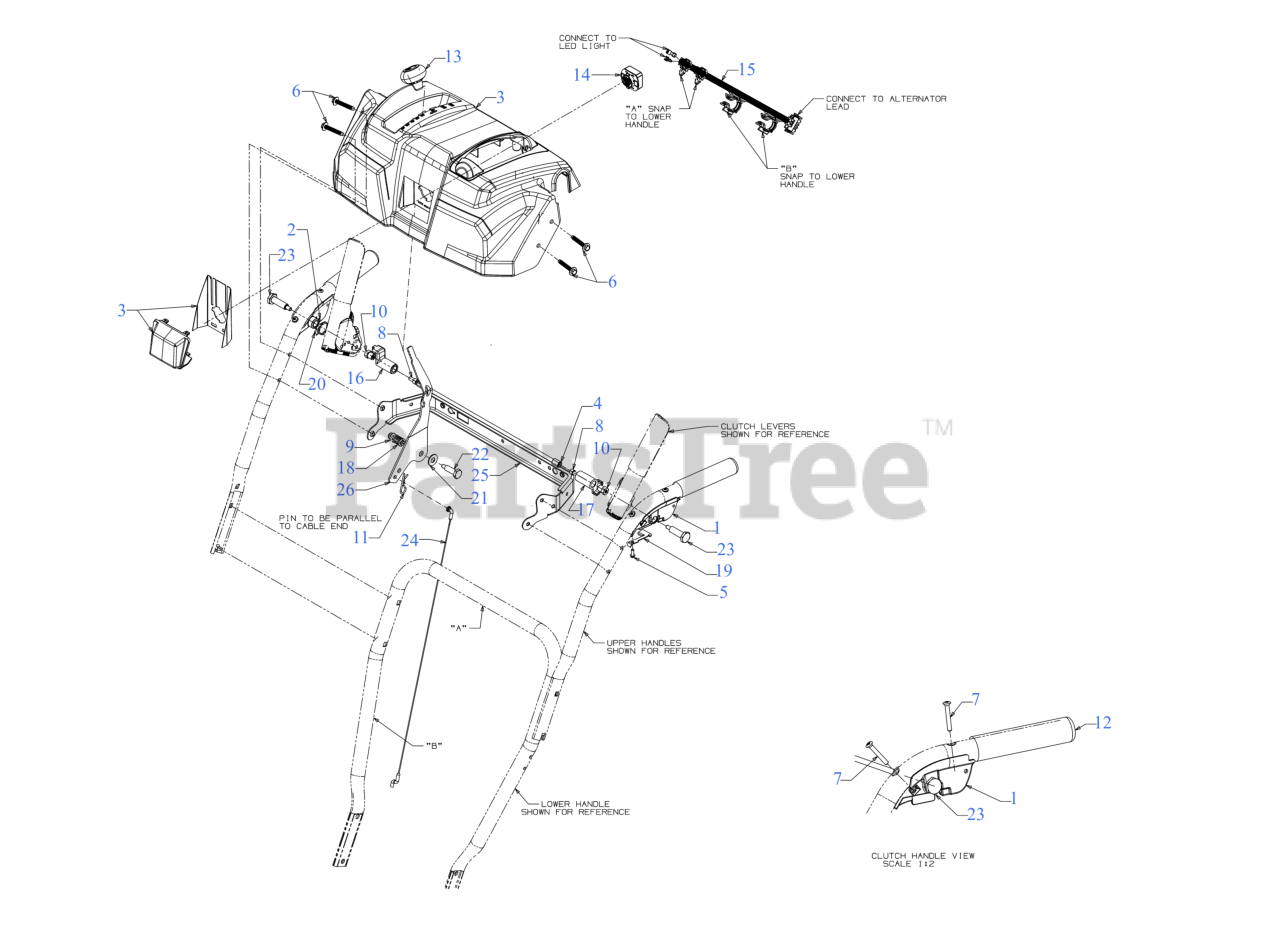

Panel Parts Diagram

  • Title
1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

2

Troy-Bilt 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 931-04181A

HANDLE PANEL ASSEMBLY

$59.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 777X41805

LABEL:SNOW:2 STAGE

Note: (Not Show)

$9.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 731-05319

LENS

Note: (Not Show)

$13.99

$

In Stock, only 3 left!

0

4

$12.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

8

Troy-Bilt 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

9

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

$11.99

$

In Stock, Qty 11

0

13

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 925-06095A

LED HEADLIGHT SOCKET (150 LUMNES)

$52.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 925-06927

LIGHT HARNESS

$26.99

$

Usually ships in 3-6 days

0

16

$5.49

$

In Stock, Qty 11

0

17

Troy-Bilt 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

19

Troy-Bilt 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

21

Troy-Bilt 936-0267

FLAT WASHER .40X.88X.060
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 946-04396A

SPEED SELECTOR CABLE (PLASTIC)

$20.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$24.99

$

In Stock, Qty 5

0

26

$27.99

$

In Stock, only 4 left!

0
