2665 (31AM5CP3766) - Troy-Bilt Storm 26" Snow Thrower (2021) Chute Parts Diagram

Storm 26" Snow Thrower

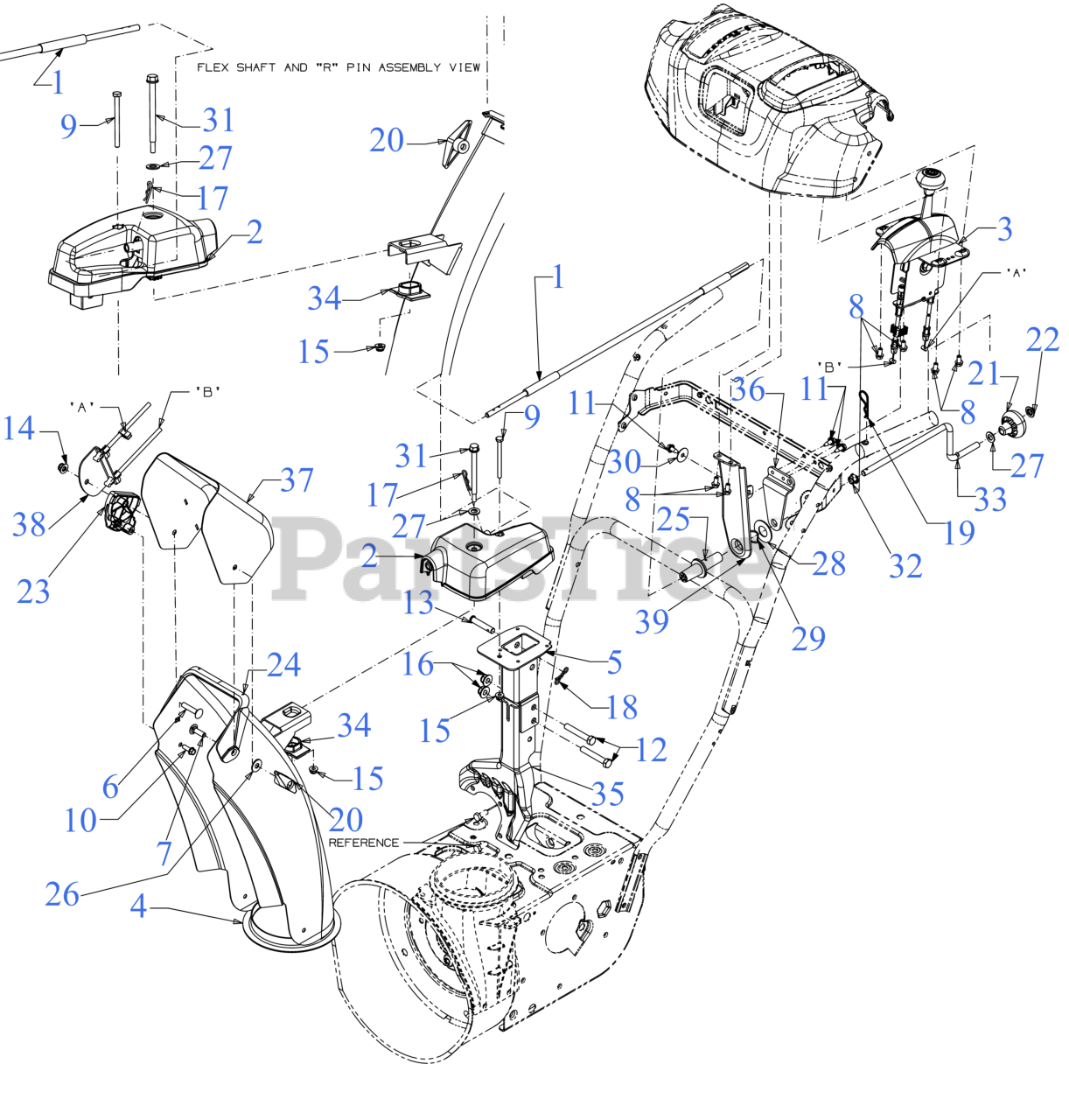

Chute Parts Diagram

  • Title
1

Troy-Bilt 611-05867

CHUTE CONTROL

$47.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 618P09920

2-WAY CHUTE ROTATE GEARBOX

Note: (See Separate Breakdown)

$55.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 984-05044

CHUTE CONTROL ASSEMBLY-2-WAY

Note: (See Separate Breakdown)

$103.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05062

LOWER CHUTE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 684-05062-4021

CHUTE-LOWER STEEL - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-05062-0606

CHUTE-LOWER STEEL - MAJESTIC ORANGE (0606)

$102.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-06771A

EXTENSION CHUTE MAST

Note: *CHOOSE COLOR WHEN ORDERING*

$35.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

7

Troy-Bilt 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

8

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 7

0

9

Troy-Bilt 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

11

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 714-0101

INTERNAL COTTER PIN

$4.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-3020

INTERNAL COTTER PIN

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 920-0284

WING KNOB NUT
(Superseded to 720-0284)

$

$

Not available

21

Troy-Bilt 720-04102

SHIFT KNOB

$6.99

$

In Stock, only 2 left!

0

22

$4.49

$

In Stock, only 3 left!

0

23

Troy-Bilt 731-09535

CHUTE TILT GUIDE

$8.49

$

In Stock, Qty 5

0

24

Troy-Bilt 731-09539A

UPPER CHUTE ADAPTER

$25.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-09643

CHUTE ROD COUPLER

$7.49

$

In Stock, only 2 left!

0

26

Troy-Bilt 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0185

FLAT WASHER

$3.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 736-0316

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0621

WAVE WASHER .785X1.00X.012

Note: 1

$17.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 9

0

31

Troy-Bilt 738-04367

SHOULDER SCREW

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 747-06196-0637

CHUTE CRANK (POWDER BLACK)

$21.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 748-05057

HELICAL GEAR CHUTE ADAPTER

$11.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 790-00330C

CHUTE SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00330C-0637

BRKT-CHUTE SUPPORT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00330C-4021

BRKT-CHUTE SUPPORT - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00330C-0606

BRKT-CHUTE SUPPORT - MAJESTIC ORANGE (0606)

$28.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 790-00529

UPPER CHUTE STEEL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00529-4021

Upper Chute, Steel - CUB YELLOW 2 (4021)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00529-0606

CHUTE-UPPER STEEL - MAJESTIC ORANGE (0606)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00529-0637

CHUTE-UPPER STEEL - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00529-0691

CHUTE-UPPER STEEL - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00529-4033

CHUTE-UPPER STEEL - FLINT MICA (4033)

$34.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 790-00565A

CABLE BRACKET GUIDE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00565A-0637

CABLE BRACKET GUIDE (POWDER BLACK) - POWDER BLACK (0637)

$14.99

$

In Stock, only 2 left!

0

$12.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 790-00576

CHUTE CONTROL BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00576-0637

Chute Control Bracket - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0
