26643 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

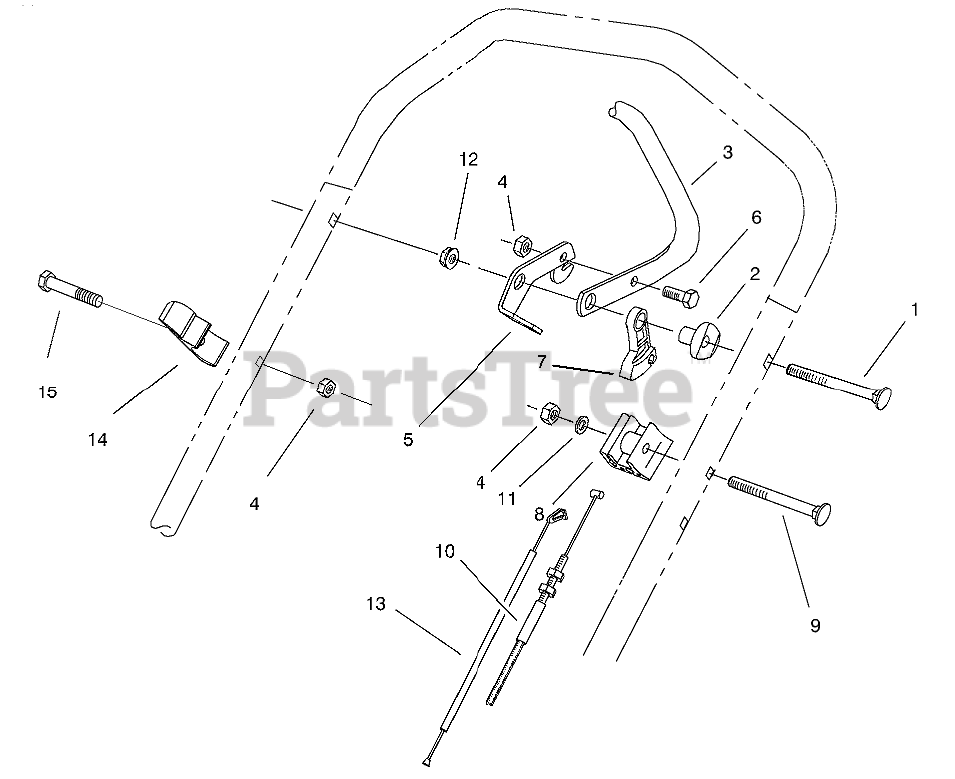

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

2

Toro 66-0330

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

3

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

5

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 46-5520

LEVER-TRACTION

$

$

Not available

8

Toro 71-0960

SUPPORT-CABLE

$9.99

$

Usually ships in 3-6 days

0

9

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

10

Toro 93-6634

CABLE-TRACTION

$99.99

$

Usually ships in 3-6 days

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

13

Toro 93-7027

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

14

Toro 93-3772

GUIDE - ROPE

$

$

Not available

14

Toro 95-4478

GUIDE-ROPE

$

$

Not available

15

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available
