26642 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE TECUMSEH MODEL NO. OVRM40-42603 Parts Diagram

Walk-Behind Mower

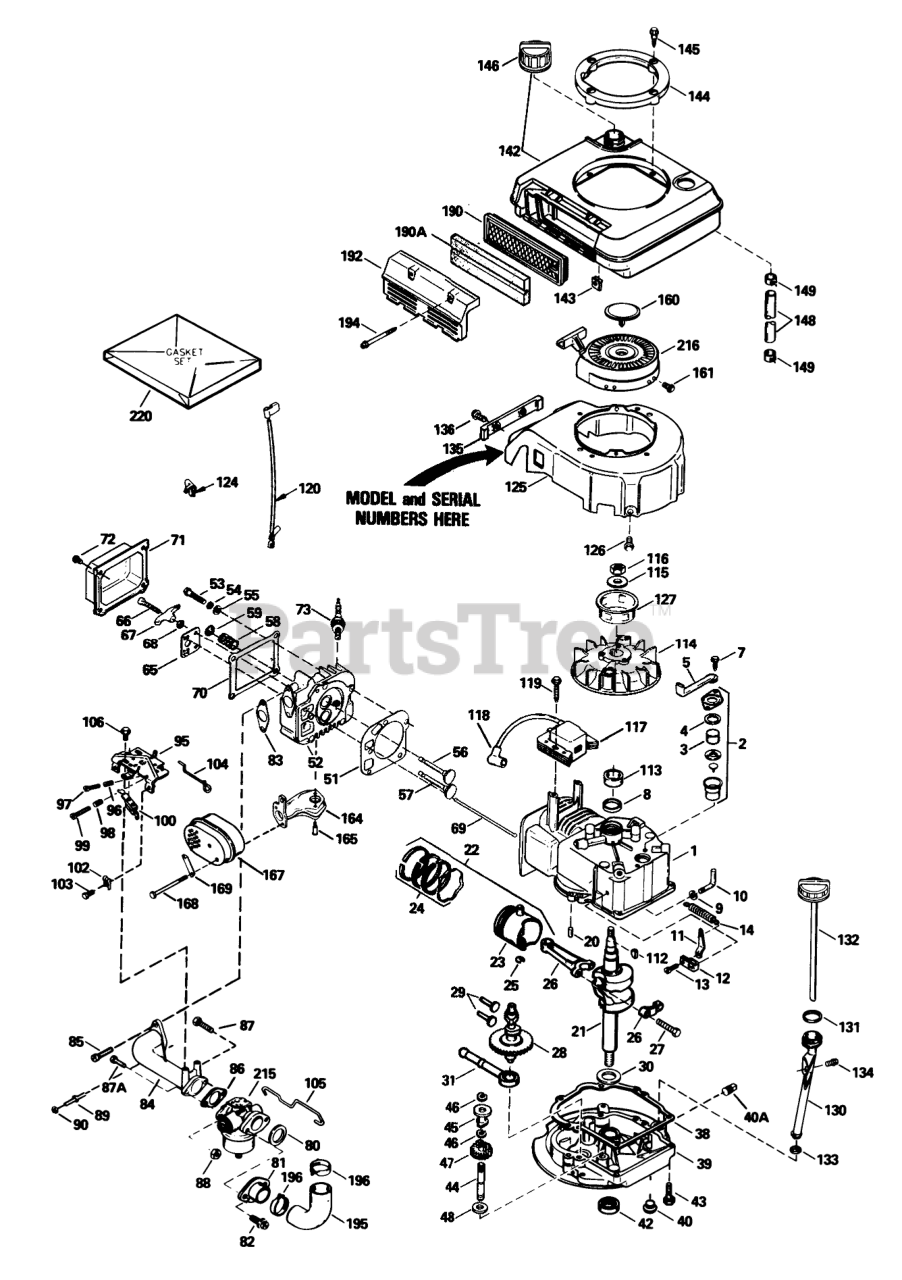

ENGINE TECUMSEH MODEL NO. OVRM40-42603 Parts Diagram

  • Title

1

Tecumseh 35613

Cylinder Assembly (Incl. Ref. #8 & 20)

$

$

Currently unavailable

2

Tecumseh 34214A

Breather Assembly (Incl. Ref. #3, 4 & 7)
(Superseded to 34214B)

$

$

Not available

3

Tecumseh 33734

Element-Breather

$1.99

$

In Stock, Qty 11

0

4

Tecumseh 33735

Gasket-Breather

$1.99

$

Usually ships in 3-12 days

0

5

Tecumseh 35496

Tube-Breather

$3.99

$

Usually ships in 3-12 days

0

7

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

8

Tecumseh 32600

Seal-Oil

$

$

Not available

9

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

10

Tecumseh 30589

Rod-Governor (Incl. Ref. #9)

$5.49

$

In Stock, only 1 left!

0

11

Tecumseh 31383A

Governor Lever

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 33578

Spring-Extension

$2.99

$

In Stock, only 1 left!

0

20

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

21

Tecumseh 35748

Crankshaft

$

$

Not available

22

Tecumseh 34514

Piston Pin & Ring Std. (Incl. Ref. #23-25)

$

$

Not available

Tecumseh 34515

Piston Pin & Ring .010 O.S. (Incl. Ref. #23-25)

$

$

Not available

Tecumseh 34516

Piston Pin & Ring .020 O.S. (Incl. Ref. #23-25)

$79.99

$

Usually ships in 3-12 days

0

23

Tecumseh 32538B

Piston & Pin Std. (Incl. Ref. #25)

$

$

Not available

Tecumseh 32548B

Piston & Pin .010 O.S. (Incl. Ref. #25)

$

$

Not available

Tecumseh 32549B

Piston & Pin .020 O.S. (Incl. Ref. #25)

$50.99

$

Usually ships in 3-12 days

0

24

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

25

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

26

Tecumseh 30963B

Connecting Rod Assy. (Incl. Ref. #27)

$29.99

$

Usually ships in 3-12 days

0

27

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

28

Tecumseh 35615

Camshaft
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

29

Tecumseh 35616

Valve Lifter
(Superseded to 35616A)

$3.99

$

In Stock, only 1 left!

0

30

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

31

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

38

Tecumseh 35261

Gasket
(Superseded to 37609)

$2.99

$

Usually ships in 3-12 days

0

39

Tecumseh 34311B

Flange-Mounting (Incl. Ref. #40, 40A, 42 & 44)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

40

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

40A

Tecumseh 9556

Plug-Pipe
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

42

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 14

0

43

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

44

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 2 left!

0

45

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 5

0

46

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 5

0

47

Tecumseh 30591

Governor Gear Assembly (Incl. Ref. #48)

$13.99

$

Usually ships in 3-12 days

0

48

Tecumseh 35479

Washer
(Superseded to 651080)

$1.99

$

In Stock, Qty 5

0

51

Tecumseh 35617

Gasket-Cylinder Head

$9.49

$

In Stock, only 1 left!

0

52

Tecumseh 35630

Head-Cylinder

$

$

Not available

53

Tecumseh 650912

Screw (5/16-18 x 1-1/2)

$1.99

$

In Stock, only 2 left!

0

54

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$

$

Not available

56

Tecumseh 35619

Valve-Intake Std. (Incl. Ref. #59)

$

$

Not available

Tecumseh 35620

Valve-Intake .031 O.S. (Incl. Ref. #59)

$

$

Not available

57

Tecumseh 35621

Valve-Exhaust Std. (Incl. Ref. #59)

$47.99

$

Usually ships in 3-12 days

0

Tecumseh 35622

Valve-Exhaust .031 O.S. (Incl. Ref. #59)

$

$

Not available

58

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

59

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

65

Tecumseh 35623

Guide-Push Rod

$

$

Not available

66

Tecumseh 650913

Stud-Arm, Rocker

$1.99

$

Usually ships in 3-12 days

0

67

Tecumseh 35624

Arm-Rocker
(Superseded to 35624A)

$26.99

$

Usually ships in 3-12 days

0

68

Tecumseh 650914

Nut (1/4-28)

$1.99

$

Usually ships in 3-12 days

0

69

Tecumseh 35625

Rod-Push

$5.49

$

In Stock, only 1 left!

0

70

Tecumseh 35626

Gasket-Cover, Rocker Arm

$3.99

$

Usually ships in 3-12 days

0

71

Tecumseh 35718

Cover-Rocker Arm

$23.99

$

Usually ships in 3-12 days

0

72

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 13

0

73

Tecumseh 34645

Spark Plug-Resistor (R N 4C)

$3.99

$

In Stock, Qty 10

0

80

Tecumseh 27272A

Gasket-Air Cleaner

$4.49

$

In Stock, Qty 20+

0

81

Tecumseh 32971

Adapter-Air Cleaner

$5.49

$

Usually ships in 3-12 days

0

82

Tecumseh 650709

Screw-Round Hd.

$1.99

$

In Stock, only 1 left!

0

83

Tecumseh 35629

Gasket-Intake Pipe
(Superseded to 35629A)

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 35628

Pipe-Intake

$

$

Currently unavailable

85

Toro 65-451

Screw-Hex. Hd.

$

$

Currently unavailable

86

Tecumseh 26756

Gasket

$2.99

$

In Stock, only 2 left!

0

87

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

87A

Tecumseh 650920

Screw-Special Hex. Hd.

$

$

Not available

88

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

89

Tecumseh 650917

Stud-Manifold

$1.49

$

Usually ships in 3-12 days

0

90

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 7

0

95

Tecumseh 33131A

Control Bracket Assembly (Incl. Ref. #96-100)

$33.99

$

Usually ships in 3-12 days

0

96

Tecumseh 33802

61709/GIL1515A/95-5
(Superseded to 36482)

$3.99

$

In Stock, only 1 left!

0

97

Tecumseh 650777

Screw
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

98

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

99

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 4 left!

0

102

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

103

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

104

Tecumseh 34337

2035A67 ADD.ASSEMBL

$1.99

$

In Stock, only 1 left!

0

105

Tecumseh 34336

Link-Throttle
(Superseded to 34336A)

$1.99

$

In Stock, Qty 5

0

106

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

112

Tecumseh 611004

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

113

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

114

Tecumseh 611112

Flywheel

$

$

Not available

115

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

116

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

117

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

118

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

119

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

120

Tecumseh 34231

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

124

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

125

Tecumseh 35719

Housing-Blower

$101.99

$

Usually ships in 3-12 days

0

126

Tecumseh 650831

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, only 3 left!

0

127

Tecumseh 35000

Hub-Starter
(Superseded to 35000A)

$9.49

$

In Stock, only 1 left!

0

130

Tecumseh 35498

Tube-Oil Fill

$5.49

$

Usually ships in 3-12 days

0

131

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

132

Tecumseh 35507

Dipstick-Oil Fill

$7.49

$

Usually ships in 3-12 days

0

133

Tecumseh 34265

Gasket

$2.49

$

In Stock, only 1 left!

0

134

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

135

Tecumseh 35721

Cover-Blower Housing

$

$

Not available

136

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

142

Tecumseh 35501A

Shroud & Tank Assembly (Incl. Ref. #143 & 146)

$

$

Not available

143

Tecumseh 650900

Clip-U-Nut

$

$

Not available

144

Tecumseh 35502

Ring-Shroud

$

$

Not available

145

Tecumseh 650898

Screw
(Superseded to 650898A)

$1.99

$

In Stock, Qty 6

0

146

Tecumseh 35355

Cap-Fuel
(Superseded to 37845)

$8.99

$

In Stock, Qty 6

0

148

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

149

Toro 26406

Clamp-Fuel Line

$

$

Currently unavailable

160

Tecumseh 35392

Plug Starter

$1.99

$

In Stock, Qty 5

0

161

Tecumseh 650884

Screw, Hex Hd.
(Superseded to 650926)

$1.49

$

In Stock, only 3 left!

0

164

Tecumseh 35720

Exhaust Manifold Assembly

$36.99

$

Usually ships in 3-12 days

0

165

Tecumseh 650918

Screw-Torx Hd. Shoulder

$3.49

$

Usually ships in 3-12 days

0

167

Tecumseh 391028

Muffler Assembly

$27.99

$

Usually ships in 3-12 days

0

168

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 5

0

169

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 17

0

190

Tecumseh 35500

Filter-Air Cleaner

$8.49

$

In Stock, only 1 left!

0

190A

Tecumseh 35705

Filter-Pre-Cleaner

$11.99

$

Usually ships in 3-12 days

0

192

Tecumseh 35503

Cover-Air Cleaner

$

$

Not available

194

Tecumseh 650899

Screw-Filester Hd.

$

$

Not available

195

Tecumseh 35504

Tube-Air Cleaner

$6.49

$

In Stock, only 1 left!

0

196

Tecumseh 35505

Clamp-Air Cleaner

$1.99

$

In Stock, only 4 left!

0

215

Tecumseh 632521

Carburetor Assembly (Incl. Ref. #86)
(Superseded to 632570)

$109.99

$

Usually ships in 3-12 days

0

216

Tecumseh 590635

Starter-Rewind
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

220

Tecumseh 35633A

Gasket Set
(Superseded to 35633B)

$21.99

$

Usually ships in 3-12 days

0
