26639 - Toro Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

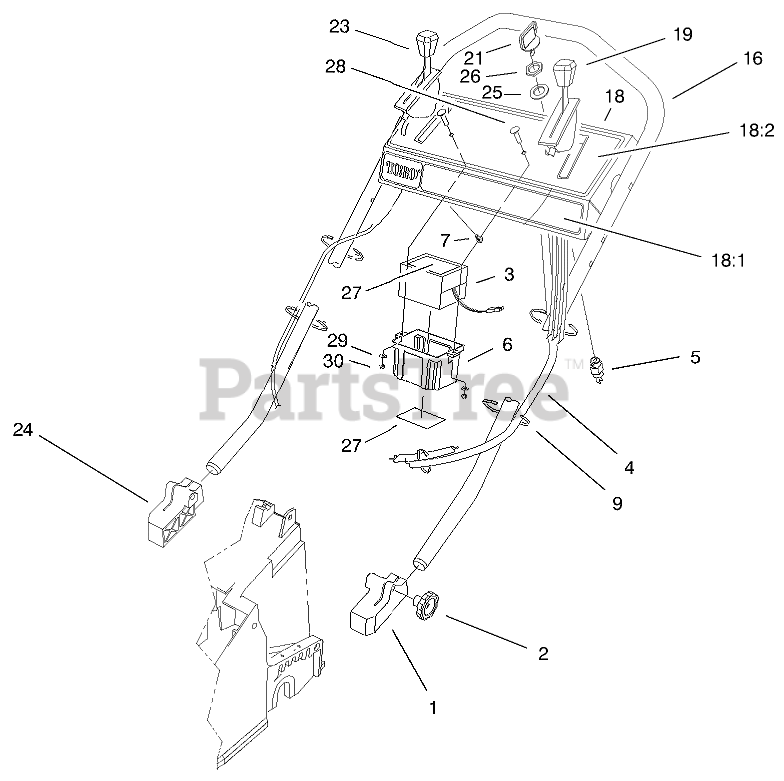

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

2

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

3

Toro 55-7520

BATTERY ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

4

Toro 80-4795

WIRE HARNESS

$

$

Not available

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

6

Toro 95-3017

COVER - BATTERY

$34.99

$

Usually ships in 3-6 days

0

7

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 94-4910

HANDLE

$

$

Not available

18

Toro 98-9229

ASM - PANEL W/DECALS

$

$

Not available

18:1

Toro 71-9871

DECAL - PANEL KEY

$

$

Not available

18:2

Toro 98-2025

DECAL - INSTRUCTIONS

$

$

Not available

19

Toro 98-1505

ASSEMBLY - CONTROL

$

$

Not available

21

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

23

Toro 93-6632

CONTROL-SPEED, GROUND

$99.99

$

Usually ships in 3-6 days

0

24

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

26

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

27

Toro 93-6668

DECAL-BATTERY

$20.99

$

Usually ships in 3-6 days

0

28

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

29

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
