26638 - Toro Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE GTS-200 Parts Diagram

Walk-Behind Mower

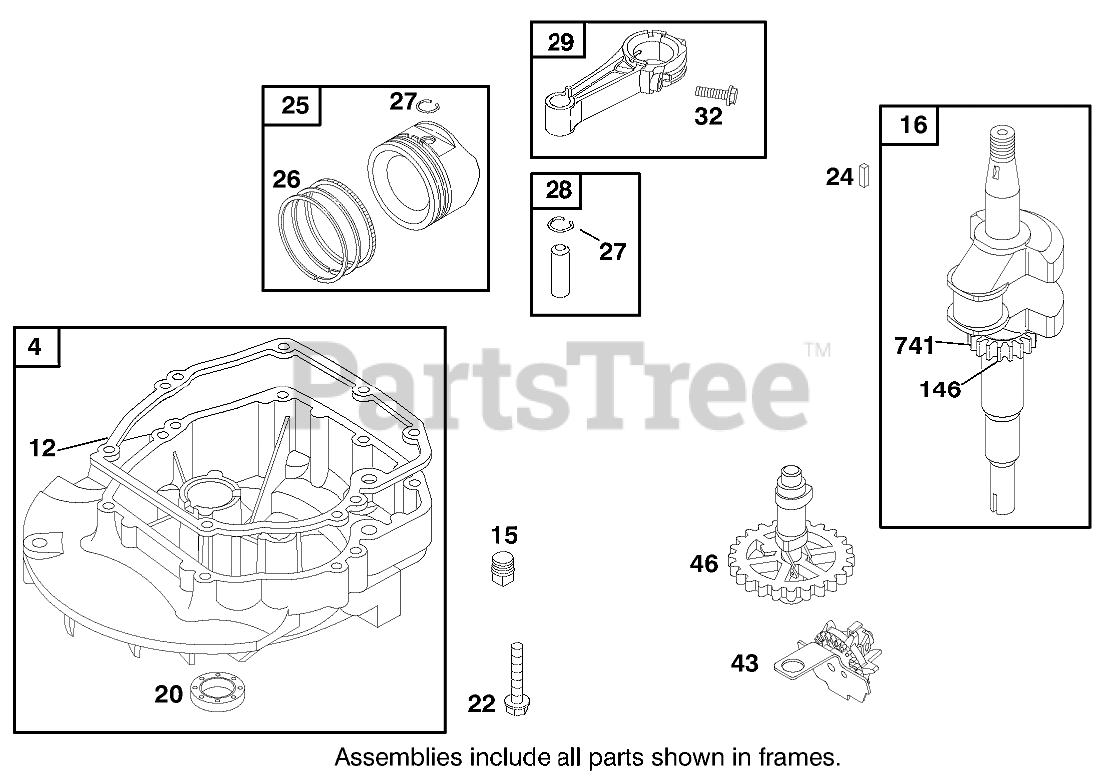

ENGINE GTS-200 Parts Diagram

  • Title
4

Toro 99-0952

SUMP-ENGINE

$234.99

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Gasket Set-Part No. 99-0902

$20.99

$

Usually ships in 3-6 days

0

15

Toro 99-0954

PLUG-DRAIN, OIL

$

$

Not available

16

Toro 98-9213

CRANKSHAFT - BBC

$

$

Not available

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 99-0902

$23.99

$

Usually ships in 3-6 days

0

22

Toro 99-0956

SCREW-HEX

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

25

Toro 99-0958

PISTON ASM

$266.99

$

Usually ships in 3-6 days

0

26

Toro 99-0959

SET-RING

$

$

Not available

27

Toro 99-0960

LOCK-PIN, PISTON

$

$

Not available

28

Toro 99-0961

PIN-PISTON

$

$

Not available

29

Toro 99-0962

ROD-CONNECTING

$96.99

$

Usually ships in 3-6 days

0

32

Toro 99-0963

SCREW-ROD, CONNECTING

$

$

Not available

43

Toro 99-0964

SLINGER-OIL, GOVERNOR

$

$

Not available

46

Toro 99-0965

GEAR-CAM

$164.99

$

Usually ships in 3-6 days

0

146

Toro 99-0966

KEY-TIMING

$

$

Not available

741

Toro 99-0967

GEAR-TIMING

$

$

Not available
