26638 - Toro Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE GTS-200 Parts Diagram

Walk-Behind Mower

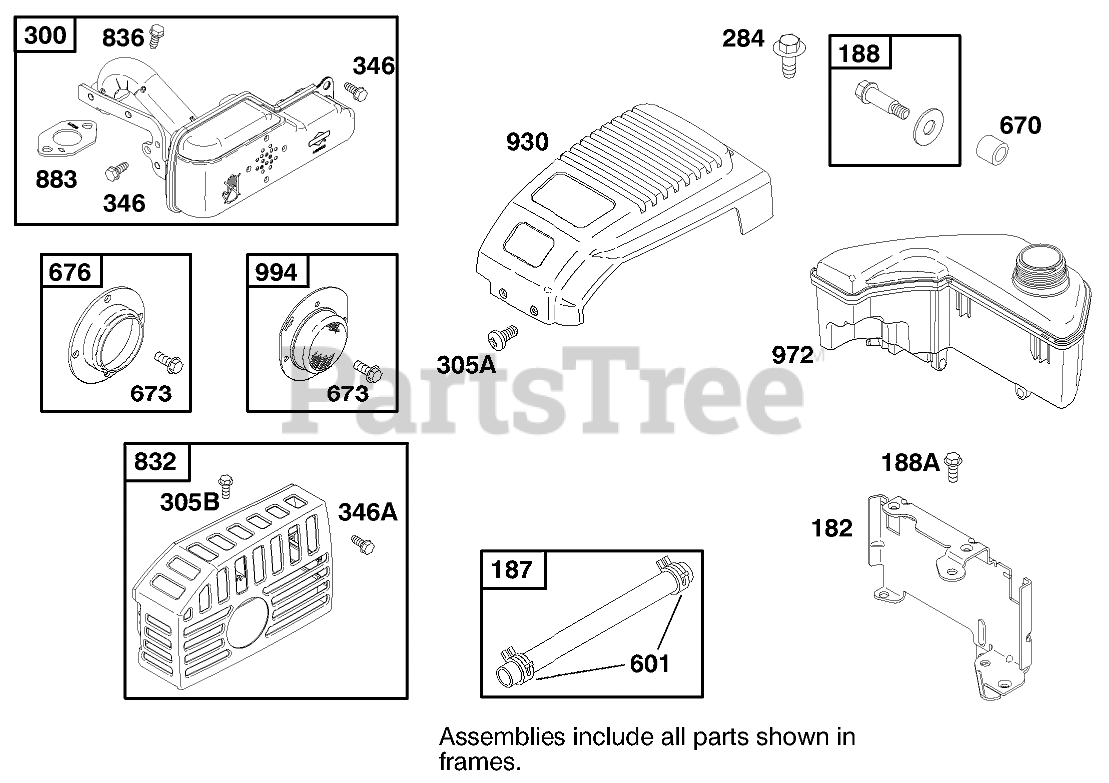

ENGINE GTS-200 Parts Diagram

  • Title
182

Toro 98-9205

BRACKET-TANK, FUEL

$

$

Not available

187

Toro 99-0992

LINE-FUEL

$

$

Not available

188

Toro 99-0993

SCREW-SHOULDER

$

$

Not available

188A

Toro 98-9202

SCREW-BRACKET, TANK

$

$

Not available

284

Toro 99-0994

SCREW-HH

$

$

Not available

300

Toro 99-0995

MUFFLER-EXHAUST

$

$

Not available

305A

Toro 98-9204

SCREW-SHROUD

$6.49

$

Usually ships in 3-6 days

0

305B

Toro 99-0998

HEX SCREW

$

$

Not available

346

Toro 99-1047

SCREW-HH

$

$

Not available

346A

Toro 99-0999

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

601

Toro 99-0996

HOSE CLAMP

$

$

Not available

670

Toro 99-0997

SPACER-TANK, FUEL

$

$

Not available

673

Toro 99-1043

SCREW
(Superseded to 100-9148)

$

$

Not available

676

Toro 99-1044

DEFLECTOR-MUFFLER

$

$

Not available

832

Toro 98-9206

GUARD-MUFFLER

$133.99

$

Usually ships in 3-6 days

0

836

Toro 99-0941

SCREW-HH

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Gasket Set-Part No. 99-0902

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set-Part No. 99-0904

$

$

Not available

930

Toro 98-9203

GUARD-REWIND

$79.99

$

Usually ships in 3-6 days

0

972

Toro 99-1000

TANK-FUEL

$

$

Not available

994

Toro 94-1681

ARRESTOR - SPARK

$

$

Not available
