26638 - Toro Walk-Behind Mower (SN: 200000001 - 200999999) (2000) BBC ASSEMBLY Parts Diagram

Walk-Behind Mower

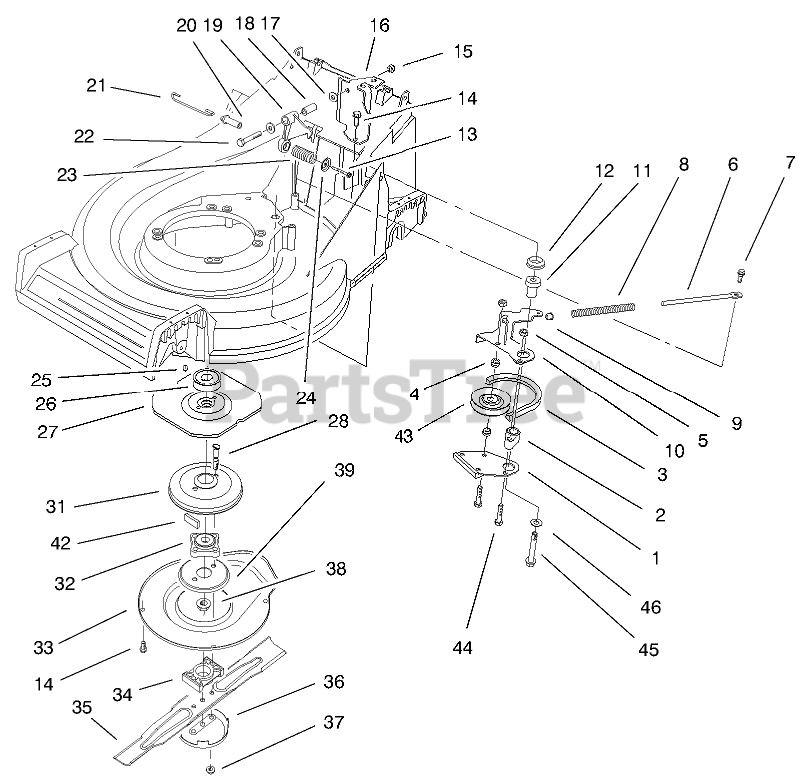

BBC ASSEMBLY Parts Diagram

  • Title
1

Toro 65-5780

BRAKE SHOE

$89.99

$

Usually ships in 3-6 days

0

2

Toro 65-5070

BRAKE PLATE HUB

$

$

Not available

3

Toro 65-5740

V-BELT

$29.99

$

In Stock, only 1 left!

0

4

Toro 65-5130

IDLER PULLEY HUB

$10.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

6

Toro 65-5320

SPRING ROD

$

$

Not available

7

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

8

Toro 71-3640

COMPRESSION SPRING

$7.49

$

Usually ships in 3-6 days

0

9

Toro 66-0350

SPACER

$

$

Not available

10

Toro 66-0090

Lever
(Superseded to 66-0090-03)

$29.99

$

Usually ships in 3-6 days

0

11

Toro 65-5720

BBC PM BUSHING

$

$

Not available

12

Toro 253-151

V-RING SEAL

$

$

Not available

13

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

15

$2.99

$

Usually ships in 3-6 days

0

16

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 65-5690

STRAIGHT BUSHING

$

$

Not available

19

Toro 65-5700

CRANK

$6.99

$

Usually ships in 3-6 days

0

20

Toro 71-3660

SPRING PIN

$15.99

$

Usually ships in 3-6 days

0

21

Toro 71-3650

CONTROL LINK

$7.49

$

Usually ships in 3-6 days

0

22

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

23

Toro 71-3630

COMPRESSION SPRING

$36.99

$

In Stock, only 1 left!

0

24

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

25

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

26

Toro 62-7560

PULLEY

$46.99

$

In Stock, only 1 left!

0

27

Toro 65-5300

FLYWHEEL - BBC
(Superseded to 65-5300-03)

$

$

Not available

28

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

31

Toro 62-3890

BRAKE DRUM

$

$

Not available

32

Toro 42-6890

HUB ASM

$95.99

$

Usually ships in 3-6 days

0

33

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

34

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

35

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

36

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

37

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

38

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

39

Toro 65-5330

Screen-BBC
(Superseded to 65-5330-03)

$

$

Not available

42

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 10

0

43

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

44

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

45

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

46

Toro 65-5380

WASHER-PLAIN

$

$

Not available
