26638 - Toro Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

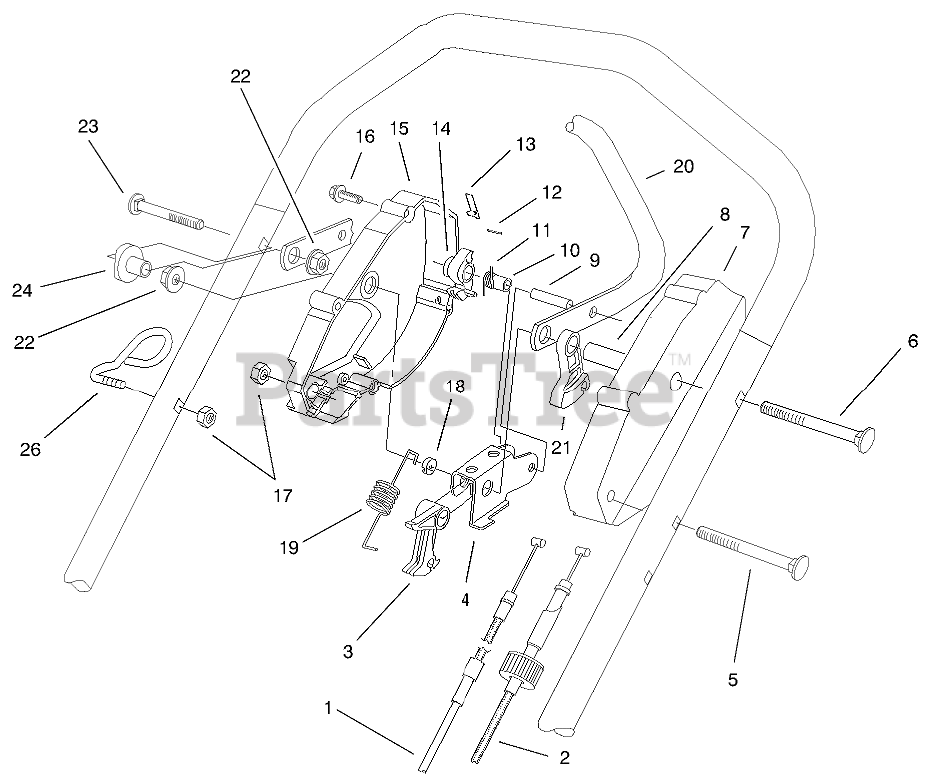

HANDLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 93-6629

CABLE - BRAKE

$75.99

$

In Stock, only 2 left!

0

2

Toro 93-6633

CABLE - TRACTION

$88.99

$

Usually ships in 3-6 days

0

3

Toro 46-5540

LEVER-CABLE

$17.99

$

In Stock, only 2 left!

0

4

Toro 66-0180

ROCKER

$

$

Not available

5

Toro 46-6431

HANDLE SCREW

$

$

Not available

6

Toro 17-9425

Screw-Handle
(Superseded to 17-9429)

$

$

Not available

7

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

8

Toro 46-5590

TUBING-SPACER

$17.99

$

Usually ships in 3-6 days

0

9

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

10

Toro 46-5550

SPACER

$17.99

$

Usually ships in 3-6 days

0

11

Toro 46-5510

SPRING-TORSION

$5.49

$

Usually ships in 3-6 days

0

12

Toro 57-6290

PIN-INSERT

$3.49

$

Usually ships in 3-6 days

0

13

Toro 52-7410

SPRING-LEAF

$

$

Not available

14

Toro 46-5530

HOOK-CONTROL

$

$

Not available

15

Toro 66-0160

Housing-Control
(Superseded to 12-3429)

$

$

Not available

16

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

17

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

18

Toro 66-0170

WASHER-NYLON

$4.99

$

In Stock, Qty 6

0

19

Toro 66-0190

SPRING-DETENT

$30.99

$

Usually ships in 3-6 days

0

20

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

21

Toro 46-5520

LEVER-TRACTION

$

$

Not available

22

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

23

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 8

0

24

Toro 66-0330

SPACER-SUPPORT

$6.99

$

Usually ships in 3-6 days

0

26

Toro 95-4478

GUIDE-ROPE

$

$

Not available
