26636 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

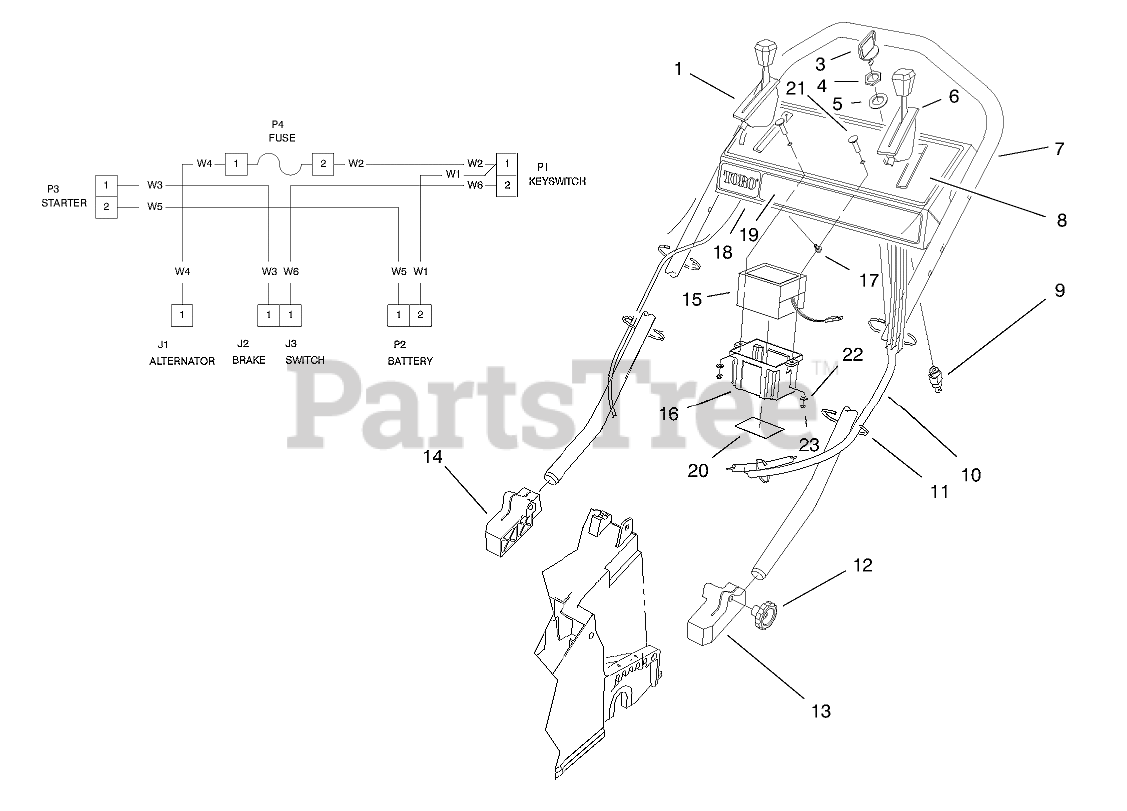

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6632

CONTROL-SPEED, GROUND

$82.99

$

Usually ships in 3-6 days

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

6

Toro 93-6631

CONTROL - THROTTLE

$82.99

$

Usually ships in 3-6 days

0

7

Toro 94-4910

HANDLE

$

$

Not available

8

Toro 95-3014

DECAL - INSTRUCTION

$

$

Not available

9

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, only 1 left!

0

10

Toro 80-4795

WIRE HARNESS

$

$

Not available

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

13

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

14

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

15

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

16

Toro 95-3017

COVER - BATTERY

$30.99

$

Usually ships in 3-6 days

0

17

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, only 4 left!

0

18

Toro 95-6133

Panel-Control (Incl. Ref. #8 & 19)

$114.99

$

Usually ships in 3-6 days

0

19

Toro 71-9871

DECAL - PANEL KEY

$

$

Not available

20

Toro 93-6668

DECAL-BATTERY

$18.99

$

Usually ships in 3-6 days

0

21

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

22

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0

Toro 94-1682

Fuse-5 Amp

Note: Not illustrated

$

$

Currently unavailable
