26635 BC - Toro 53cm Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS-150 Parts Diagram

53cm Walk-Behind Mower

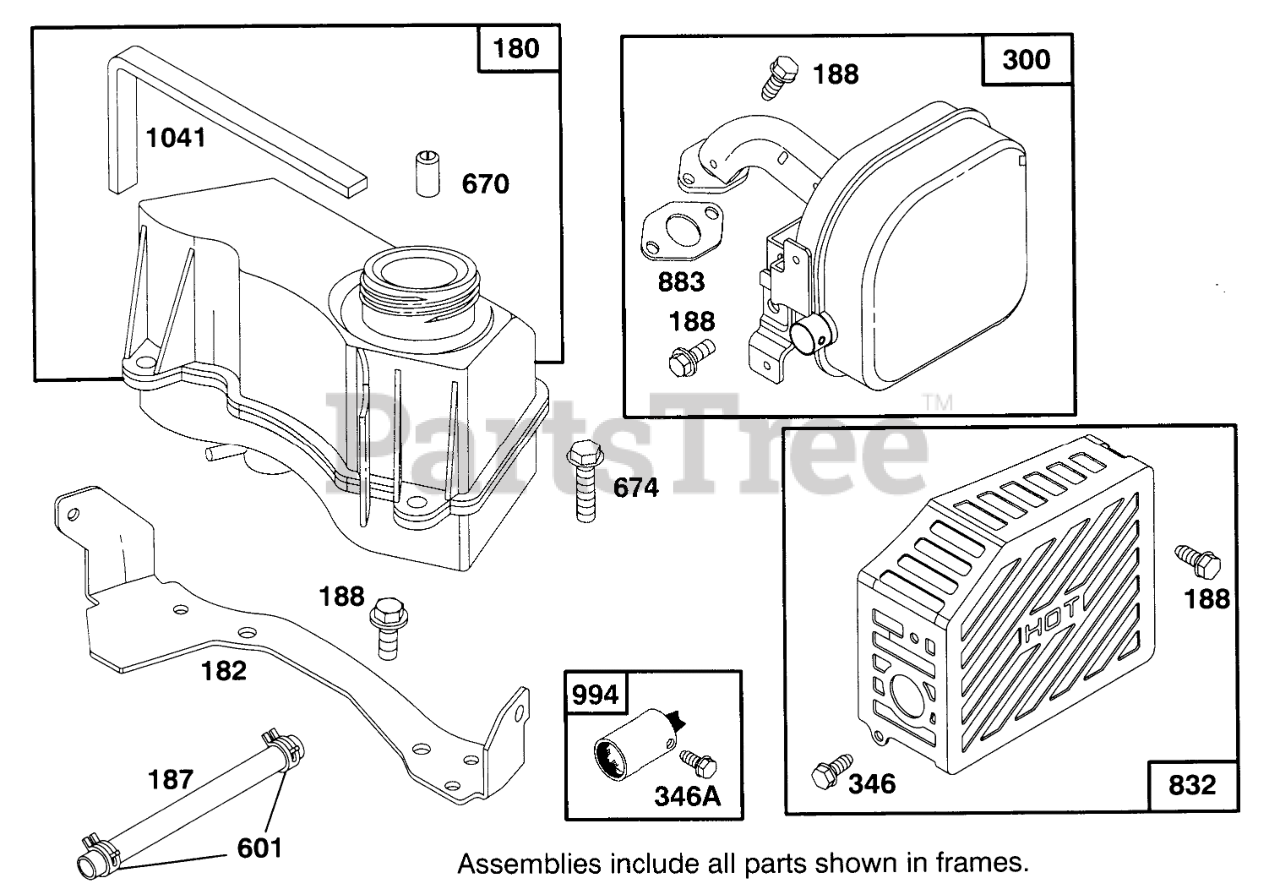

ENGINE GTS-150 Parts Diagram

  • Title
180

Toro 77-7580

PLUG - OIL DRAIN
(Superseded to 77-9240)

$

$

Not available

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

Toro 77-8620

HOSE - FUEL

$

$

Not available

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-9430

Screw-Hex
(Superseded to 99-0999)

$8.49

$

Usually ships in 3-6 days

0

346A

Toro 77-9050

SCREW - ARRESTER MTG.
(Superseded to 94-6783)

$

$

Not available

601

Toro 77-8630

CLAMP - CL PIPE

$

$

Not available

670

Toro 77-9030

Spacer-Fuel Tank (Includes 2)

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-8660

Guard-Muffler
(Superseded to 77-9290)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

994

Toro 77-9040

ARRESTER - SPARK

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
