26635 B - Toro 53cm Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE GTS-150 Parts Diagram

53cm Walk-Behind Mower

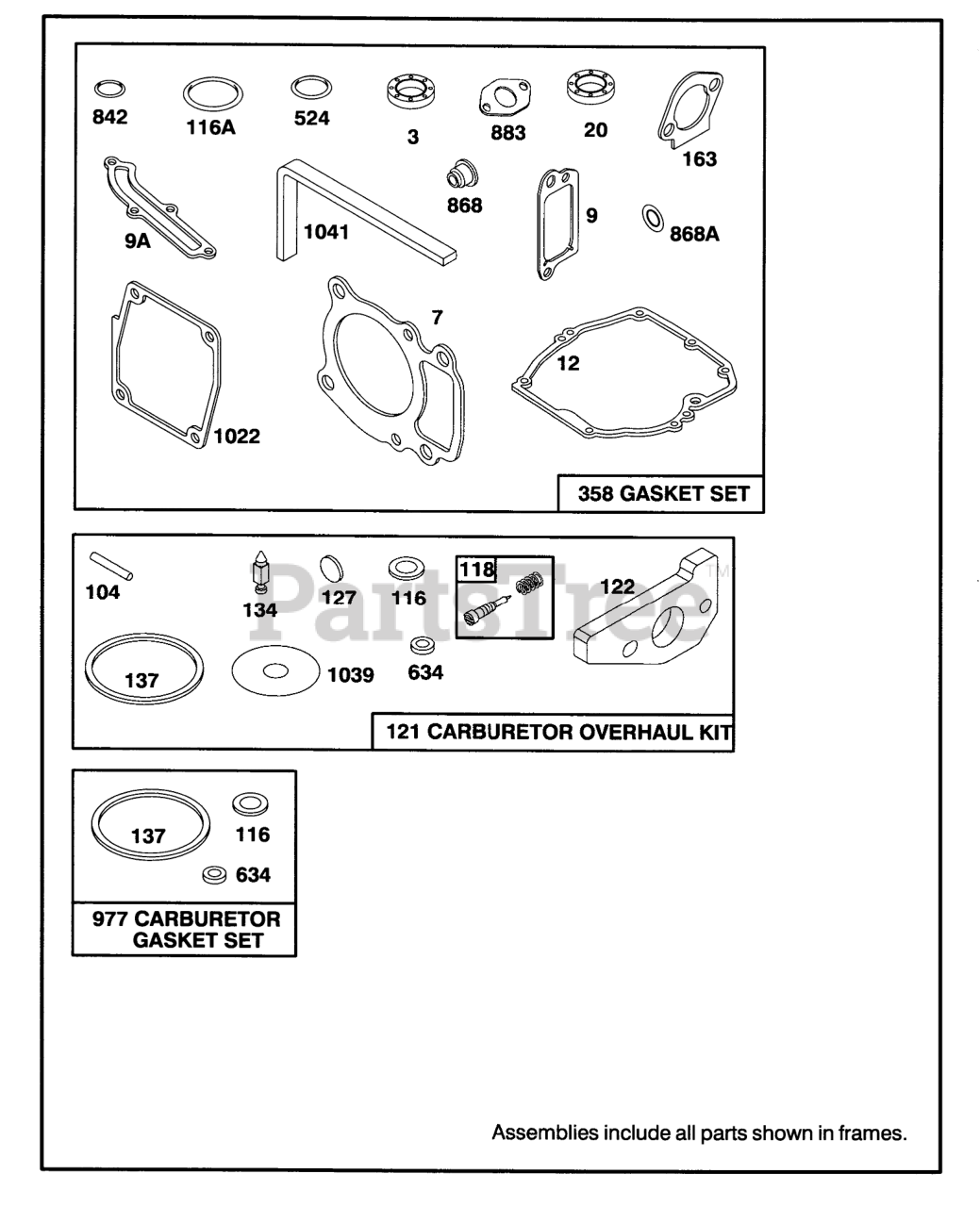

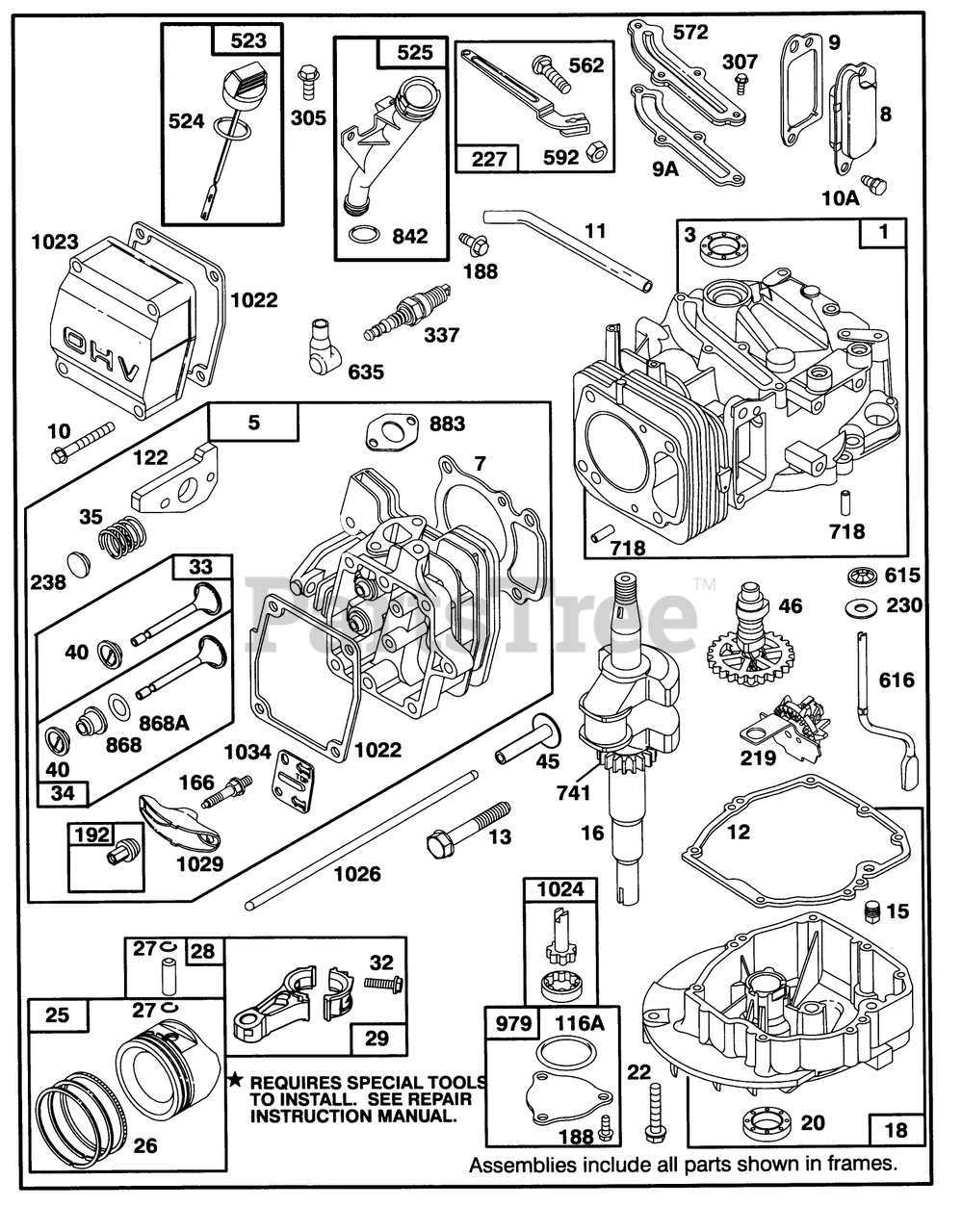

ENGINE GTS-150 Parts Diagram

  • Title
3

Toro 77-9060

SEAL - OIL

Note: Included in Gasket Set

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set

$29.99

$

In Stock, only 1 left!

0

9

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set

$4.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set

$12.99

$

Usually ships in 3-6 days

0

12

Toro 77-7550

ENGINE BASE GASKET

Note: Included in Gasket Set

$23.99

$

In Stock, only 1 left!

0

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set

$23.99

$

Usually ships in 3-6 days

0

104

Toro 77-8180

FLOAT HINGE PIN

Note: Included in Carburetor Overhaul Kit

$

$

Not available

116

Toro 77-8210

SEALING GASKET

Note: Included In Carburetor Gasket Set

$6.99

$

In Stock, Qty 7

0

116

Toro 77-8210

SEALING GASKET

Note: Included in Carburetor Overhaul Kit

$6.99

$

In Stock, Qty 7

0

116A

Toro 77-7660

O RING SEAL

Note: Included in Gasket Set

$13.99

$

Usually ships in 3-6 days

0

118

Toro 77-8230

VALVE KIT - NEEDLE

Note: Included in Carburetor Overhaul Kit

$19.99

$

Usually ships in 3-6 days

0

121

Toro 77-8920

CARBURATOR OVERHAUL KIT

Note: Included in Carburetor Overhaul Kit

$64.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit

$31.99

$

Usually ships in 3-6 days

0

127

Toro 77-8100

PLUG

Note: Included in Carburetor Overhaul Kit

$2.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Float (Includes Seat)

Note: Included in Carburetor Overhaul Kit

$23.99

$

Usually ships in 3-6 days

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Overhaul Kit

$8.49

$

In Stock, only 3 left!

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included In Carburetor Gasket Set

$8.49

$

In Stock, only 3 left!

0

163

Toro 77-7960

AIR CLEANER GASKET

Note: Included in Gasket Set

$21.99

$

Usually ships in 3-6 days

0

358

Toro 77-8900

GASKET SET

$

$

Not available

524

Toro 77-7270

O-RING

Note: Included in Gasket Set

$10.99

$

Usually ships in 3-6 days

0

634

Toro 77-8150

SEAL WASHER

Note: Included in Carburetor Overhaul Kit

$

$

Not available

842

Toro 77-7300

O-RING

Note: Included in Gasket Set

$4.99

$

In Stock, Qty 7

0

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

1022

Toro 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set

$20.99

$

In Stock, only 2 left!

0

1039

Toro 77-7250

FLOAT LIMITER

Note: Included in Carburetor Overhaul Kit

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set

$

$

Not available
