26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE AND BELT GUIDE ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

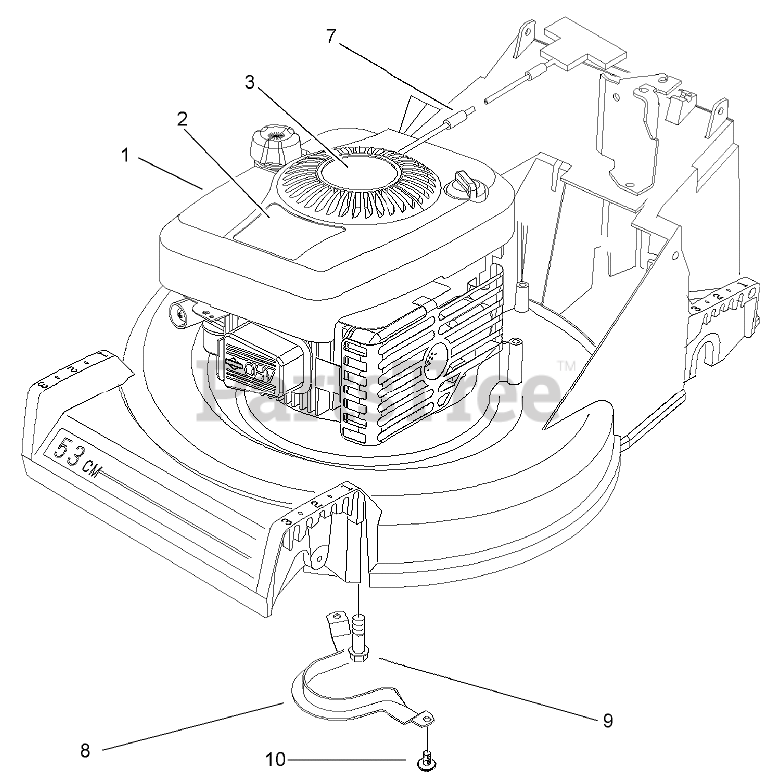

ENGINE AND BELT GUIDE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-Briggs and Stratton, 122602-0120-E1

Note: Not serviced separately

$

$

Not available

2

Toro 99-6015

DECAL-RECOIL

$6.99

$

Usually ships in 3-6 days

0

3

Toro 105-8649

DECAL-RECOIL

$

$

Not available

7

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

8

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

9

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0
