26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 250000001 - 250999999) (2005) REAR DRIVE ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

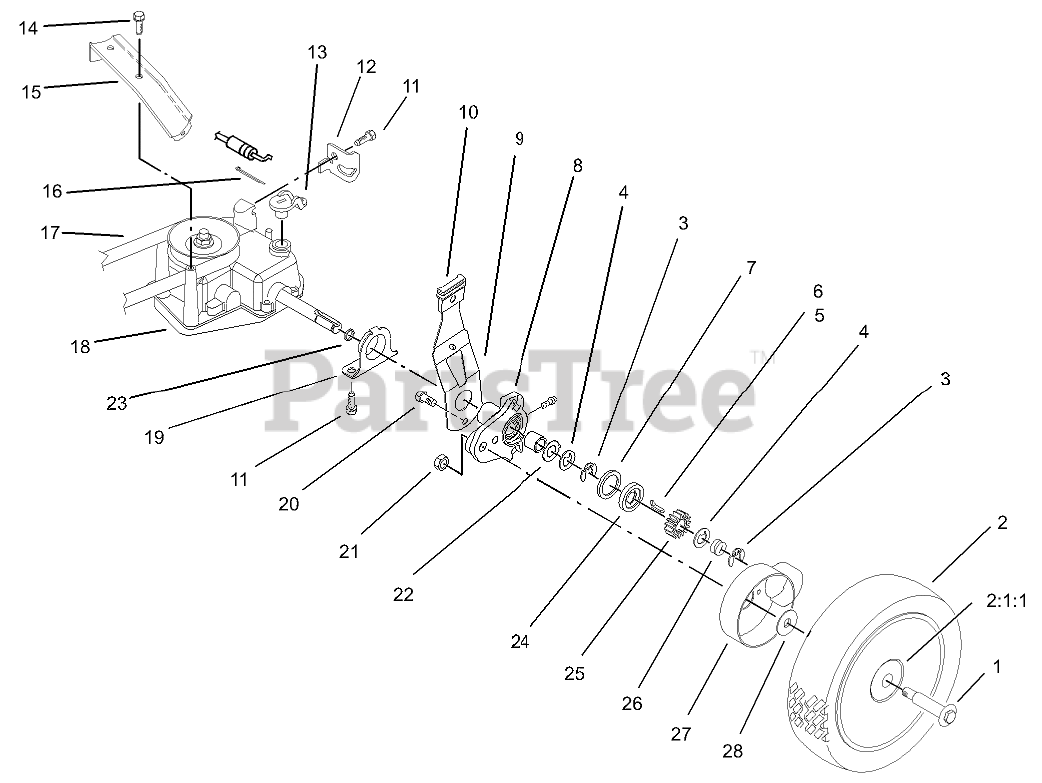

REAR DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 99-8136

WHEEL AND GEAR ASM

$71.99

$

Usually ships in 3-6 days

0

2:1:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

2:1

Wheel ASM

Note: Not serviced separately

$

$

Not available

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

5

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

8

Toro 65-5042

PIVOT ARM ASM

$64.99

$

Usually ships in 3-6 days

0

9

Toro 65-5440

SPRING ARM ASM

$27.99

$

Usually ships in 3-6 days

0

10

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 76-2930

RETAINER-CABLE

$

$

Not available

13

Toro 76-0920

LEVER-SHIFT

$7.49

$

Usually ships in 3-6 days

0

14

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

15

Toro 65-5190-03

BRACKET-GUIDE, BELT

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

17

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 19

0

18

Toro 62-6673

GEARCASE ASM

$876.99

$

Usually ships in 3-6 days

0

19

Toro 66-0360

CAP-END

$9.99

$

Usually ships in 3-6 days

0

20

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

21

$2.99

$

In Stock, Qty 20+

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

23

Toro 237-153

O-RING

$4.49

$

In Stock, only 2 left!

0

24

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

25

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

26

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

27

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, Qty 14

0

28

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0
