26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CONTROL ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

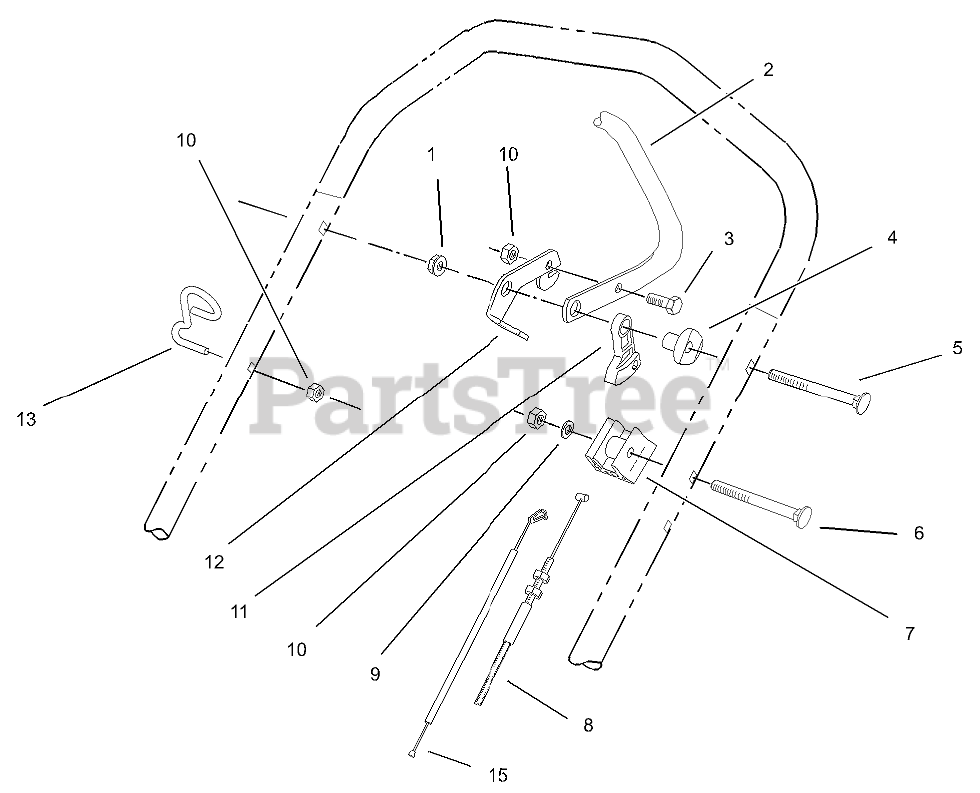

CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

2

Toro 52-7430-03

BAR-CONTROL

$

$

Not available

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 66-0330

SPACER-SUPPORT

$7.49

$

Usually ships in 3-6 days

0

5

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

6

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 71-0960

SUPPORT-CABLE

$9.99

$

Usually ships in 3-6 days

0

8

Toro 93-6634

CABLE-TRACTION

$99.99

$

Usually ships in 3-6 days

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

11

Toro 46-5520

LEVER-TRACTION

$

$

Not available

12

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

13

Toro 95-4478

GUIDE-ROPE

$

$

Not available

15

Toro 93-6628

CABLE-BRAKE

$

$

Not available
