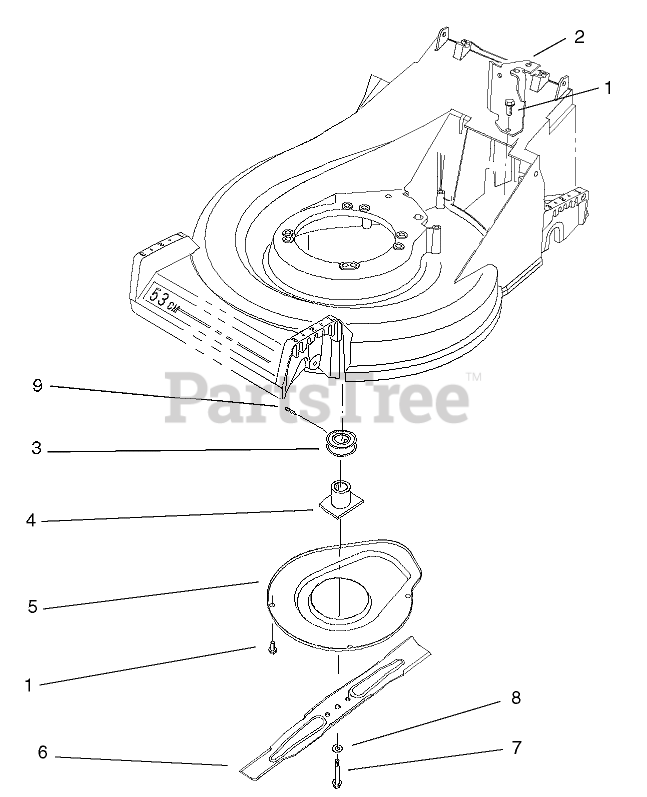

26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 210000001 - 210999999) (2001) BLADE AND BRAKE ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

BLADE AND BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 66-0030-03

BRACKET-CABLE, SUPPORT

$

$

Not available

3

Toro 95-1878

PULLEY

$63.99

$

In Stock, only 2 left!

0

4

Toro 99-5287

ASM-BLADE DRIVER

$28.99

$

Usually ships in 3-6 days

0

5

Toro 65-5200-03

SHIELD-BBC

$

$

Not available

6

Toro 42-1000-03

BLADE
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

7

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

8

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

9

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0
