26634 - Toro 53cm Rear-Bagging Walk-Behind Mower (SN: 210000001 - 210999999) (2001) AIR CLEANER ASSEMBLY Parts Diagram

53cm Rear-Bagging Walk-Behind Mower

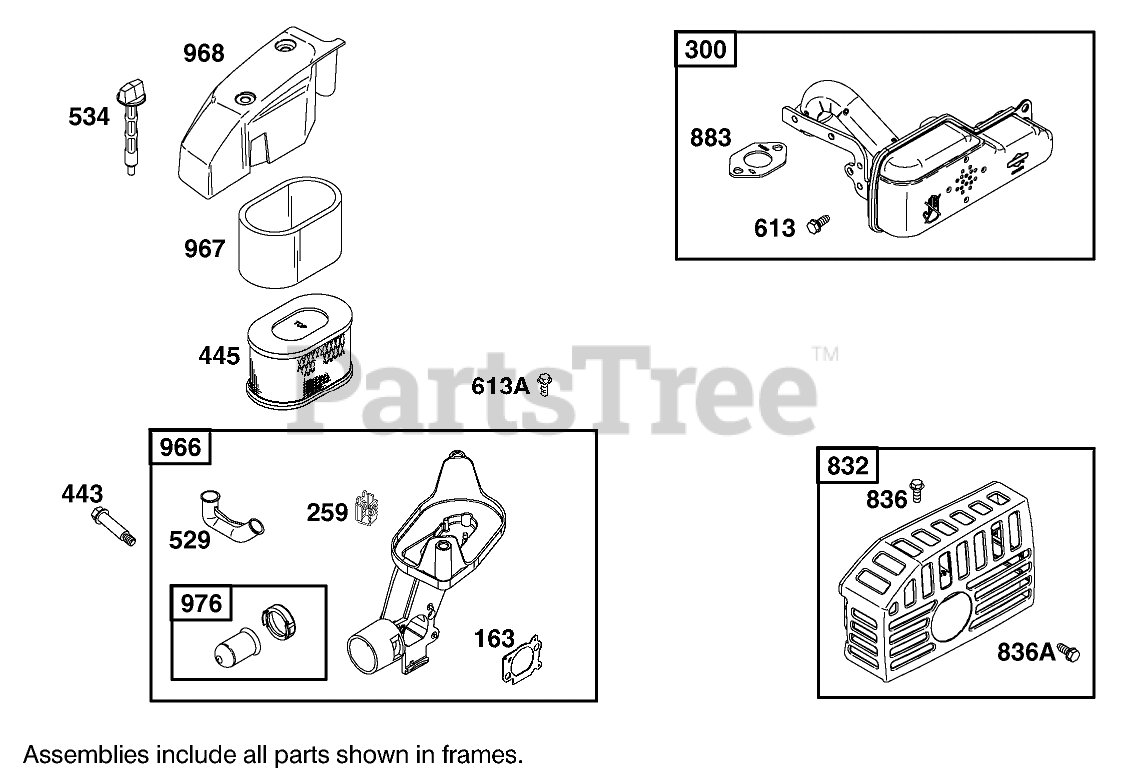

AIR CLEANER ASSEMBLY Parts Diagram

  • Title

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977.

$4.99

$

In Stock, Qty 7

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit-See Ref. 121.

$4.99

$

In Stock, Qty 7

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set-See Ref. 358.

$4.99

$

In Stock, Qty 7

0

259

Toro 99-0984

GROMMET

$8.99

$

Usually ships in 3-6 days

0

300

Toro 99-0995

MUFFLER-EXHAUST

$

$

Not available

443

Toro 99-0990

SCREW-HEX

$

$

Not available

445

Toro 98-9212

ELEMENT-FILTER, AIR

$36.99

$

In Stock, only 1 left!

0

529

Toro 100-5032

GROMMET

$

$

Not available

534

Toro 98-9208

SCREW-COVER, AIR CLEANER

$

$

Not available

613

Toro 99-1047

SCREW-HH

$

$

Not available

613A

Toro 99-0941

SCREW-HH

$

$

Not available

832

Toro 98-9206

GUARD-MUFFLER

$133.99

$

Usually ships in 3-6 days

0

836

Toro 94-1674

SCREW-HH
(Superseded to 99-0999)

$8.49

$

Usually ships in 3-6 days

0

836A

Toro 99-0999

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Gasket Set-See Ref. 358.

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set-See Ref. 1003.

$

$

Not available

966

Toro 99-0979

BASE-CLEANER, AIR

$

$

Not available

967

Toro 99-0989

WRAP-FOAM, PRE-FILTER

$5.49

$

In Stock, Qty 10

0

968

Toro 98-9207

COVER-CLEANER, AIR

$

$

Not available

976

Toro 99-0991

PRIMER

$4.49

$

In Stock, Qty 20+

0
