26633 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

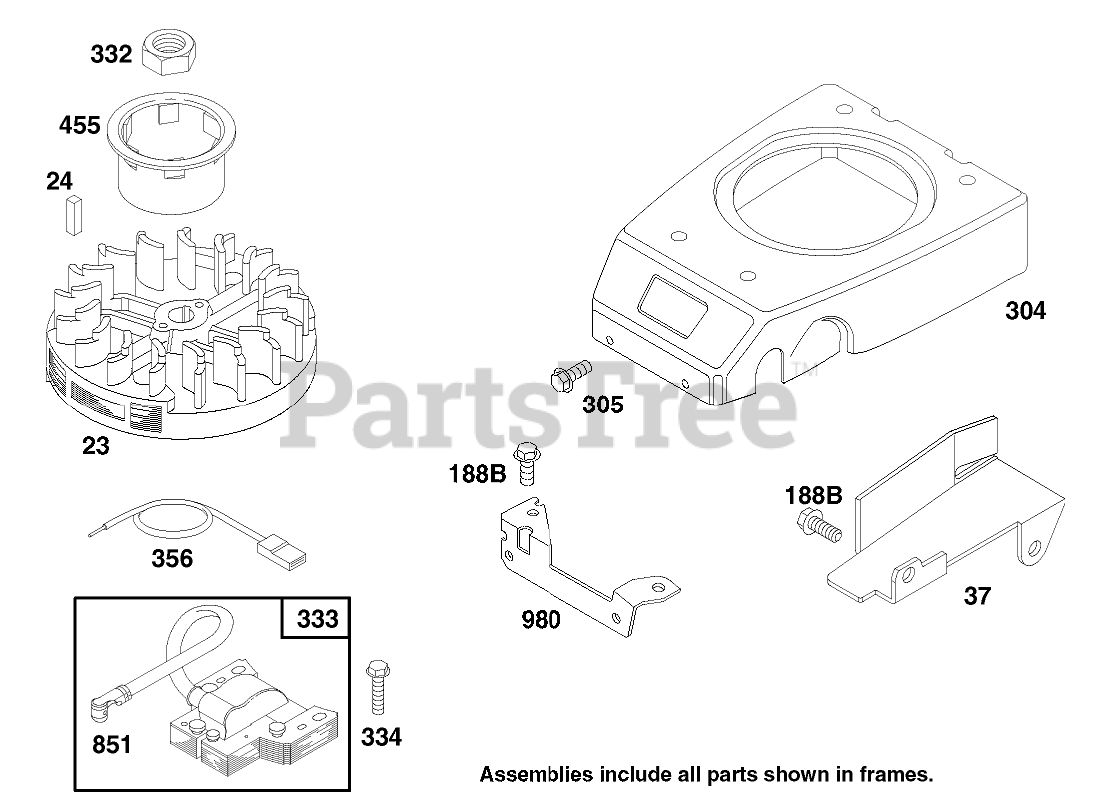

ENGINE GTS 150 Parts Diagram

  • Title
23

Toro 77-8330

FLYWHEEL - MAGNETO

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

37

Toro 77-7190

GUARD - FLYWHEEL

$22.99

$

Usually ships in 3-6 days

0

188B

Toro 77-7450

SCREW - SEM

$

$

Not available

304

Toro 94-1680

Housing-Blower
(Superseded to 77-8260)

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

332

Toro 77-8360

NUT - HEXAGON

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-9420

SCREW - ARMATURE MTG

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$

$

Not available

455

Toro 94-1653

CUP - STARTER

$21.99

$

Usually ships in 3-6 days

0

851

Toro 77-9450

TERMINAL-PLUG, SPARK

$

$

Not available

980

Toro 77-7140

BRACKET-BLOWER HSG

$

$

Not available
