26633 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) DECK ASSEMBLY Parts Diagram

Walk-Behind Mower

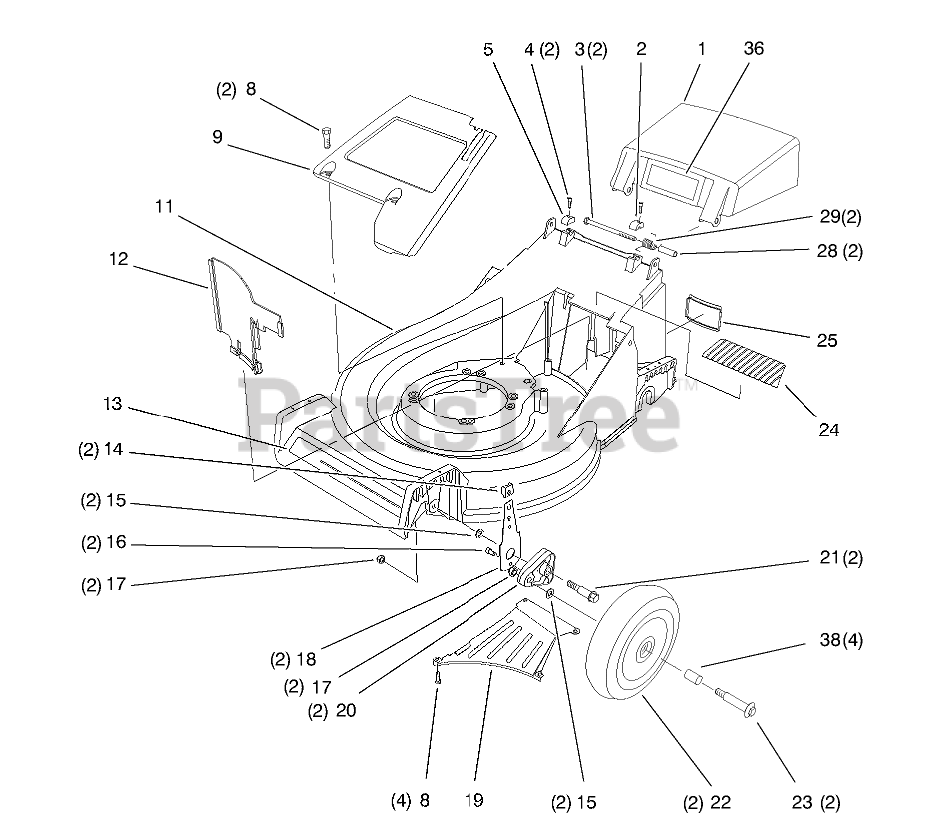

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 17-1569

Door-Discharge (Incl. Ref.#36)

$118.99

$

Usually ships in 3-6 days

0

2

Toro 71-7900

CAP-HINGE BOLT, LH

$5.99

$

Usually ships in 3-6 days

0

3

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

4

Toro 65-5210

SCREW-HSH

$

$

Not available

5

Toro 71-7910

CAP-HINGE BOLT, RH

$5.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$54.99

$

Usually ships in 3-6 days

0

11

Toro 16-1769

Housing (Incl.Ref.# 13)

$

$

Not available

12

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

13

Toro 71-9870

DECAL

$

$

Not available

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 66-0540

FRONT SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

19

Toro 71-9640

Ramp-Discharge
(Superseded to 71-9640-03)

$

$

Not available

20

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

21

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 15

0

22

Toro 14-9949

Asm-Wheel & Tire, 8" (Incl. Ref. #38)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

23

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

24

Toro 71-9920

COVER-TOP

$

$

Not available

25

Toro 71-9650

COVER-ACCESS

$7.99

$

Usually ships in 3-6 days

0

28

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

29

Toro 71-9840

SPRING-DOOR

$14.99

$

Usually ships in 3-6 days

0

36

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

38

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0
