26632 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

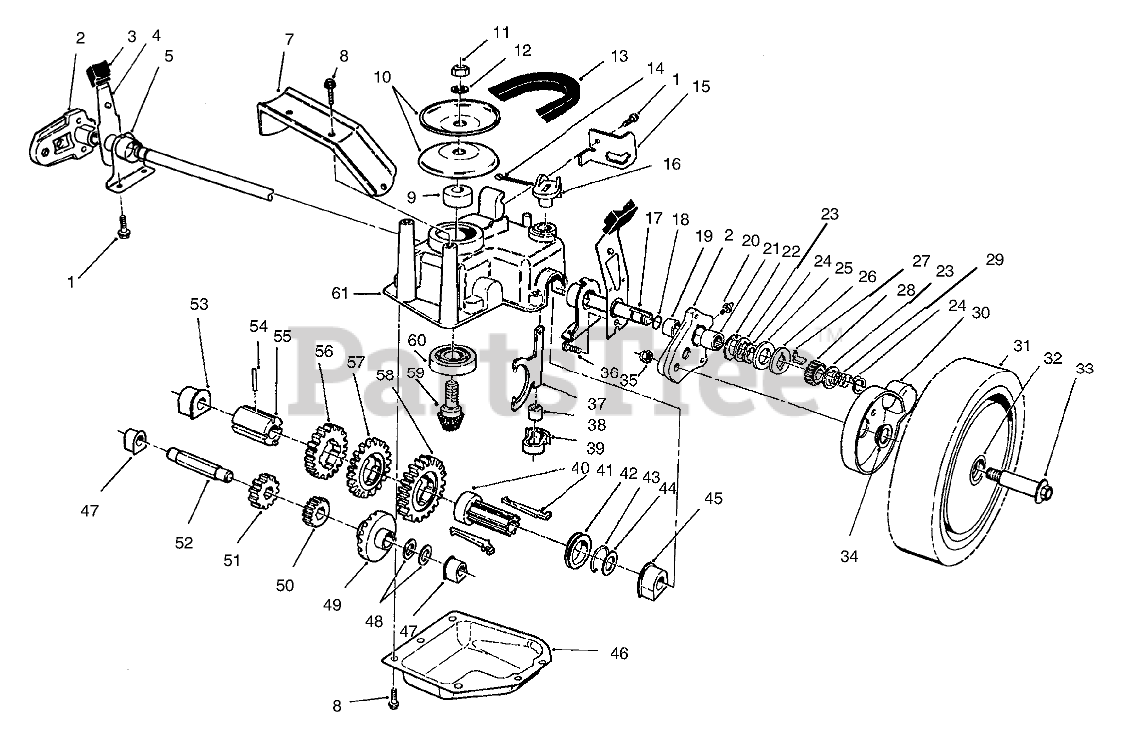

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 65-5042

Pivot Arm Assembly (Incl. Ref. #19-21)

$64.99

$

Usually ships in 3-6 days

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 65-5440

SPRING ARM ASM

$27.99

$

Usually ships in 3-6 days

0

5

Toro 66-0360

CAP-END

$9.99

$

Usually ships in 3-6 days

0

7

Toro 65-5190

Bracket-BeltGuide
(Superseded to 65-5190-03)

$23.99

$

Usually ships in 3-6 days

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 13

0

10

Toro 60-8840

Pulley Half
(Superseded to 100-1176)

$9.99

$

In Stock, Qty 6

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 19

0

14

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

15

Toro 76-2930

RETAINER-CABLE

$

$

Not available

16

Toro 76-0920

LEVER-SHIFT

$7.49

$

Usually ships in 3-6 days

0

17

Toro 65-4770

SHAFT-OUTPUT

$177.99

$

In Stock, only 1 left!

0

18

Toro 237-153

O-RING

$4.49

$

In Stock, only 2 left!

0

19

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

20

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

21

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

23

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

24

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

25

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 20+

0

26

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

27

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 20+

0

28

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

29

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

30

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, Qty 14

0

31

Toro 14-9959

Wheel Tire & Gear Assy. (Incl. Ref. #32)

$62.99

$

In Stock, Qty 9

0

32

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

33

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

34

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0

35

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

36

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

37

Toro 60-8870

YOKE-SHIFT

$24.99

$

In Stock, only 2 left!

0

38

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

39

Toro 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

40

Toro 76-0780

SLEEVE-KEY, SHIFT

$6.99

$

In Stock, only 3 left!

0

41

Toro 76-0760

KEY-SHIFT

$

$

Not available

42

Toro 76-0770

COLLAR-SHIFT

$21.99

$

In Stock, only 1 left!

0

43

Toro 65-5250

CLIP-SPRING

$0.99

$

In Stock, Qty 15

0

44

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

45

Toro 60-8770

BUSHING-OUTPUT

$7.99

$

In Stock, Qty 13

0

46

Toro 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)

$

$

Not available

47

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

48

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

49

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$34.99

$

In Stock, Qty 7

0

50

Toro 55-3780

PINION-20T

$40.99

$

In Stock, only 1 left!

0

51

Toro 55-3800

PINION-25T

$46.99

$

Usually ships in 3-6 days

0

52

Toro 60-8800

SHAFT-INTERMEDIATE
(Superseded to 614696)

$108.99

$

Usually ships in 3-6 days

0

53

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 20+

0

54

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

55

Toro 60-8790

SLEEVE-GEAR

$58.99

$

Usually ships in 3-6 days

0

56

Toro 55-3810

GEAR-39T

$58.99

$

Usually ships in 3-6 days

0

57

Toro 55-3790

GEAR-44T

$73.99

$

Usually ships in 3-6 days

0

58

Toro 55-3770

GEAR-49T

$73.99

$

Usually ships in 3-6 days

0

59

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, only 3 left!

0

60

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

61

Toro 60-8710

CASE-GEAR, UPPER

$

$

Not available

Toro 62-6673

GEARCASE ASM

Note: Not illustrated

$876.99

$

Usually ships in 3-6 days

0
