26631 BC - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

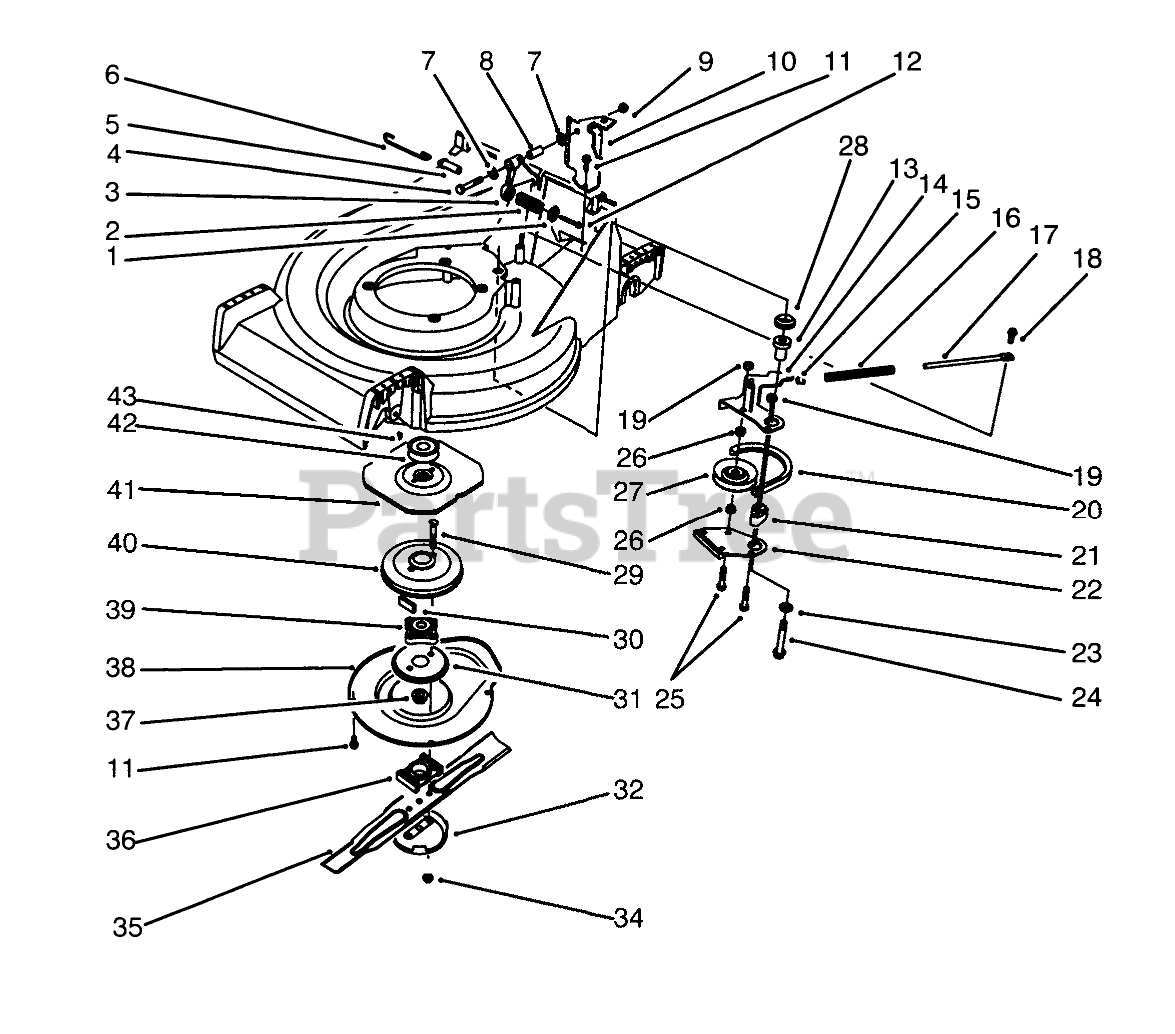

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 65-5280

RETAINER-SPRING

$3.99

$

Usually ships in 3-6 days

0

2

Toro 71-3630

COMPRESSION SPRING

$36.99

$

In Stock, only 1 left!

0

3

Toro 65-5700

CRANK

$6.99

$

Usually ships in 3-6 days

0

4

Toro 322-21

SCREW-HH
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

5

Toro 71-3660

SPRING PIN

$15.99

$

Usually ships in 3-6 days

0

6

Toro 71-3650

CONTROL LINK

$7.49

$

Usually ships in 3-6 days

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 65-5690

STRAIGHT BUSHING

$

$

Not available

$2.99

$

Usually ships in 3-6 days

0

10

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 65-5720

BBC PM BUSHING

$

$

Not available

14

Toro 66-0090

Lever
(Superseded to 66-0090-03)

$29.99

$

Usually ships in 3-6 days

0

15

Toro 66-0350

SPACER

$

$

Not available

16

Toro 71-3640

COMPRESSION SPRING

$7.49

$

Usually ships in 3-6 days

0

17

Toro 65-5320

SPRING ROD

$

$

Not available

18

Toro 65-5670

SCREW-SHOULDER

$

$

Not available

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 65-5740

V-BELT

$29.99

$

In Stock, only 2 left!

0

21

Toro 65-5070

BRAKE PLATE HUB

$

$

Not available

22

Toro 65-5780

BRAKE SHOE

$89.99

$

Usually ships in 3-6 days

0

23

Toro 65-5380

WASHER-PLAIN

$

$

Not available

24

Toro 32144-105

THD FORM SCREW

$

$

Not available

25

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

26

Toro 65-5130

IDLER PULLEY HUB

$10.99

$

Usually ships in 3-6 days

0

27

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

28

Toro 253-151

V-RING SEAL

$

$

Not available

29

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

30

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 10

0

31

Toro 65-5330

Screen-BBC
(Superseded to 65-5330-03)

$

$

Not available

32

Toro 80-2770

CUP-SCALP, ANTI

$17.99

$

Usually ships in 3-6 days

0

34

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

35

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

36

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$24.99

$

Usually ships in 3-6 days

0

37

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

38

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

39

Toro 42-6890

HUB ASM

$101.99

$

Usually ships in 3-6 days

0

40

Toro 62-3890

BRAKE DRUM

$

$

Not available

41

Toro 65-5300

FLYWHEEL - BBC
(Superseded to 65-5300-03)

$

$

Not available

42

Toro 62-7560

PULLEY

$46.99

$

In Stock, only 1 left!

0

43

Toro 3257-17

KEY-WOODRUFF

$6.49

$

In Stock, only 1 left!

0
