26631 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE GTS-150 Parts Diagram

Walk-Behind Mower

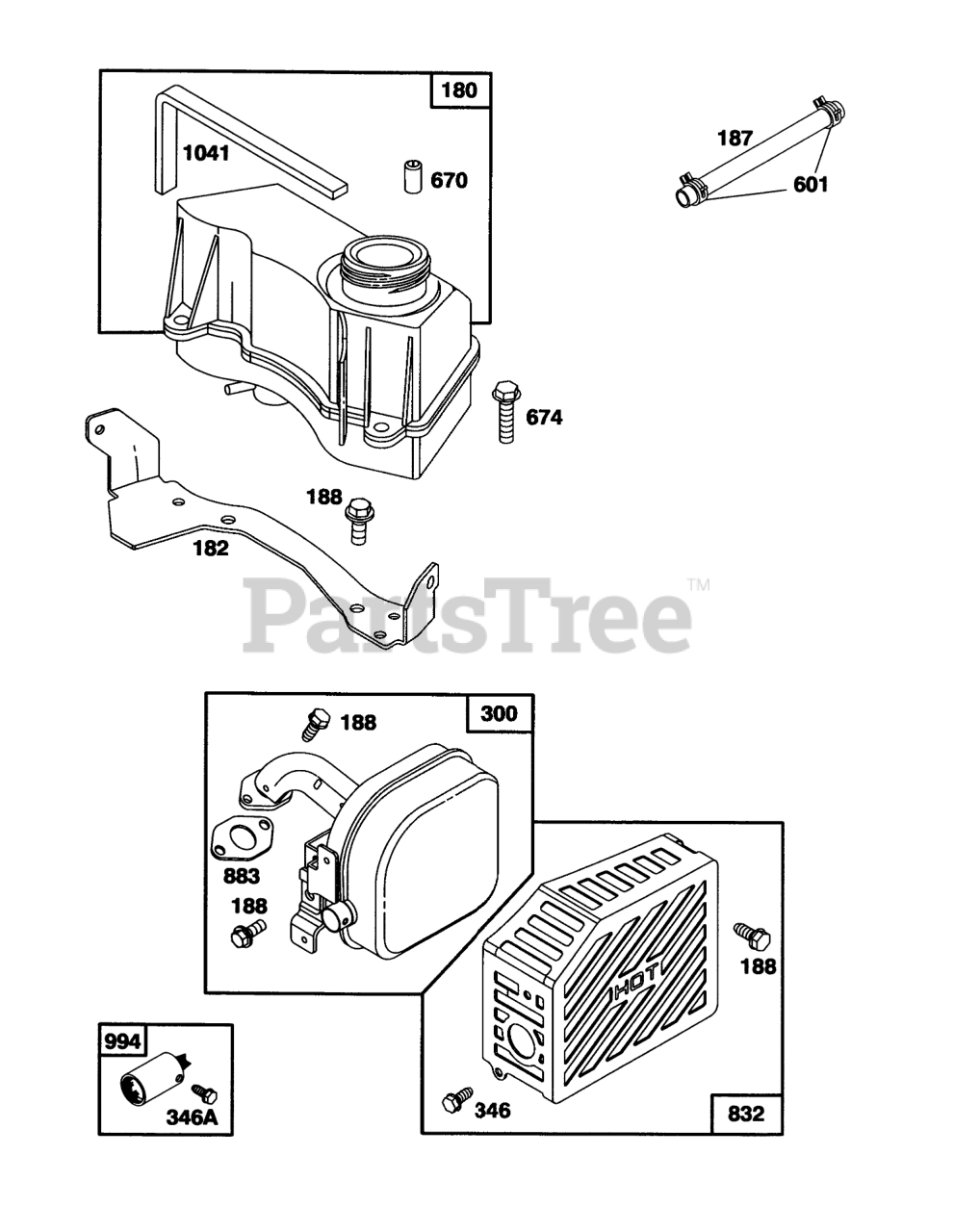

ENGINE GTS-150 Parts Diagram

  • Title
180

Toro 77-8580

TANK ASSY - FUEL

$181.99

$

Usually ships in 3-6 days

0

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

Toro 77-8620

HOSE - FUEL

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

346A

Toro 77-9050

SCREW - ARRESTER MTG.
(Superseded to 94-6783)

$

$

Not available

601

Toro 77-8630

CLAMP - CL PIPE

$

$

Not available

670

Toro 77-9030

Spacer-Fuel Tank (Incl. 2)

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

MUFFLER GUARD BLACK

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set

$

$

Not available

994

Toro 77-9040

ARRESTER - SPARK

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set

$

$

Not available
