26630 BC - Toro 53cm Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

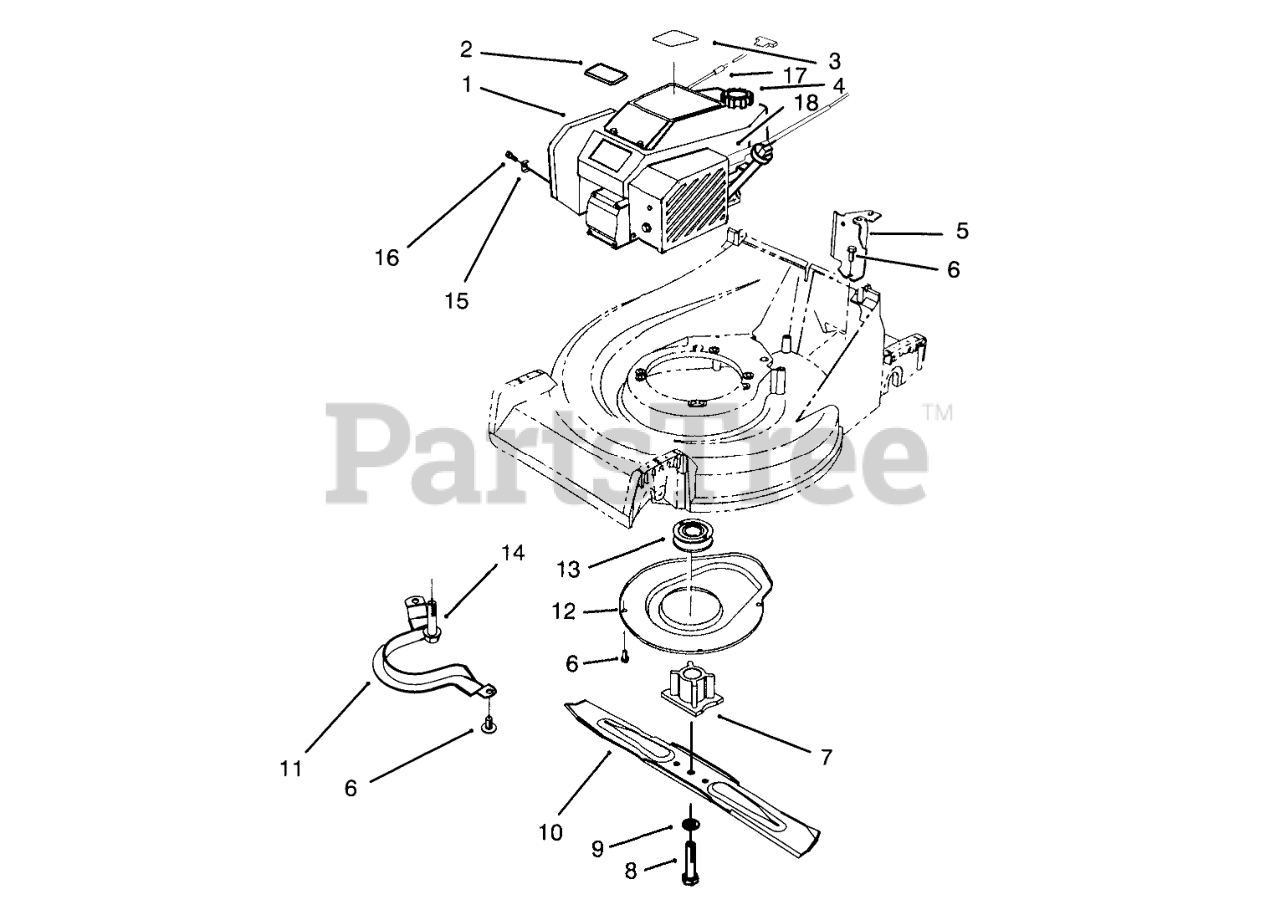

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1368

Engine
(Superseded to 77-9280)

$1086.99

$

In Stock, only 1 left!

0

2

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 92-7857

DECAL - ENGINE
(Superseded to 93-4355)

$

$

Not available

4

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

5

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

7

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

8

Toro 26-0670

SCREW-BLADE

$

$

Not available

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

11

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

12

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

13

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

14

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

15

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

16

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

18

Toro 77-7120

BRAKE COVER-P/W ENGINE
(Superseded to 77-9550)

$

$

Not available
