26626 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) CRANKCASE ASSEMBLY (ENGINE MODEL NO. VML0-3) Parts Diagram

Walk-Behind Mower

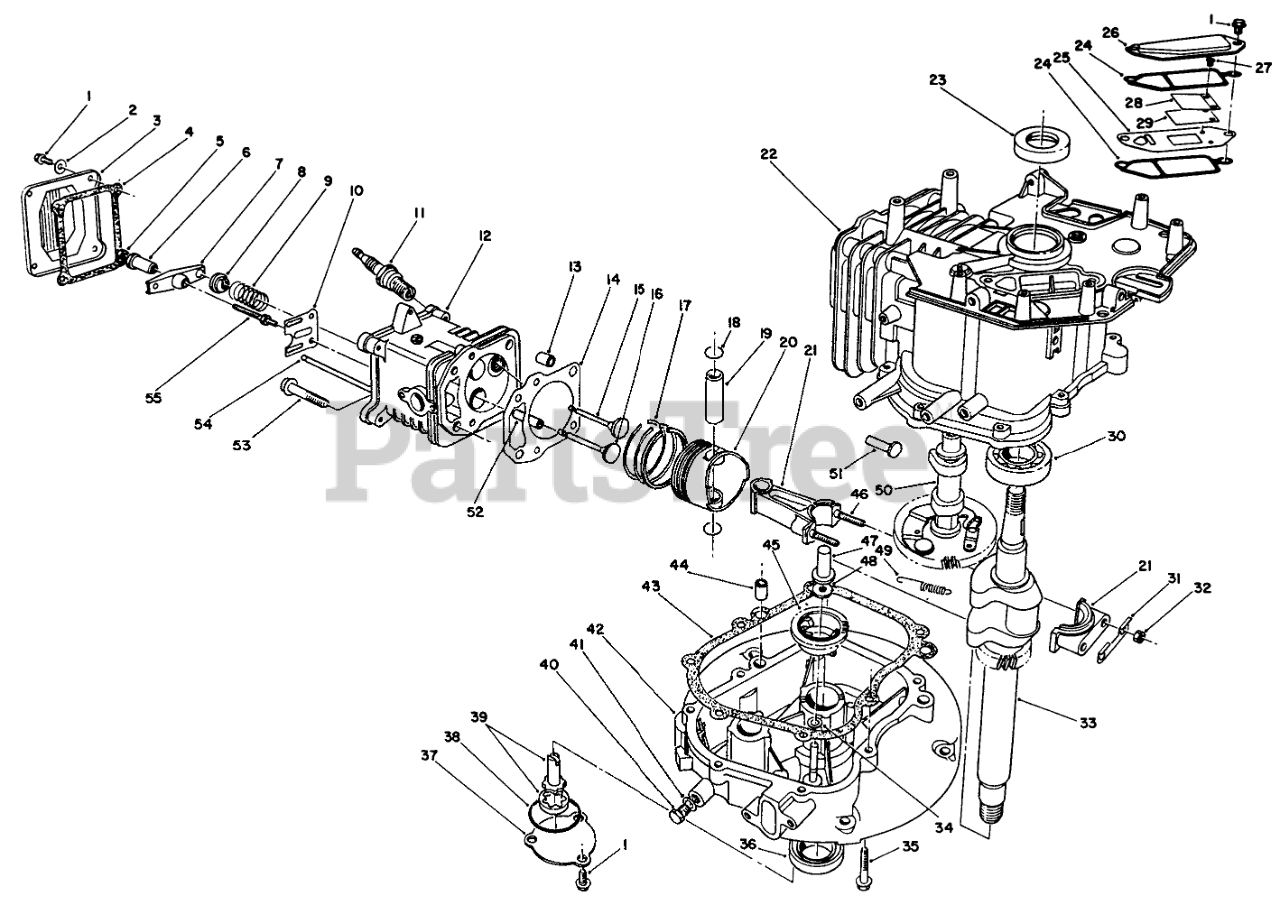

CRANKCASE ASSEMBLY (ENGINE MODEL NO. VML0-3) Parts Diagram

  • Title
1

$

$

Not available

2

Toro 81-3790

WASHER

$

$

Not available

3

Toro 81-3780

COVER

$

$

Not available

4

Toro 81-3770

GASKET

$

$

Not available

5

$

$

Not available

6

Toro 81-3750

PIVOT

$

$

Not available

7

$

$

Not available

8

Toro 81-3730

RETAINER

$

$

Not available

9

Toro 81-3720

SPRING

$

$

Not available

10

Toro 81-3710

GUIDE

$

$

Not available

11

Toro 81-3250

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

12

Toro 81-5540

Head-Cylinder(Incl. Ref. #52)

$858.99

$

Usually ships in 3-6 days

0

13

$

$

Not available

14

Toro 81-4710

GASKET

$37.99

$

Usually ships in 3-6 days

0

Toro 81-3820

GASKET SET

$

$

Not available

15

Toro 81-3660

VALVE-EXHAUST
(Superseded to 106-2795)

$

$

Not available

16

Toro 81-3670

VALVE-INTAKE

$

$

Not available

17

Toro 81-3650

RING SET

$139.99

$

Usually ships in 3-6 days

0

18

Toro 50-0960

CIRCLIP

$

$

Not available

19

$

$

Not available

20

Toro 81-3620

PISTON

$

$

Not available

21

Toro 81-3390

Connecting Rod Assembly (Incl. Ref. #31, 32 & 46)

$

$

Not available

22

Toro 81-3280

Block-Engine (Incl. Ref. #23 & 30)

$878.99

$

Usually ships in 3-6 days

0

23

$32.99

$

Usually ships in 3-6 days

0

24

Toro 81-3300

GASKET

$

$

Not available

25

Plate-Breather

$

$

Not available

26

Toro 81-3320

COVER

$

$

Not available

27

Screw-Reed Valve

$

$

Not available

28

Retainer-Reed Valve

$

$

Not available

29

Valve-Reed

$

$

Not available

Toro 81-3370

Reed Valve Assembly (Incl. Ref. #25 & 27-29)

$

$

Not available

30

Toro 81-3380

BEARING

$109.99

$

Usually ships in 3-6 days

0

31

Toro 81-3400

Plate-Lock
(Superseded to 50-1890)

$

$

Not available

32

$

$

Not available

33

Toro 81-3430

CRANKSHAFT

$

$

Not available

34

Toro 81-3440

WASHER

$

$

Not available

35

$

$

Not available

36

$41.99

$

Usually ships in 3-6 days

0

37

Toro 81-3470

COVER

$

$

Not available

38

Toro 81-3480

O-RING

$9.99

$

Usually ships in 3-6 days

0

39

Toro 81-3490

OIL PUMP

$

$

Not available

40

Toro 81-4970

OIL DRAIN PLUG

$

$

Not available

41

Toro 81-3510

GASKET

$9.49

$

Usually ships in 3-6 days

0

42

Toro 81-3520

Crankcase
(Superseded to 13-5939)

$1298.99

$

Usually ships in 3-6 days

0

43

Toro 81-3530

GASKET

$

$

Not available

44

$

$

Not available

45

Toro 81-3550

GOVERNOR FLYWEIGHT ASM

$

$

Not available

46

$

$

Not available

47

Toro 81-3560

PLUNGER

$

$

Not available

48

Toro 81-3570

WASHER

$

$

Not available

49

Toro 81-3580

SPRING

$

$

Not available

50

Toro 81-5550

Camshaft Assembly (Incl. Ref. #49)

$646.99

$

Usually ships in 3-6 days

0

51

Toro 81-3600

TAPPET

$

$

Not available

52

Toro 81-3830

GUIDE

$

$

Not available

53

$

$

Not available

54

$34.99

$

Usually ships in 3-6 days

0

55

$

$

Not available

Toro 13-5939

ENGINE SHORT BLOCK

$1298.99

$

Usually ships in 3-6 days

0
