26626 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

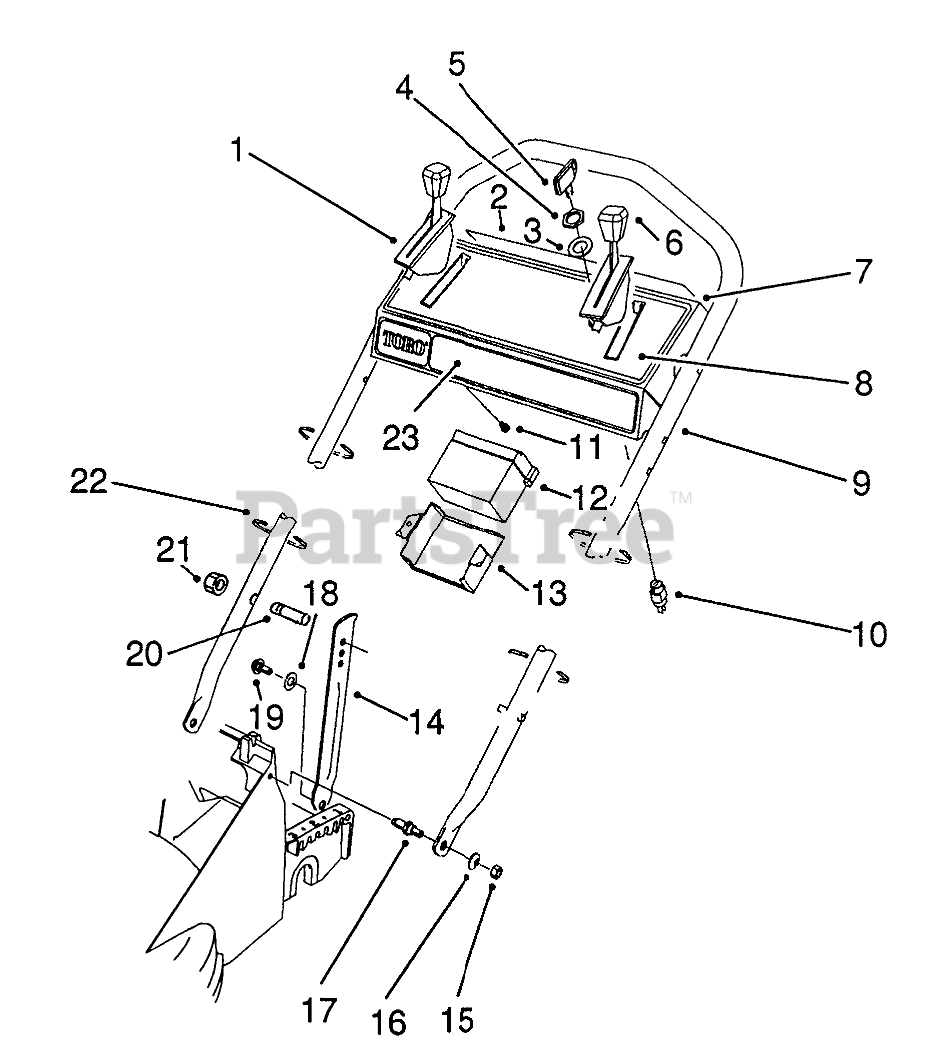

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 76-2710

Control-Ground Speed
(Superseded to 76-2713)

$87.99

$

Usually ships in 3-6 days

0

2

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

3

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

6

Toro 66-0230

ControI-Throttle Bend Type #2 Sheath Lg. 44-3/4" Wire Lg. 2-1/2"
(Superseded to 66-0236)

$109.99

$

Usually ships in 3-6 days

0

7

Toro 13-2229

Panel-Control (Incl. Ref. #8) (Model No. 26624 Only)

$132.99

$

Usually ships in 3-6 days

0

7

Toro 13-6539

Panel-Control (Incl Ref. #8) (Model No. 26626 Only)

$

$

Not available

8

Toro 63-9040

DECAL - CONTROL PANEL

$

$

Not available

8

Toro 66-0270

DECAL - INSTRUCTION

$

$

Not available

9

Toro 66-0320

HANDLE

$

$

Not available

10

Toro 46-5780

Switch-Starter (Incl. Ref. #3-4)

$29.99

$

In Stock, only 1 left!

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

13

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

14

Toro 65-5730

HANDLE LATCH

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

18

Toro 256-313

NYLON WASHER

$

$

Not available

19

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

20

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 65-5650

DECAL - KEY LECTRIC

$

$

Not available

Toro 49-8312

WIRE HARNESS

$101.99

$

Usually ships in 3-6 days

0

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0
