26625 BG - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

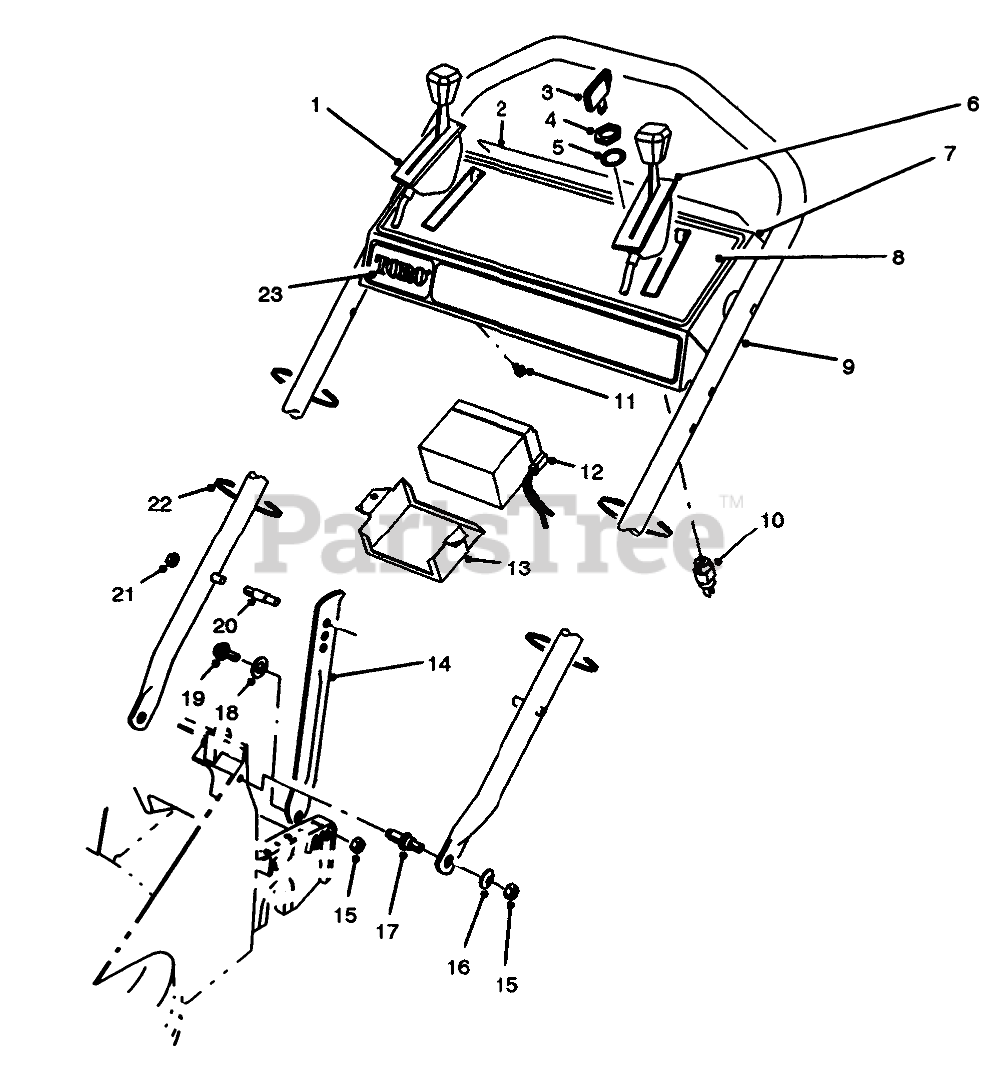

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2710

Control-Ground Speed
(Superseded to 76-2713)

$106.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$10.99

$

Usually ships in 3-6 days

0

Toro 72-8030

DECAL - REAR PANEL/GER

Note: Not illustrated

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

6

Toro 66-0236

THROTTLE CONTROL

$131.99

$

Usually ships in 3-6 days

0

7

Toro 13-5859

Panel-Control (Incl. Ref. #8)

$

$

Not available

8

Toro 66-0280

DECAL - INSTRUCTION

$

$

Not available

9

Toro 84-8331

UPPER HANDLE, PVC DIP

$259.99

$

Usually ships in 3-6 days

0

10

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, only 1 left!

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 55-7520

BATTERY ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

13

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$41.99

$

Usually ships in 3-6 days

0

14

Toro 65-5730

HANDLE LATCH

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

18

Toro 256-313

NYLON WASHER

$

$

Not available

19

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

20

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 8

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 65-5650

DECAL - KEY LECTRIC

$

$

Not available

Toro 49-8312

WIRE HARNESS

Note: Not illustrated

$115.99

$

Usually ships in 3-6 days

0

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$

$

Not available
