26625 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

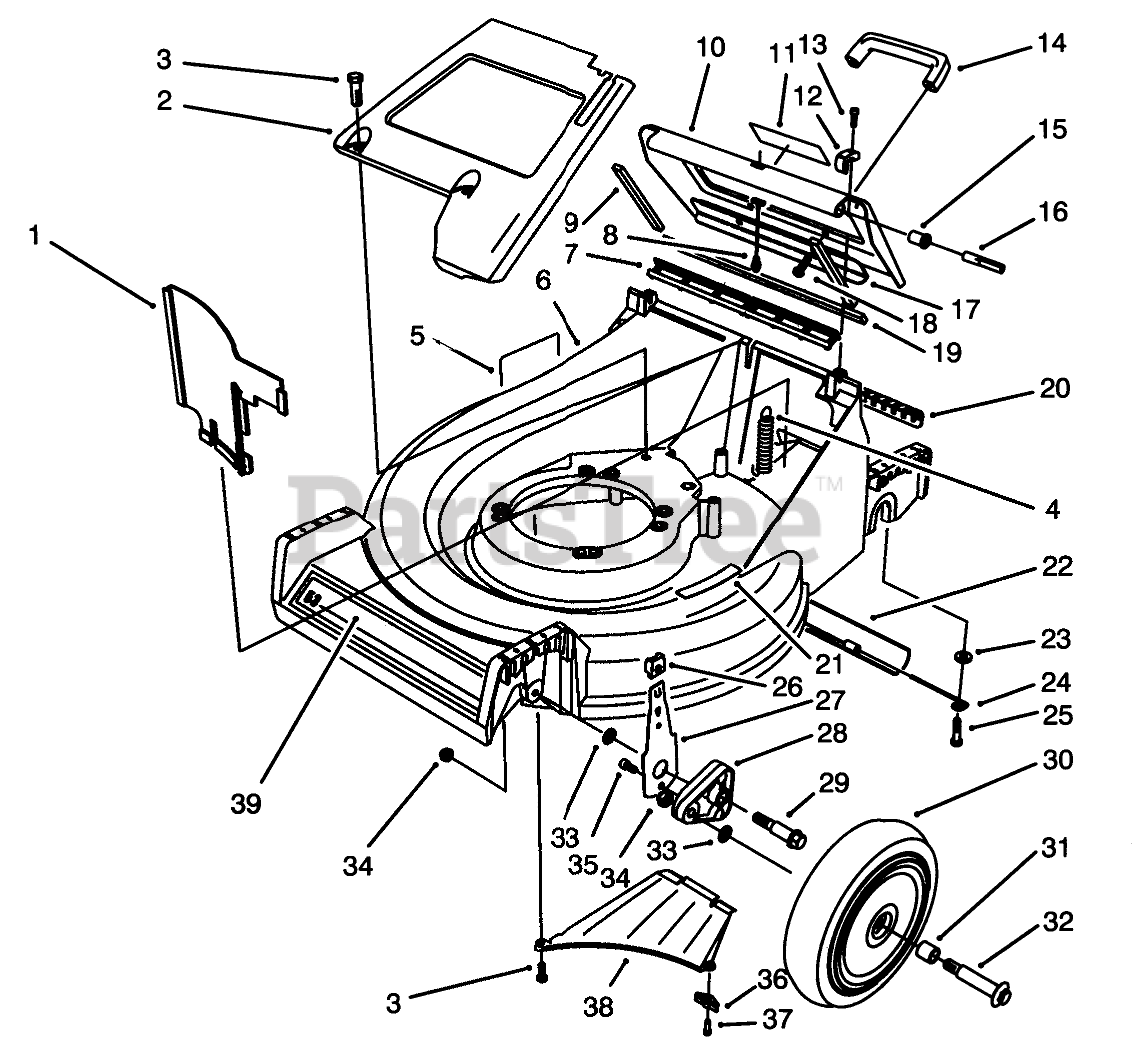

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

2

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$54.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 65-5360

EXTENSION-SPRING

$27.99

$

Usually ships in 3-6 days

0

5

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

6

Toro 13-5869

Housing-53cm (Incl. Ref. #5, & 21)

$

$

Not available

7

Toro 65-5160

DOOR SEAL

$

$

Not available

8

Toro 65-5370

DOOR CABLE

$18.99

$

In Stock, only 2 left!

0

9

Toro 65-5480

DOOR SIDE SEAL

$

$

Not available

10

Toro 13-5889

Door-Discharge (Incl. Ref. #9, 11, 17, & 19)

$

$

Not available

11

Toro 71-8370

DECAL - DANGER

$

$

Not available

12

Toro 65-5140

HINGE CLAMP

$

$

Not available

13

Toro 65-5210

SCREW-HSH

$

$

Not available

14

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, Qty 8

0

15

Toro 65-5460

DOOR BUSHING

$3.49

$

Usually ships in 3-6 days

0

16

Toro 65-5290

HINGE PIN

$

$

Not available

17

Toro 66-0610

DOOR - BRACE

$

$

Not available

18

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

19

Toro 65-5490

DOOR END SEAL

$33.99

$

Usually ships in 3-6 days

0

20

Toro 65-5150

ACCESS COVER

$

$

Not available

21

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

22

Toro 65-5350

TRAILING SHIELD

$50.99

$

Usually ships in 3-6 days

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 76-1980

SHIELD HANGER

$

$

Not available

25

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

26

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

27

Toro 66-0540

FRONT SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

28

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

29

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

30

Toro 14-9949

Wheel & Tire Assembly (Incl. Ref. #31)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

31

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

32

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

34

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

35

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

36

Toro 66-0640

Bracket-Discharge

$

$

Not available

37

Toro 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

38

Toro 65-5010

Ramp Discharge
(Superseded to 65-5010-03)

$

$

Not available

39

Toro 71-9870

DECAL

$

$

Not available

Toro 66-0680

DECAL FRENCH REGUL.

Note: Not illustrated

$

$

Not available
