26625 B - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

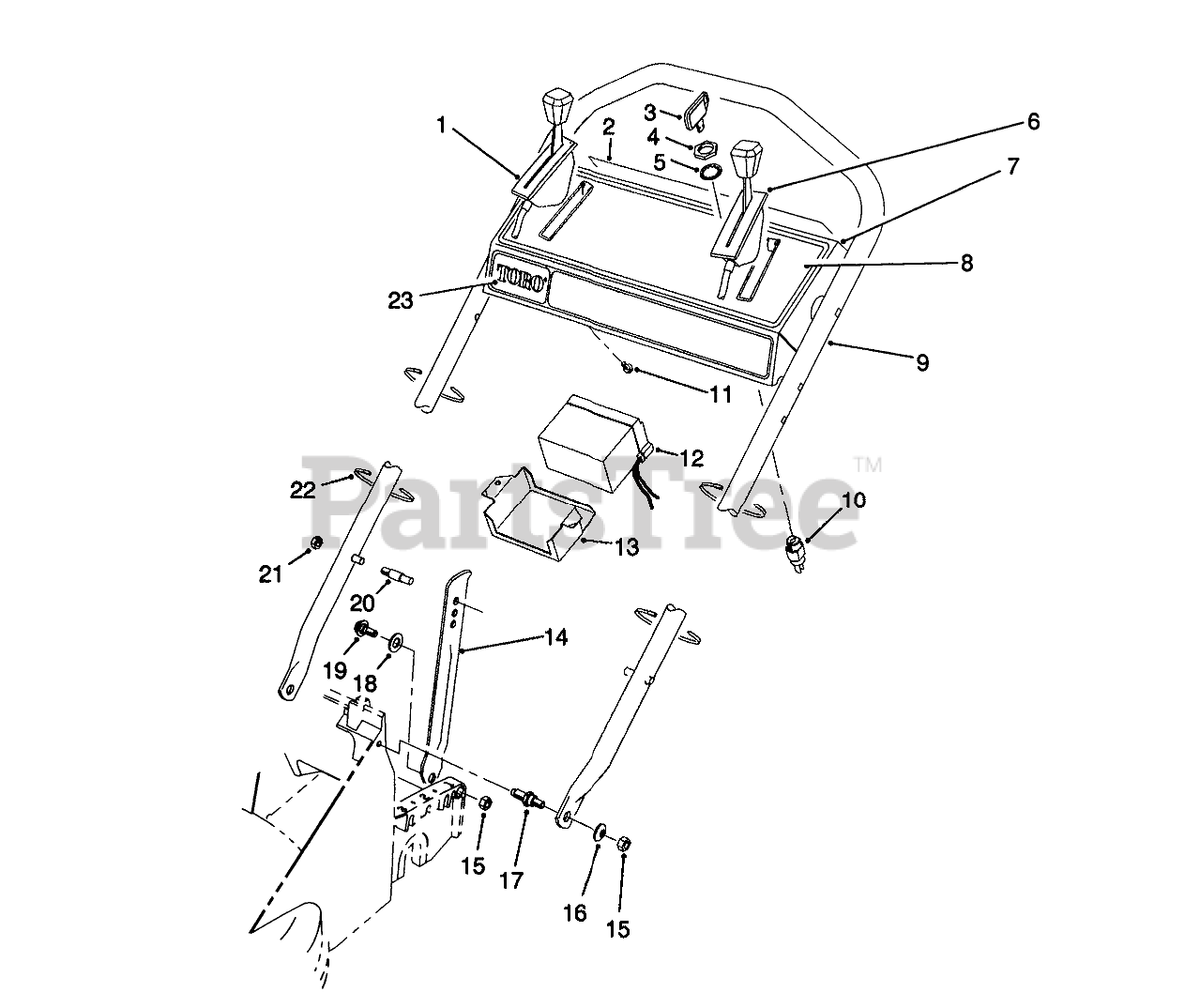

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 74-3560

GROUND SPEED CONTROL

$53.99

$

Usually ships in 3-6 days

0

Toro 76-2710

Control-Ground Speed
(Superseded to 76-2713)

$87.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

Toro 72-8030

DECAL - REAR PANEL/GER

$

$

Not available

3

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

6

Toro 66-0230

ControI-Throttle Bend Type #2 Sheath Lg. 44-3/4" Wire Lg. 2-1/2"
(Superseded to 66-0236)

$109.99

$

Usually ships in 3-6 days

0

7

Toro 13-5859

Panel-Control (Incl. Ref. #8)

$

$

Not available

8

Toro 66-0280

DECAL - INSTRUCTION

$

$

Not available

9

Toro 66-0320

HANDLE

$

$

Not available

10

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, only 1 left!

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

13

Toro 63-8480

BATTERY RETAINER

$

$

Not available

14

Toro 65-5730

HANDLE LATCH

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

18

Toro 256-313

NYLON WASHER

$

$

Not available

19

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

20

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 65-5650

DECAL - KEY LECTRIC

$

$

Not available

Toro 49-8312

WIRE HARNESS

$101.99

$

Usually ships in 3-6 days

0

Toro 22-4710

Charger
(Superseded to 98-2391)

$60.99

$

Usually ships in 3-6 days

0
