26624 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) STARTER MOTOR ASSEMBLY Parts Diagram

Walk-Behind Mower

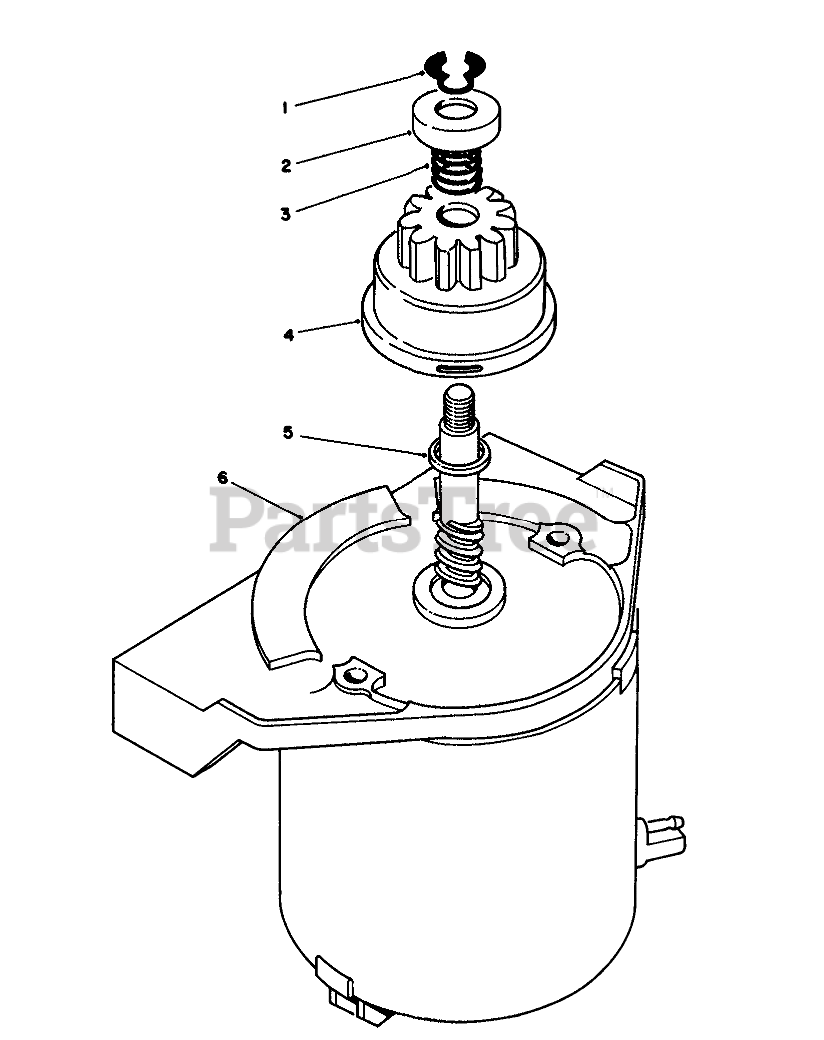

STARTER MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

2

Toro 49-2170

PINION STOP

$10.99

$

In Stock, only 1 left!

0

3

Toro 44-0500

COMPRESSION SPRING

$

$

Not available

4

Toro 43-4370

PINION ASM

$104.99

$

Usually ships in 3-6 days

0

5

Toro 23-9591

SPACER

$

$

Not available

6

Toro 53-4460

END FRAME ASSY, MOTOR

$109.99

$

Usually ships in 3-6 days

0

Toro 53-4500

Starter Motor Assembly (Incl. Ref. #1-6)

$

$

Not available
