26622 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) CARBURETOR ASSEMBLY (ENGINE MODEL NO. VM140) Parts Diagram

Walk-Behind Mower

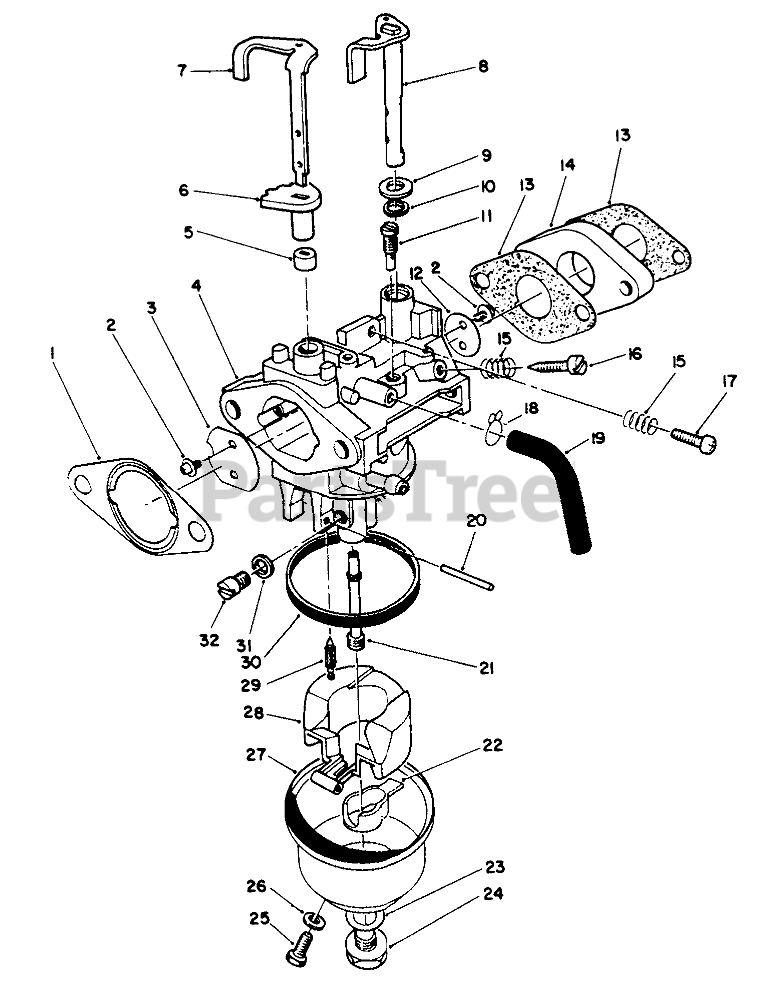

CARBURETOR ASSEMBLY (ENGINE MODEL NO. VM140) Parts Diagram

  • Title
1

Toro 81-4250

GASKET F/W ENGINE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 81-2720

VALVE

$

$

Not available

4

Body-Carburetor

$

$

Not available

5

Toro 81-5530

LOWER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

6

Toro 81-5520

UPPER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

7

Toro 81-5500

Shaft-Choke Valve

$

$

Currently unavailable

8

Toro 81-2920

SHAFT

$

$

Not available

9

Toro 81-4280

WASHER

$

$

Not available

10

Toro 81-4290

Seal-Throttle Shaft
(Superseded to 81-2530)

$8.99

$

Usually ships in 3-6 days

0

11

Toro 81-5620

JET - PILOT

$

$

Not available

12

Toro 81-2940

VALVE

$

$

Not available

13

Toro 81-5560

GASKET INTAKE

$7.49

$

In Stock, only 1 left!

0

14

Toro 81-5570

INSULATOR - CARB.

$

$

Not available

15

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

16

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

17

Toro 50-0250

SCREW

$

$

Not available

18

Toro 81-4300

CLAMP

$

$

Not available

19

$

$

Not available

20

Toro 81-5600

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

21

Toro 81-5630

NOZZLE - MAIN

$

$

Not available

22

Toro 81-4940

SPACER

$

$

Not available

23

Toro 81-2650

GASKET

$6.99

$

Usually ships in 3-6 days

0

24

Toro 81-2660

SCREW

$29.99

$

In Stock, only 2 left!

0

25

Toro 81-2670

SCREW

$11.99

$

Usually ships in 3-6 days

0

26

Toro 81-2680

GASKET

$6.49

$

In Stock, only 3 left!

0

27

$125.99

$

In Stock, only 1 left!

0

28

Toro 81-4920

FLOAT

$54.99

$

Usually ships in 3-6 days

0

29

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$45.99

$

In Stock, only 2 left!

0

30

Toro 81-2630

FLOAT BOWL GASKET

$12.99

$

Usually ships in 3-6 days

0

31

Toro 81-4350

SPACER

$

$

Not available

32

Toro 81-5610

JET - MAIN

$

$

Not available

Toro 81-5640

JET-HIGH ALTITUDE MAIN

$

$

Not available

Toro 81-4270

Choke Shaft Assembly (Incl. Ref. #5-7)

$

$

Not available

Toro 81-5650

Carburetor Repair Kit (Incl. Ref. #1, 13, 23, 26, 29 & 30)

$134.99

$

Usually ships in 3-6 days

0

Toro 81-5590

Carburetor Assembly (Incl. Ref #2-32)

$633.99

$

Usually ships in 3-6 days

0
